Revolution Road Alloy Wheels for Classic and Specialist Cars. Classic Style since 1969

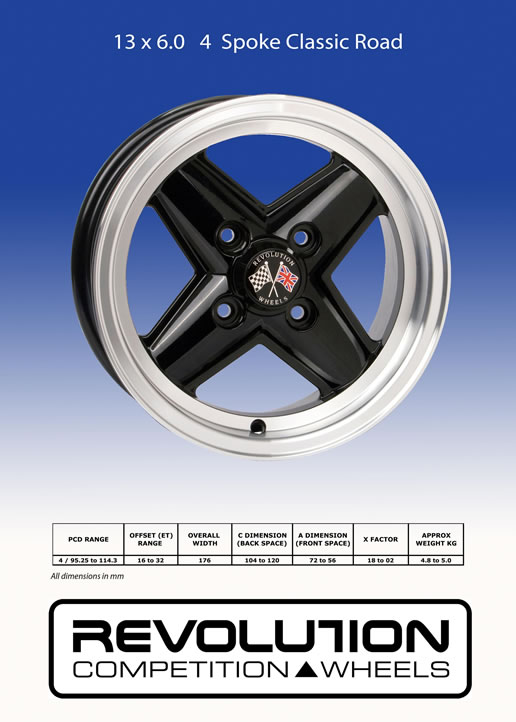

Revolution 4-spoke Alloy

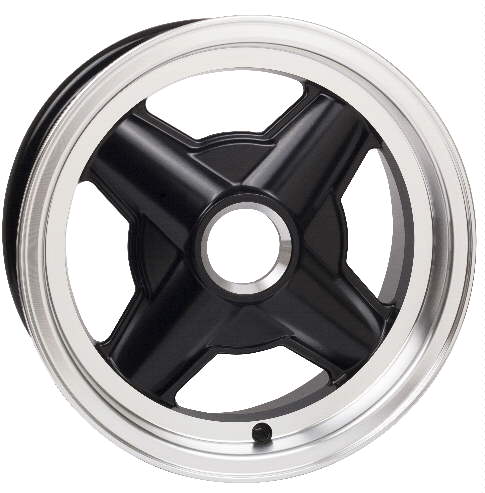

4-SPOKE Alloy

Black with Diamond Hilite rim

Size PCD Offset
Range
mm
Backspace
mm
Approx.
Weight
kgs
Price set 4
(road use)
(incl. vat)
6×10″ Mini 4×4″ +05 91 3.5 £260
5×12″ Mini 4×4″ +16 92 4.8 £270
6×12″ Mini 4×4″ +03 92 5.0 £280
5½x13″ Triumph
4×3¾”
+25 107 4.5 £390
6×13″ 4 hole
3¾” > 4½”
+16 > +32 104 > 120 5.0/4.8 £430
7×13″ Mini 4×4″ +13 113 5.9 £470
5×12″ 4 hole
3¾” > 4½”
00 > +20 100 > 120 6.0/5.8 £480
8×13″ 4 hole 3¾” > 4½” -06 > +20 108 > 134 6.3/6.1 £500
9×13″ 4 hole
3¾” > 4½”
-12 > +13 114 > 139 6.6/6.4 £560
rev4spk01

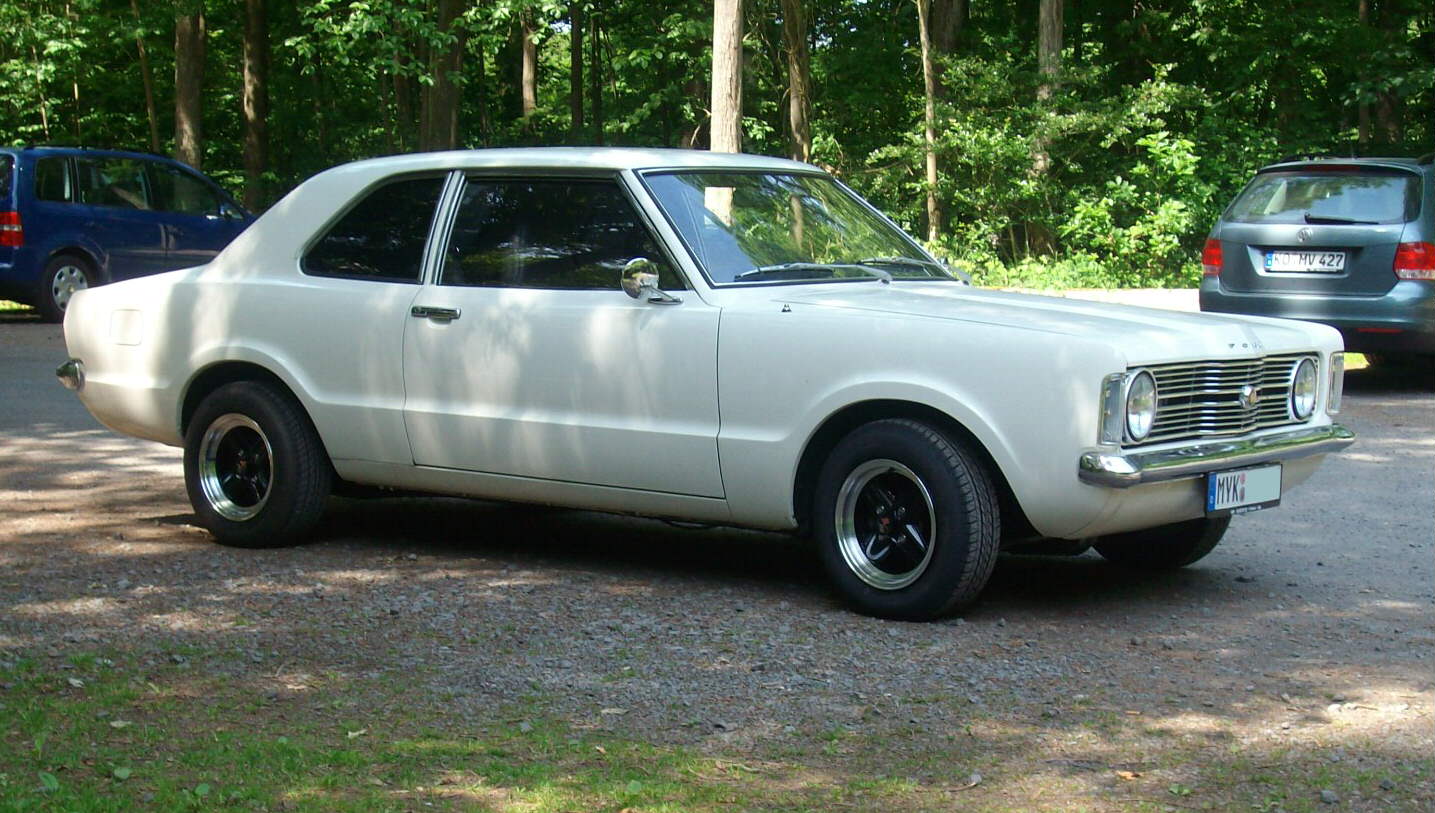

rev4spk02-2
rev4spk03-1

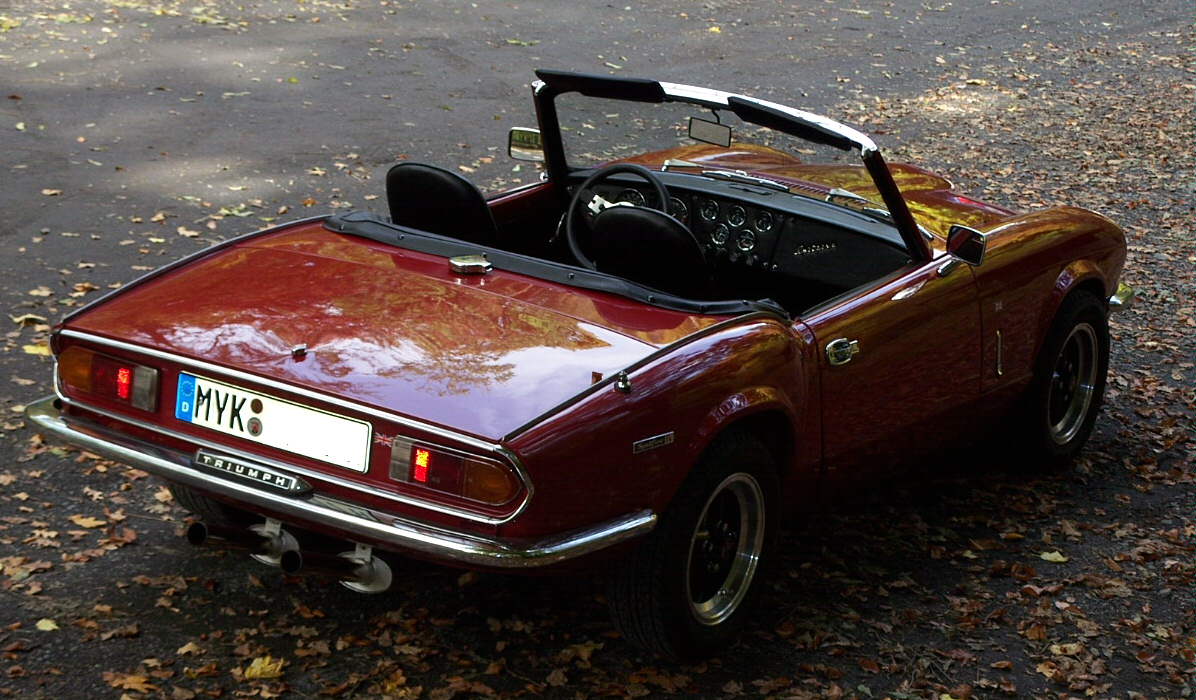

rev4spk04-1

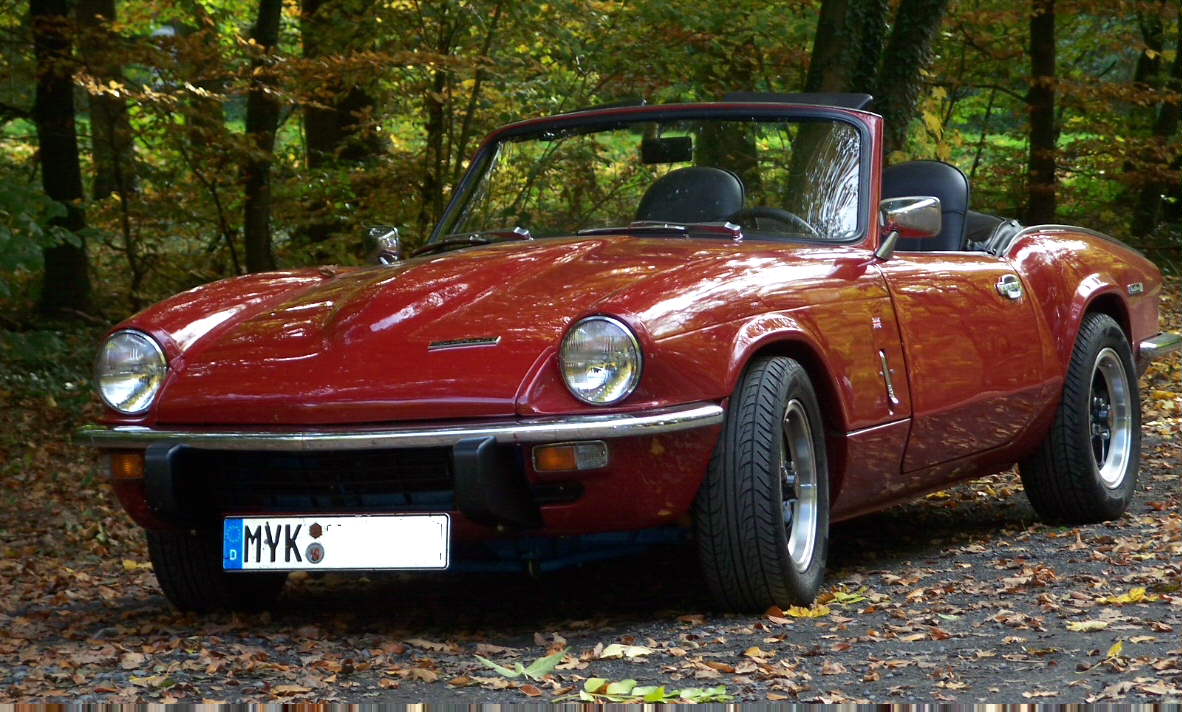

rev4spk05
rev4spk06-2
rev4spk07
rev4spk08

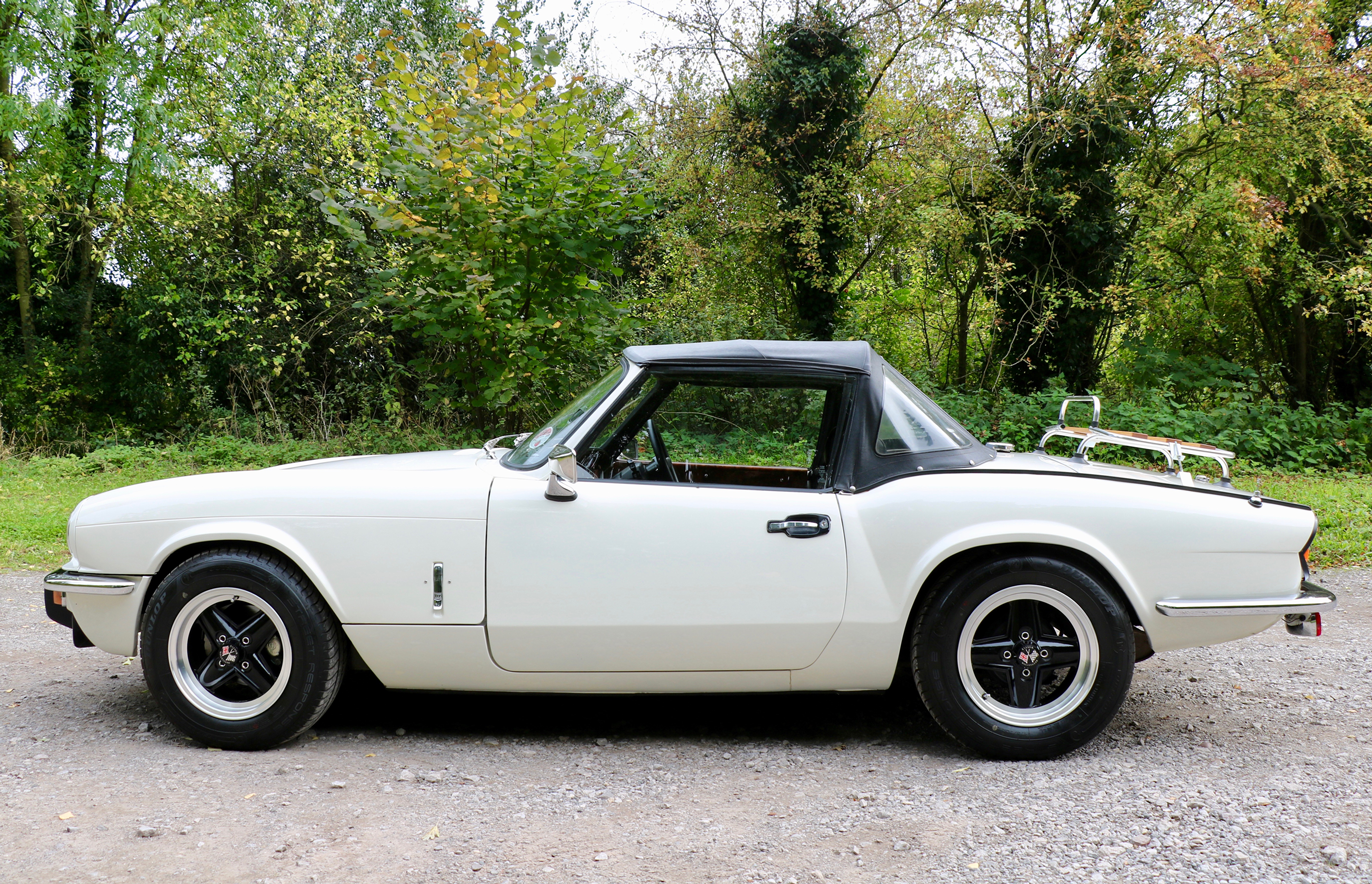

revospitfire2
revospitfire1-1
revo4spk6x13impa
revo4spk6x13impb

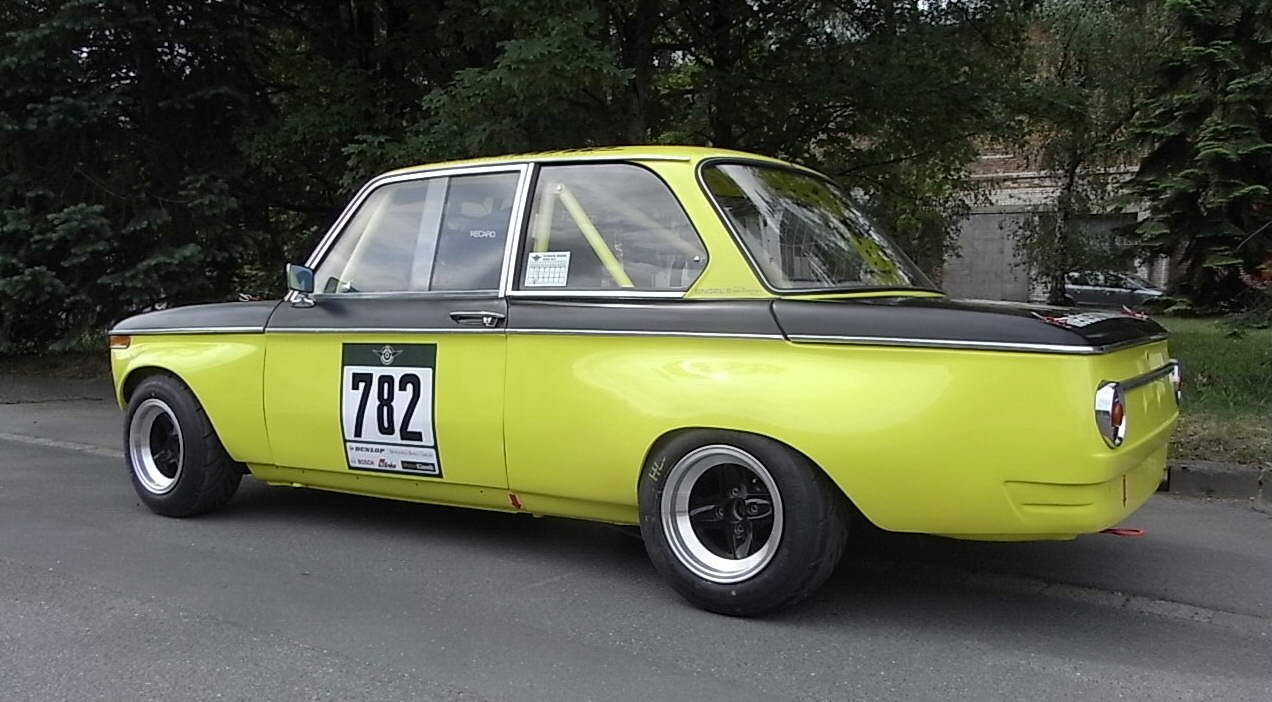

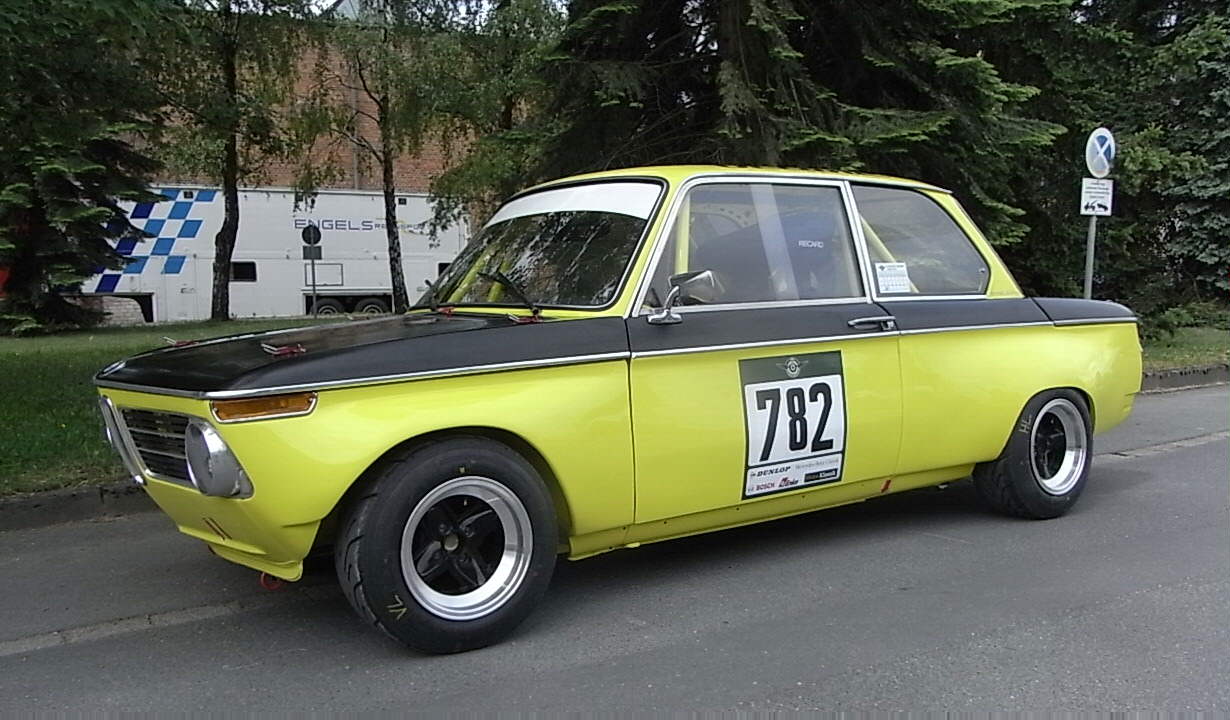

revo9x13bmw2002a
revo9x13bmw2002b
revo4spk6x13impc
revo4spk6x13impd

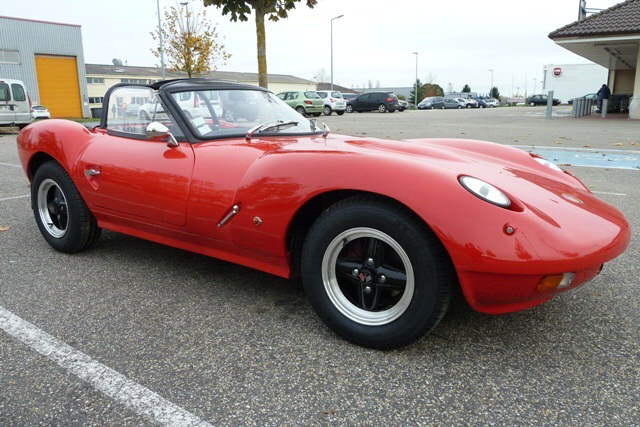

revo6x13ginetta

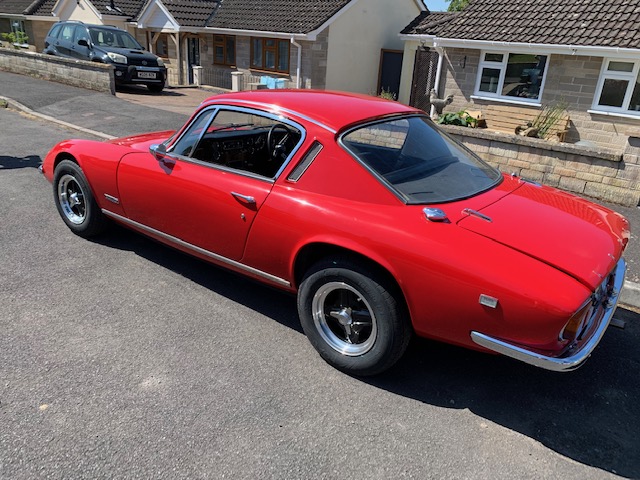

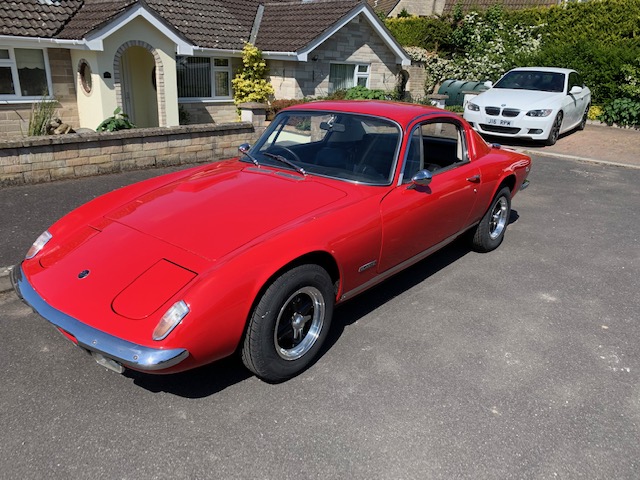

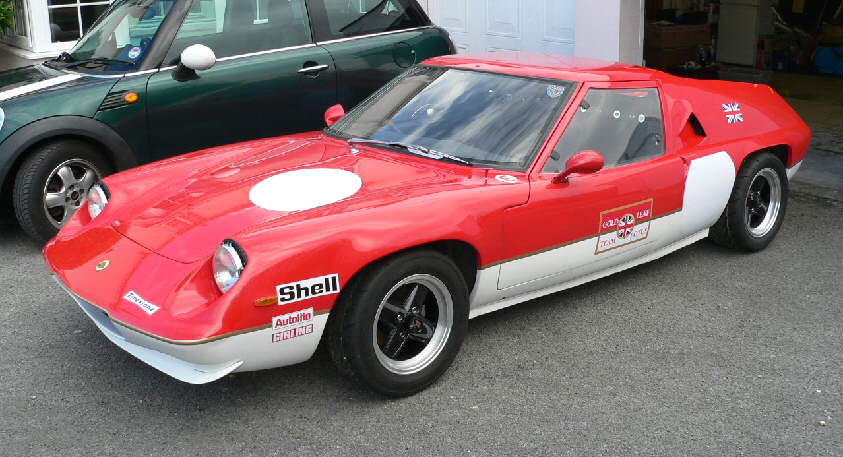

revo6&713lotus1

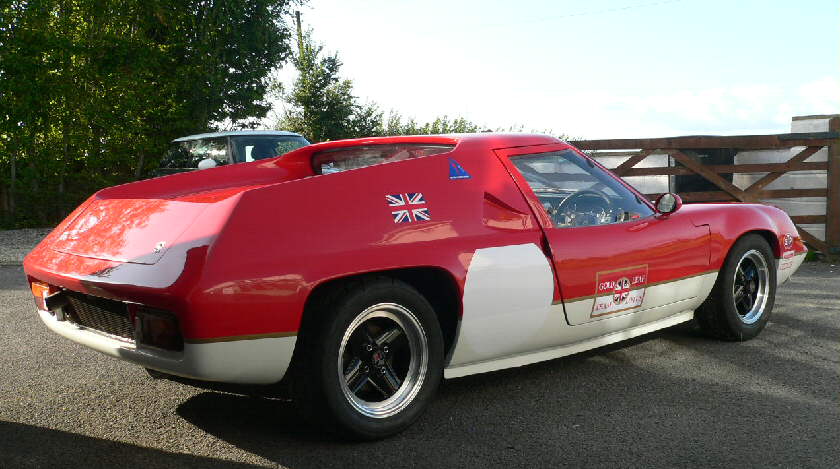

revo6&713lotus2

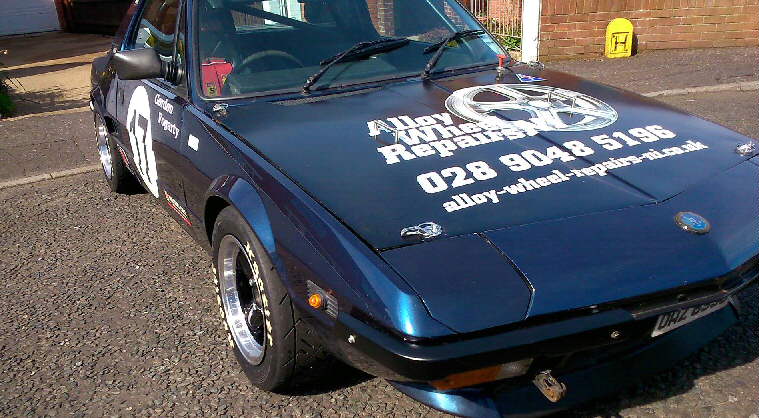

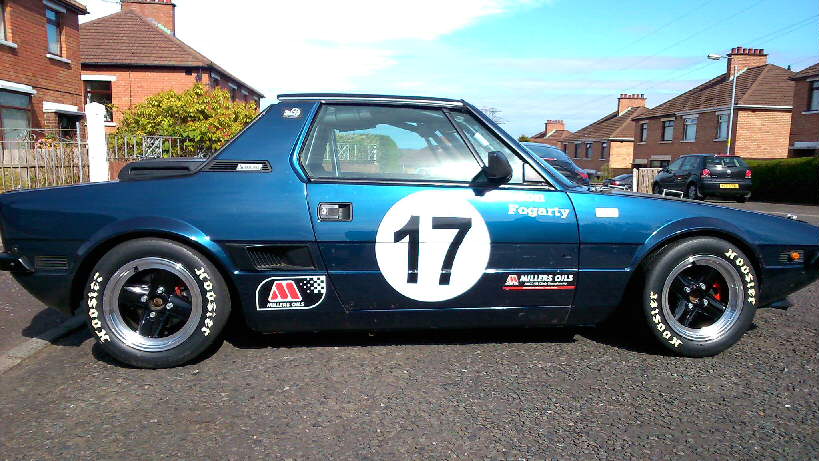

revobhr713fiat1

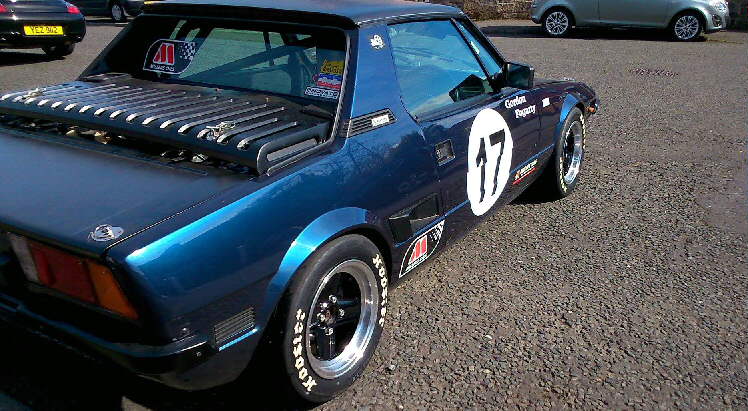

revobhr713fiat2
revobhr713fiat3-1
See Lotus Europa in Japan
6×13″ E16 and 7×13″ E10
***



revo5spk-1



5-SPOKE Alloy

Black with Diamond Hilite rim

Size PCD Offset
Range
mm
Backspace
mm
Approx.
Weight
kgs
Price set 4
(road use)
(incl. vat)
5½x15″ MGB 4×4½” +16 99 7.8 £520
6×15″ TR4 /6 /250
4×4½”
(sleeve nuts)
+08 95 8.4 £530
6×15″ 4 or 5 hole
3¾” > 130mm
+02 > +22 89 > 109 8.4/7.8 £530
7×15″ 4 or 5 hole
3¾” > 130mm
00 > +25 100 > 125 8.6/8.0 £550
8×15″ 4 or 5 hole
3¾” > 130mm
-06 > +20 106 > 132 9.4/8.5 £570



rev5spk01
rev5spk02
rev5spk03
rev5spk04
revo8x15nissan280
revo7x15talbotsunbeamlotusa
revo7x15talbotsunbeamlotusb
revo7x15talbotsunbeamlotusc
revo7x15sunbeama
revo7x15sunbeamb
revo6x15tvr3000
revo615e16stag
tiger615revo1
tiger615revo2
***
***
***
***

splinedcentrealloy

scpminatorspline

SPLINE CENTRE ALLOYS

to fit MG, Triumph, Sunbeam & Austin Healey



Size Approx. Weight (kgs) Price set of 4 (incl. vat)
5×13″ 42mm spline 8kgs £680
5½x14″ 42mm spline 9kgs £760
5½x15″ 42mm  spline 10kgs £800



**

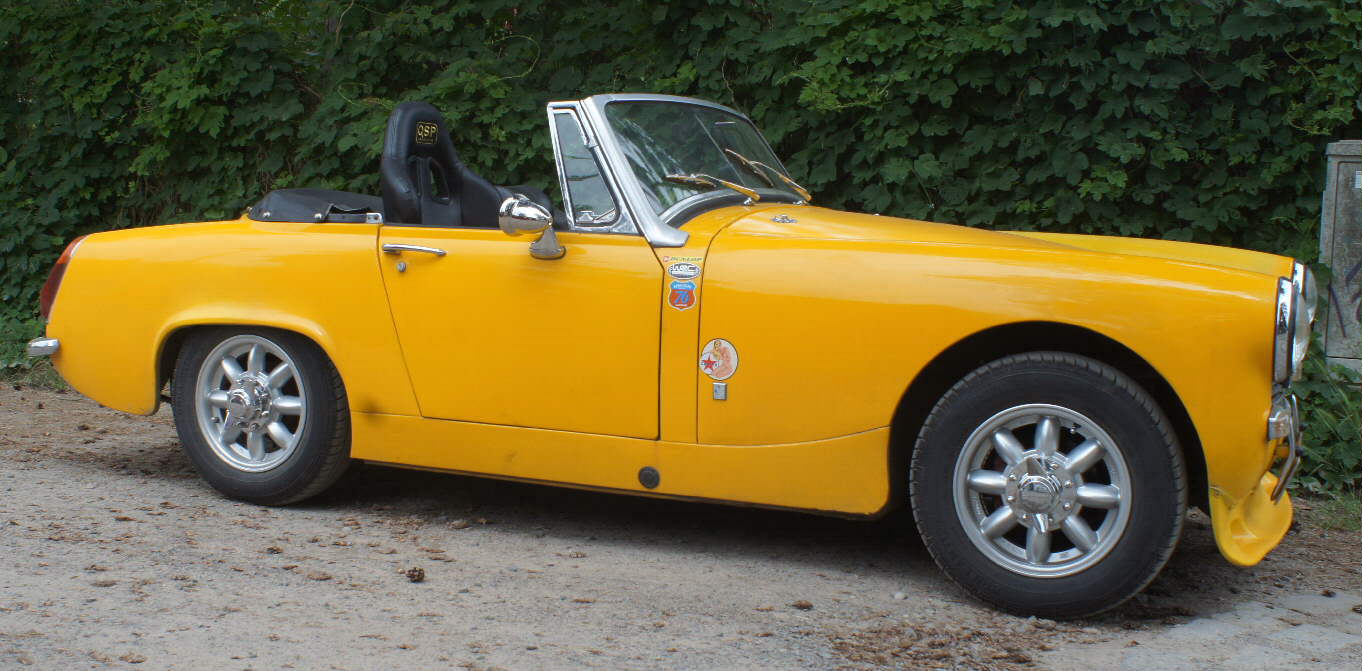

minators13splinemidget
minator14splinea

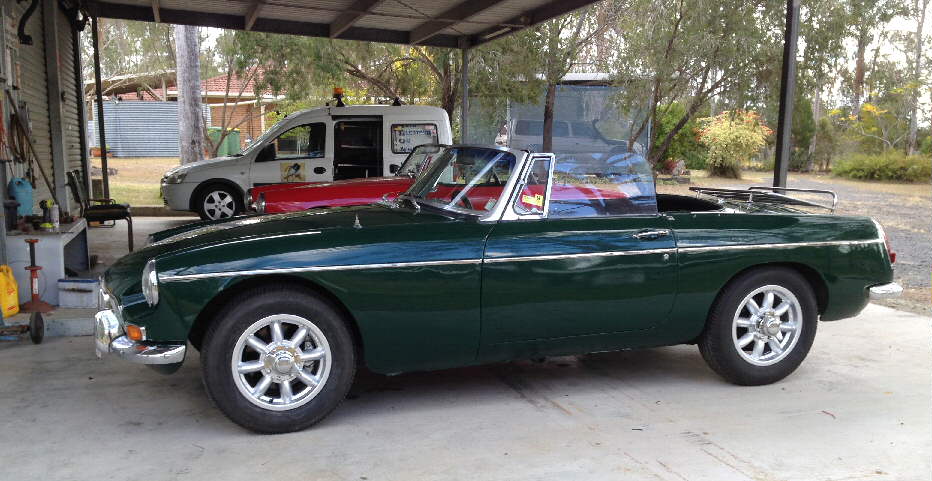

minator14splineb

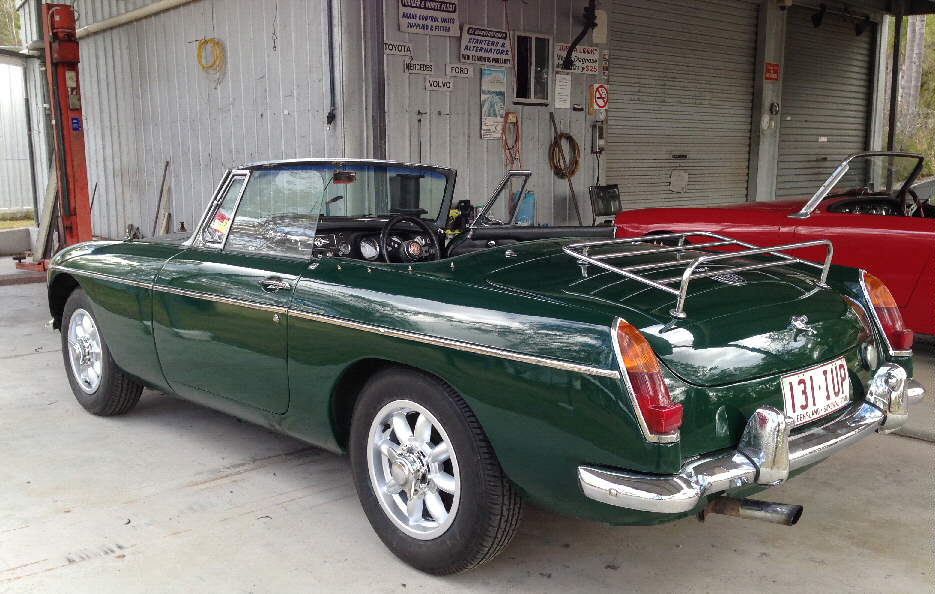

minator14splinec
**



revo8spk7156x15revolution8spokeroadmattblack-chromecaprevo8spk815

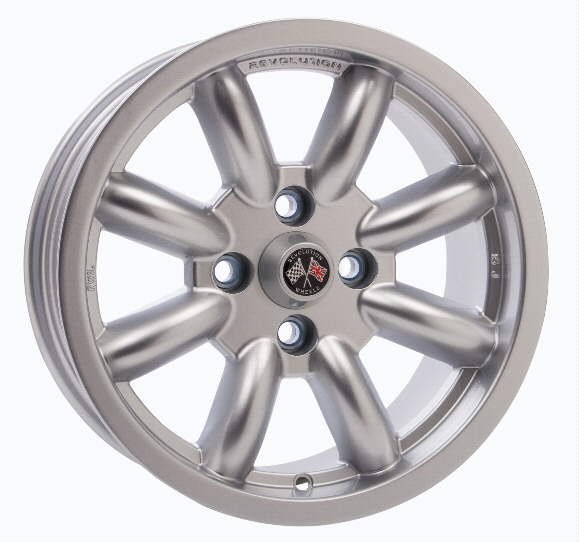

Minator 8-SPOKE Alloy

Finishes available: Matt Black and Full Silver
(10″ & 12″ have
Diamond Hilite rim)

These wheels are available
in 4 or 5 hole fitment



Size PCD Offset Range mm Backspace mm Approx.
Weight
kgs
Price set 4
(road use)
(incl. vat)
5×10″ 4×4″ +19 94 3.4 £240
6×10″ 4×4″ +06 93 3.6 £245
5×12″ 4×4″ +28 102 5.0 £245
5×13″ 4×3¾” or 4×4″ +20 94 5.6 £350
5½x13″ 4×3¾” or 4×4″ +25 106 5.9 £360
6×13″ 4 hole
3¾” > 130
+16 > +23 105 > 112 5.4/5.2 £440
7×13″ 4 hole
3¾” > 130
00 101 5.6 £460
8×13″ 4 hole
3¾” > 130
-12 > -06 101 > 107 7.6/7.4 £480
9×13″ 4 hole
3¾” > 130
-24 > -12 102 > 114 8.3/8.1 £530
5½x14″ 4×4″ or 4×4½” +22 103 7.1 £410
6×14″ 4×3¾” or 4×4½” +22 109 7.3 £420
5×15″ 4 or 5 hole
3¾” > 130
-06 > +24 69 > 99 8.2/7.6 £525
5×15″ 5×127
Rover P6
Austin Healey
(sleeve nuts)
+24 99 7.6 £525
5½x15″ 4 or 5 hole
3¾” to 130
00 > +30 81 > 111 8.4/7.8 £530
5½x15″ 4×114
TR4-6, TR250
(sleeve nuts)
+15 96 8.1 £530
5½x15″ 4×114
MGB
+20 101 8.0 £530
5½x15″ 5×108
P1800 70>
+14 95 8.1 £530
5½x15″ 5×114
Amazon &
P1800 >70
+14 95 8.1 £530
5½x15″ 5×121
Jaguar, MGC
+22 103 7.9 £530
5½x15″ 5×127
Austin Healey
+15 96 8.1 £530
6×15″ 4 or 5 hole
3¾” > 130
+07 > +37 95 > 125 8.6/8.0 £540
6×15″ 4×3¾”
TR7 TR8
+22 110 8.4 £540
6×15″
Matt Black
4×100 VW
Opel Mazda
+35 123 8.0 £540
6×15″ 4×108
Alfa GTV
+28 116 8.3 £540
6×15″ 4×114
Datsun
240/260Z
+15 103 8.5 £540
6×15″ 4×114
Saab 99
+37 125 8.0 £540
6×15″ 5×130
Porsche 911
(narrow body)
956
+36 124 8.0 £540
7×15″ 4 or 5 hole
3¾” > 130
00 > +30 101 > 131 9.3/8.1 £560
7×15″
Matt Black
4×100 VW
Opel Mazda
+30 131 8.4 £560
7×15″ 4×114
Datsun
240/260Z
+10 111 8.6 £560
7×15″ 5×114
Ford
Mustang
+08 109 8.6 £560
8×15″ 4 or 5 hole
3¾” > 130
-12 > +20 101 > 133 9.4/8.8 £580
8×15″
Matt Black
4×100 VW
Opel Mazda
00 113 9.4 £580
8×15″ 5×114
Ford
Mustang
00 113 9.4 £580
9×15″
Matt Black
4×100 VW
Opel Mazda
-12 115 10 £640
scp8spoke14morris1000a-1 scp8spoke14morris1000b scp14minor scpminator14minor minator5515rover1

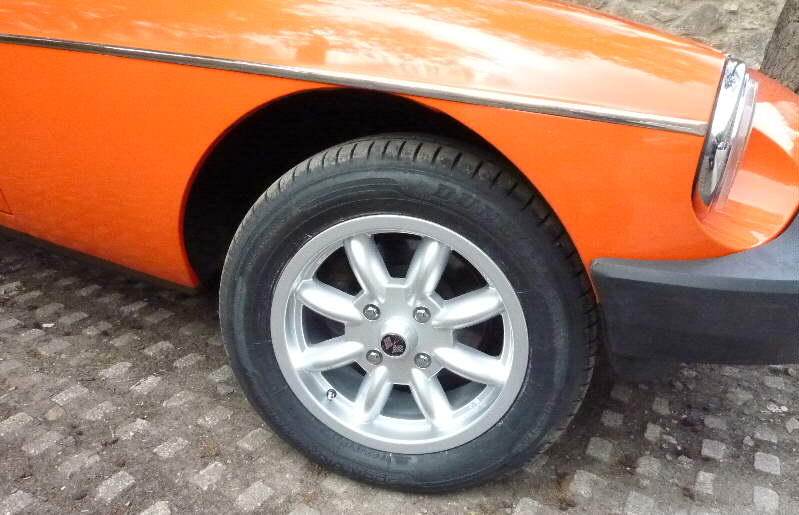

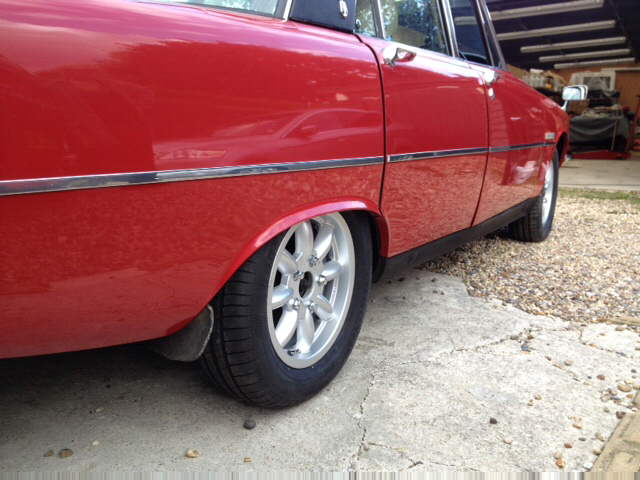

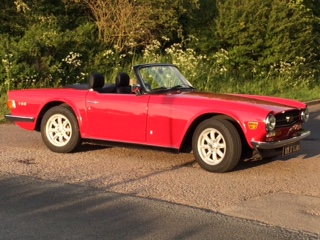

 minator5515rover1  minator5515rover2  minator5515rover3  tr65515scpminator  mgb5515rev8spka

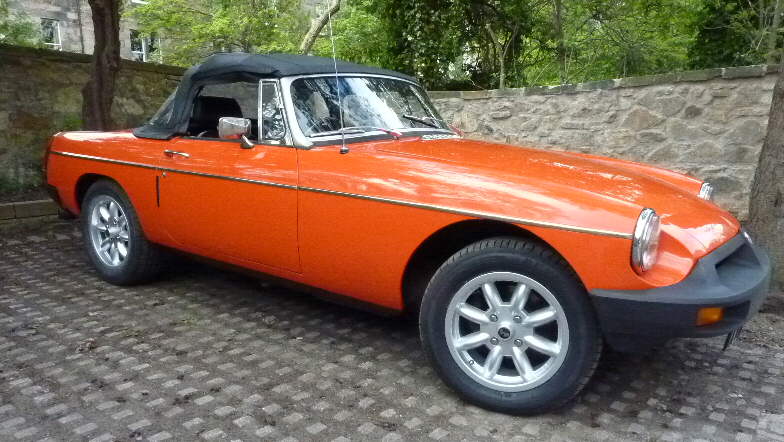

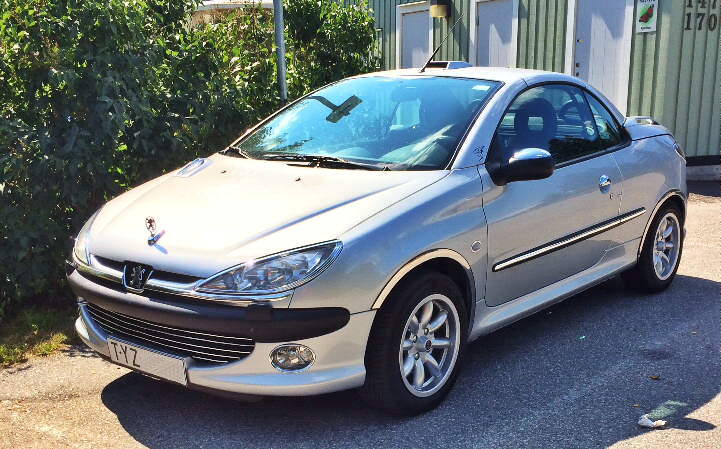

 mgb5515rev8spkb  sunbeam5515revo8spoke  minatorscp715pug206cc  minator715scppug206cc  minator715scppeug206cc

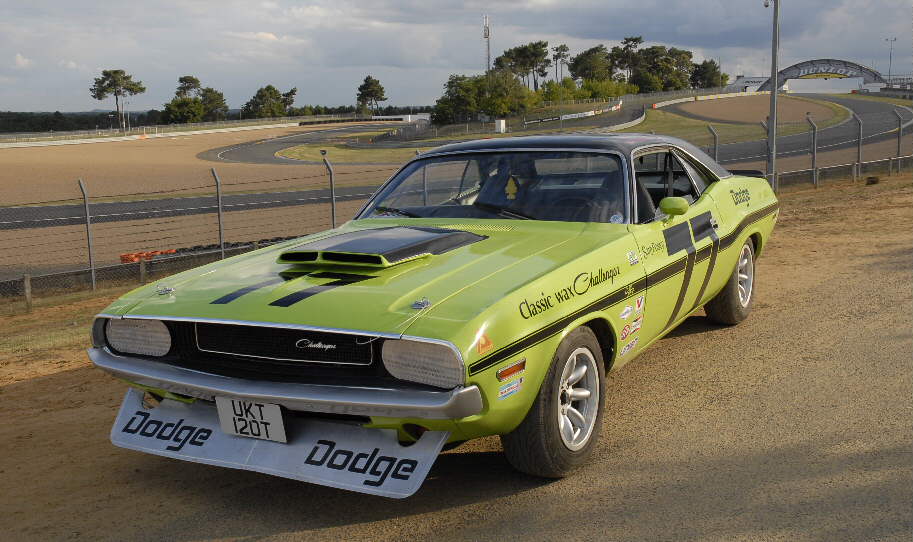

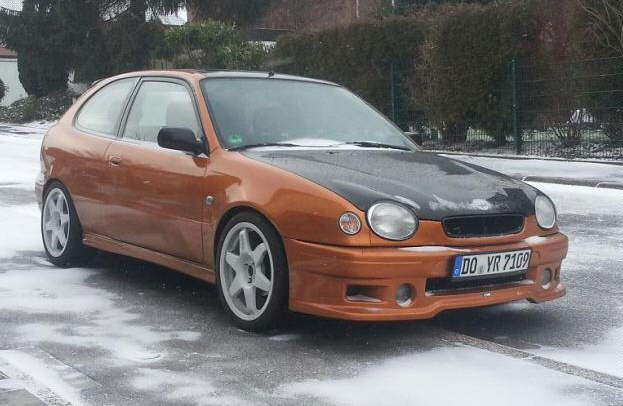

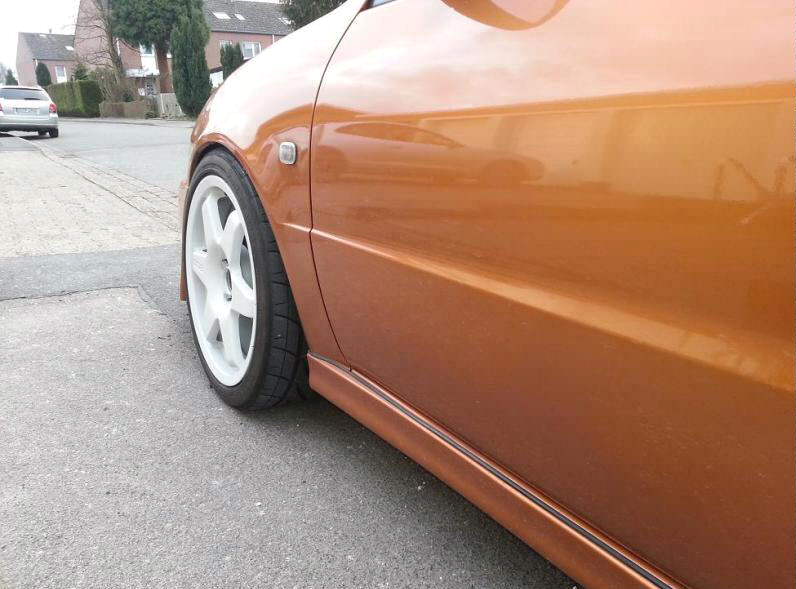

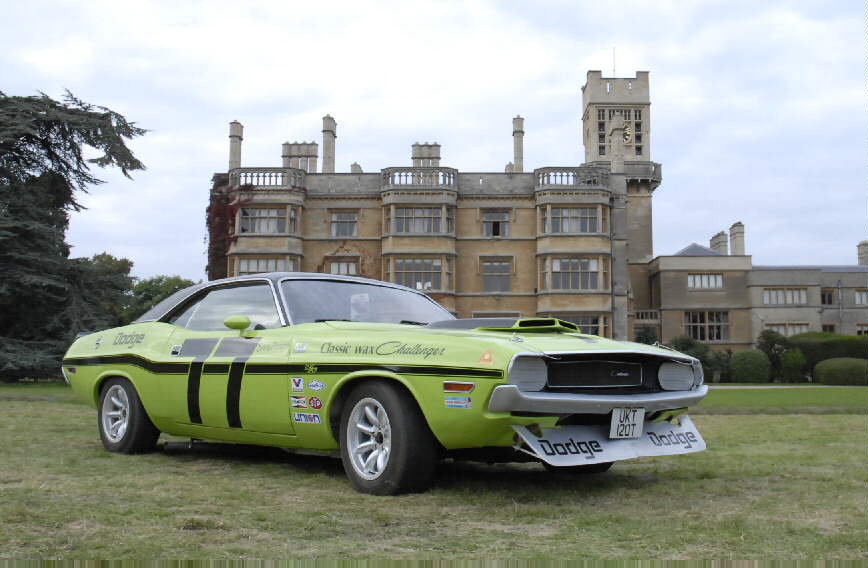

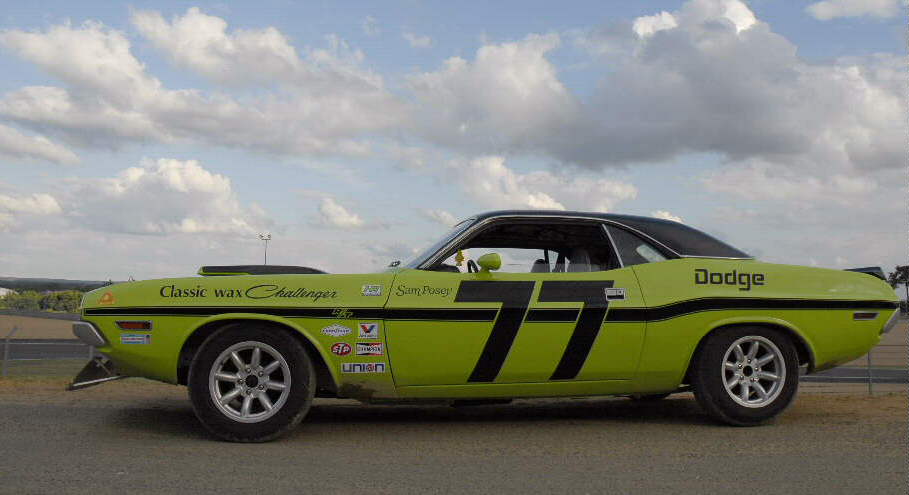

 minator815dodgechallenger2  minator815dodgechallenger1  minator815dodgechallenger3  revomillen17toyotacorolla3  revomillen17toyotacorolla2
revomillen17toyotacorolla1-1

revo_mil

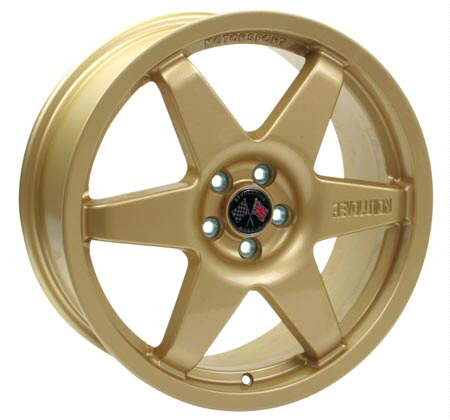

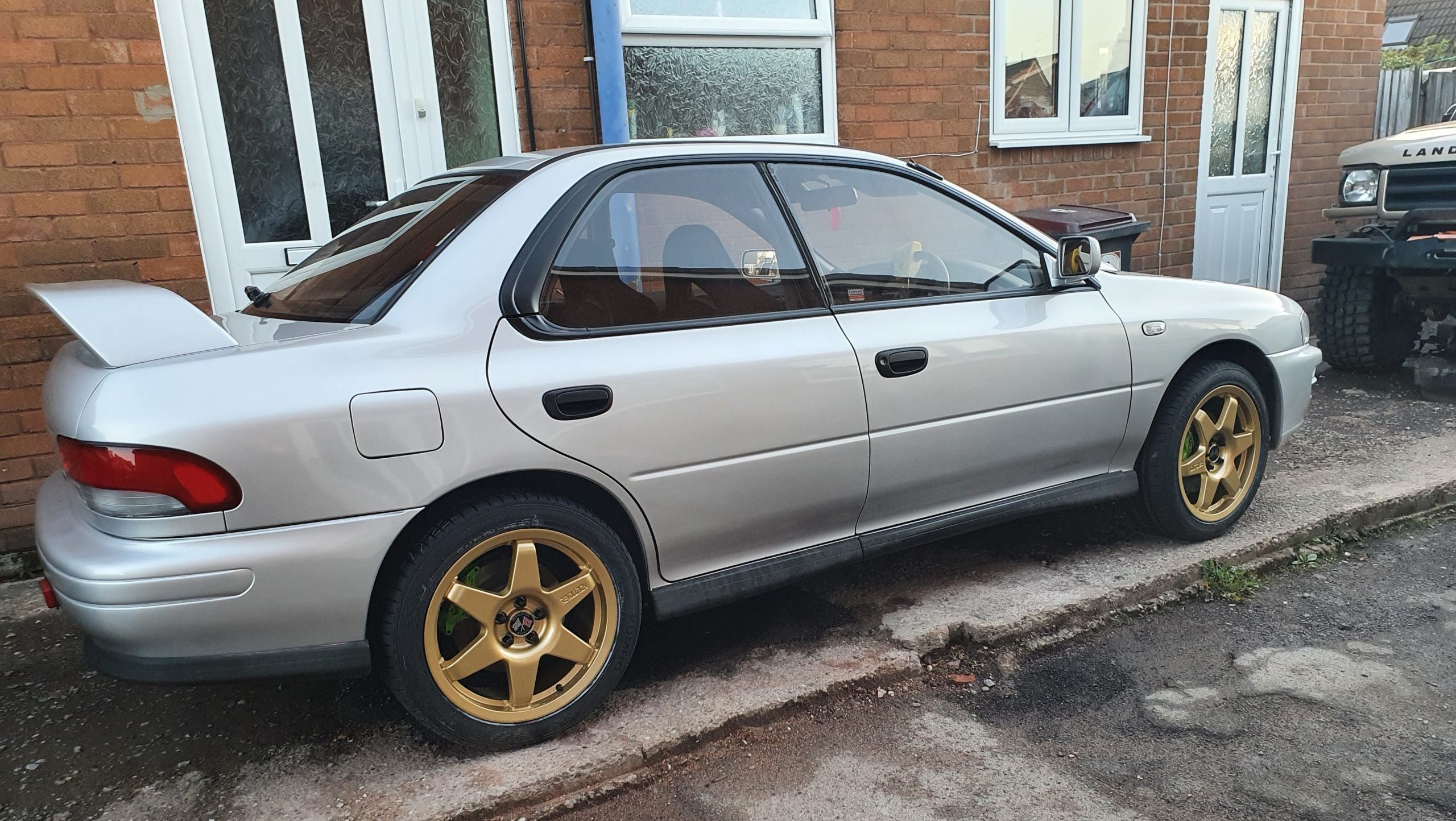

Millenium Road Alloy

Gold / White

Size PCD Offset Range mm Backspace mm Approx.
Weight
kgs
Price set 4
(road use)
(incl. vat)
7½x17″
(Gold)
5×100
Impreza >05
+48 155 10.4 £595
8×18″
(Gold)
5×100
Impreza >05
+48 161 11.6 £695
8×18″
(Gold)
5×114
Impreza 05>
+47 160 11.6 £695
8×18″
(White)
5×110
Astra VXR
+35 148 11.8 £695

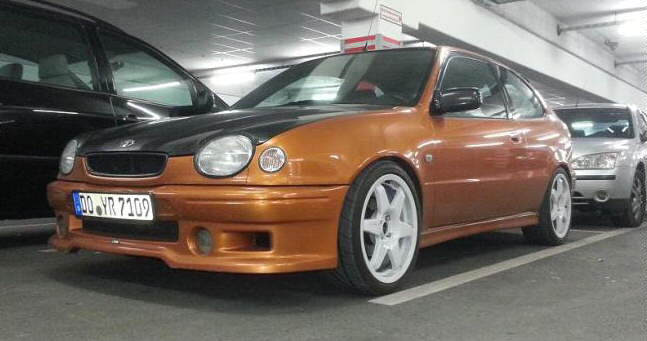

revomillen17toyotacorolla3  revomillen17toyotacorolla2 revomillen17toyotacorolla1-1

revo4spk

 4-SPOKE Alloy

RACE VERSION
(centre caps extra cost +£25)
Black with Diamond Hilite rim

Size PCD mm Offset
Range
mm
Backspace
mm
Approx.
Weight
kgs
Price set 4
(race use)
(incl. vat)
5½x13″ 4 hole
88.9 > 114.3
-17 > +13 60 > 90 4.5/4 £540
6×13″ 4 hole
88.9 > 114.3
-11 > +19 74 > 104 4.6/4.1 £550
6½x13″ 4 hole
88.9 > 114.3
-05 > 25 67 > 97 4.7/4.2 £560
7×13″ 4 hole
88.9 > 114.3
00 > +30 98 > 128 4.6/4.2 £570
8×13″ 4 hole
88.9 > 114.3
-13 > +17 97 > 127 4.8/4.4 £630
10×13″ 4 hole
88.9 > 114.3
-38 > -08 97 > 127 4.9/4.5 £700



PRICES
Prices include vat. Prices on this page are for set of 4 wheels delivered in the UK (please ask for export prices), including a set of new standard nuts or bolts. (Some specialist fixings such as sleeve nuts will be extra cost).
If you want less than 4 wheels please ask.
VEHICLE FITMENTS
The wheels shown are available in a variety of fitments to suit different vehicles – 4 or 5 hole stud patterns and different offsets.See my help page for technical details of PCD and offsets. Note that with NEGATIVE offsets the mounting hub of the wheel protrudes towards the back rim, with POSITIVE offsets the mounting hub is towards the outer face (as most modern cars)WHEN ORDERING please specify PCD, offset, centre bore, nut/bolt type and whether the wheel is required for Road or Race or Rally use.

Revolution Alloy Wheels and tyres for Austin Healey Sprite
Revolution Alloy Wheels and tyres for Austin Healey 3000
Revolution Alloy Wheels and tyres for classic Mini
Revolution Alloy Wheels and tyres for BMW 2002
Revolution Alloy Wheels and tyres for Caterham
Revolution Alloy Wheels and tyres for Daihatsu Hi-Jet
Revolution Alloy Wheels and tyres for Fiat 126
Revolution Alloy Wheels and tyres for Fiat 500
Revolution Alloy Wheels and tyres for Ford Escort
Revolution Alloy Wheels and tyres for Ford Cortina (& Lotus)
Revolution Alloy Wheels and tyres for Ginetta
Revolution Alloy Wheels and tyres for Hillman Imp
Revolution Alloy Wheels and tyres for Jaguar E-type
Revolution Alloy Wheels and tyres for Morris Minor
Revolution Alloy Wheels and tyres for Morris Marina
Revolution Alloy Wheels and tyres for MG Midget
Revolution Alloy Wheels and tyres for MGA & MGB
Revolution Alloy Wheels and tyres for MG RV8
Revolution Alloy Wheels and tyres for Opel Manta
Revolution Alloy Wheels and tyres for Reliant Scimitar
Revolution Alloy Wheels and tyres for Rover P5 & P6
Revolution Alloy Wheels and tyres for Sunbeam Tiger
Revolution Alloy Wheels and tyres for Sunbeam Alpine
Revolution Alloy Wheels and tyres for Sunbeam Rapier
Revolution Alloy Wheels and tyres for Triumph Dolomite
Revolution Alloy Wheels and tyres for Triumph Spitfire
Revolution Alloy Wheels and tyres for Triumph GT6
Revolution Alloy Wheels and tyres for Triumph Herald
Revolution Alloy Wheels and tyres for Triumph Vitesse
Revolution Alloy Wheels and tyres for Triumph Stag
Revolution Alloy Wheels and tyres for Triumph 2000
Revolution Alloy Wheels and tyres for Triumph TR2, TR3, TR4, TR5, TR6, TR7, TR8

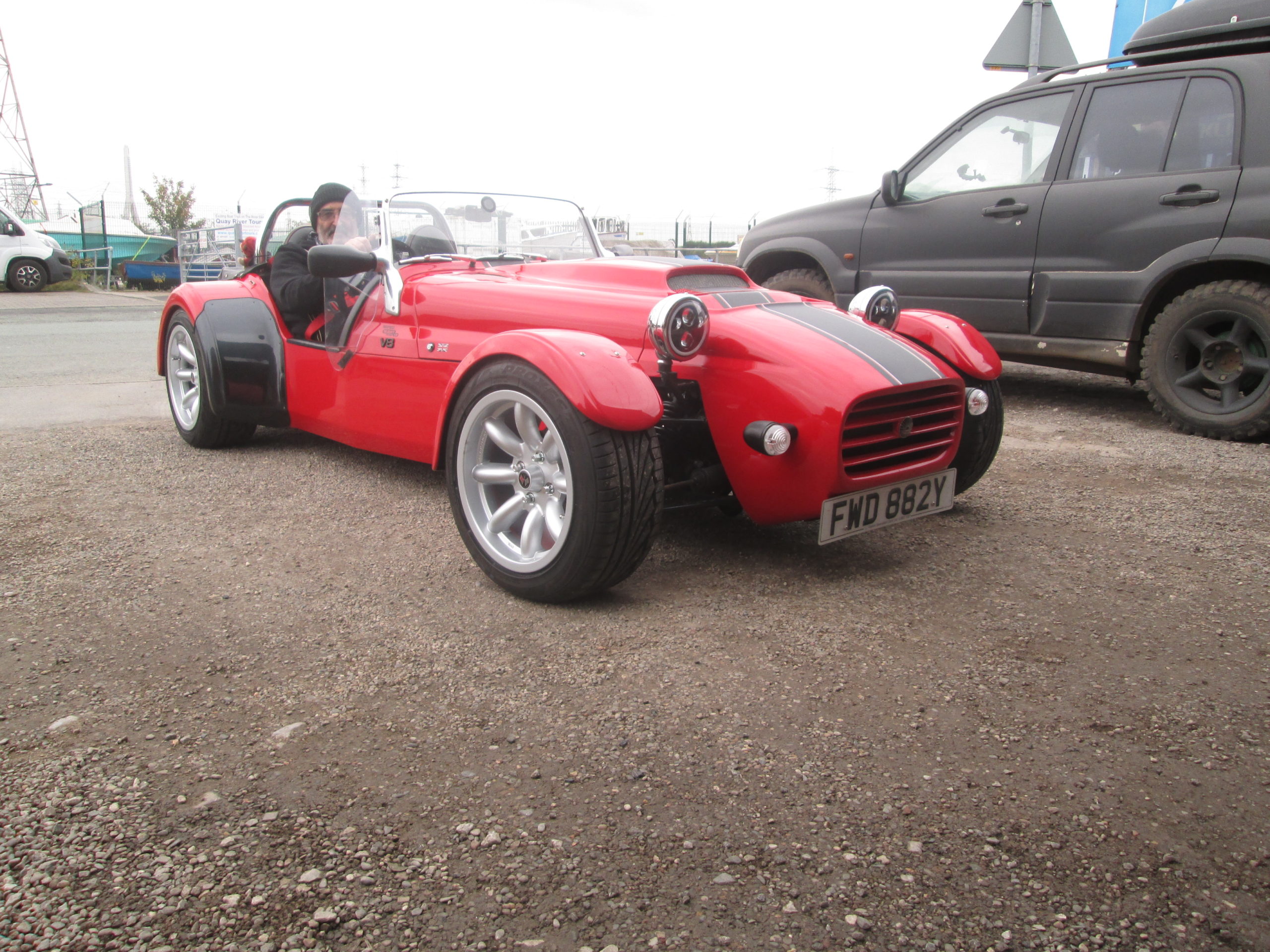

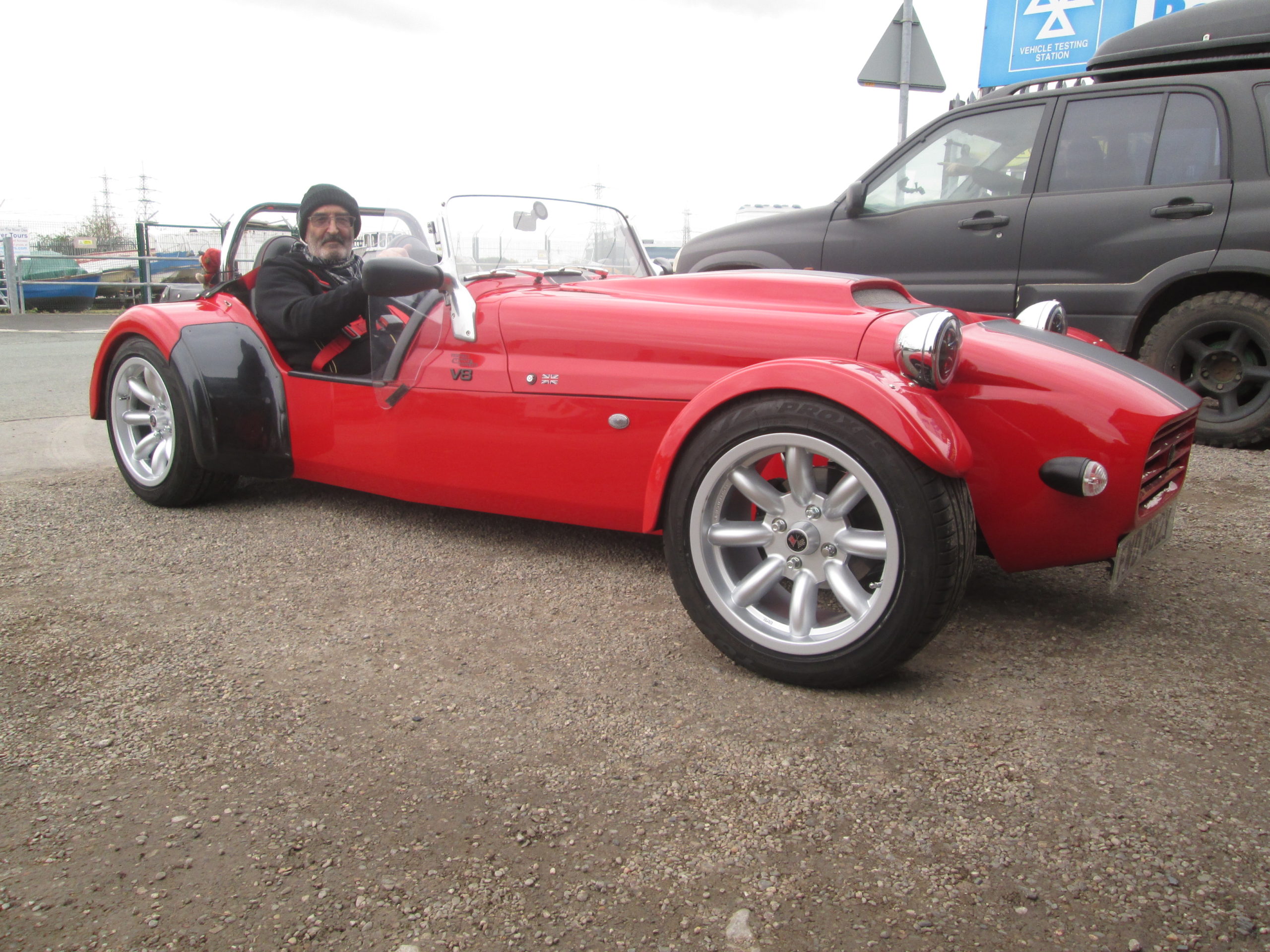

Revolution Alloy Wheels and tyres for Westfield
