Revolution Rally Alloy Wheels for Classic and Specialist Cars

also see … Minilite | Ferrari | BMW


Classic style since 1969

4-SPOKE

Fully painted white
(centre caps extra cost +£25)

Size PCD Offset
Range
mm
Backspace
mm
Approx.
Weight
kgs
Price set 4
(rally use)
(incl. vat)
7×13″ 4 hole
3¾” > 4½”
00 > +20 100 > 120 6.0/5.8 £490
7×13″ 4×108
(Gp4 Escort)
00 100 6.0 £480
8×13″ 4 hole
3¾” > 4½”
-06 > +20 108 > 134 6.3/6.1 £500
8×13″ 4×108
(Gp4 fit.)
00 112 6.2 £490
9×13″ 4 hole
3¾” > 4½”
-12 > +13 114 > 139 6.4/6.6 £550

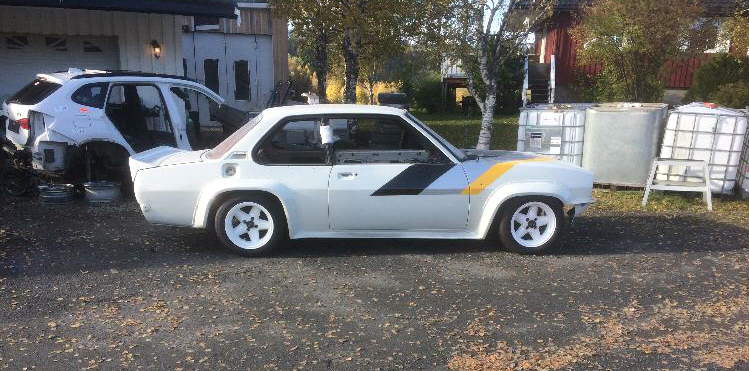

rev5spwh5-SPOKE

Fully painted white
(centre caps extra cost +£25)

Size PCD Offset
Range
mm
Backspace
mm
Approx.
Weight
kgs
Price set 4
(rally use)
(incl. vat)
6×15″ 4 or 5 hole
3¾” > 120mm
02 > +22 89 > 109 8.4/7.8 £550
6×15″ 4×108
(Gp4 Escort)
15 102 8 £540
7×15″ 4 or 5 hole
3¾” > 120mm
00 > +25 100 > 125 8.6/8.0 £570
7×15″ 4×108
(Gp4 Escort)
00 100 8.6 £560
8×15″ 4 or 5 hole
3¾” > 120mm
-06 > +20 106 > 132 9.4/8.5 £590
8×15″ 4×108
(Gp4 Escort)
00 112 9.2 £580
9×15″ 4 or 5 hole
3¾” > 120mm
-12 > +15 113 > 140 9.9/9.3 £640
9×15″ 4×108
(Gp4 Escort)
-12 113 9.9 £630

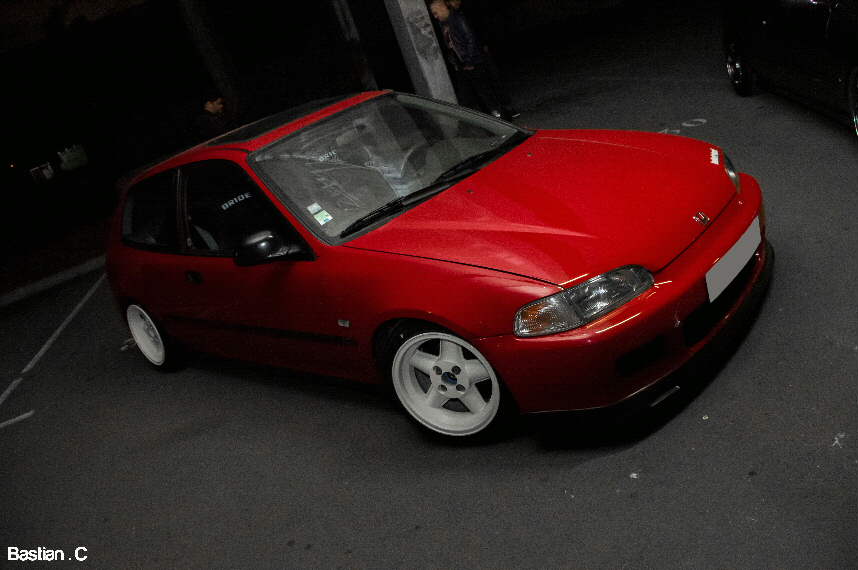

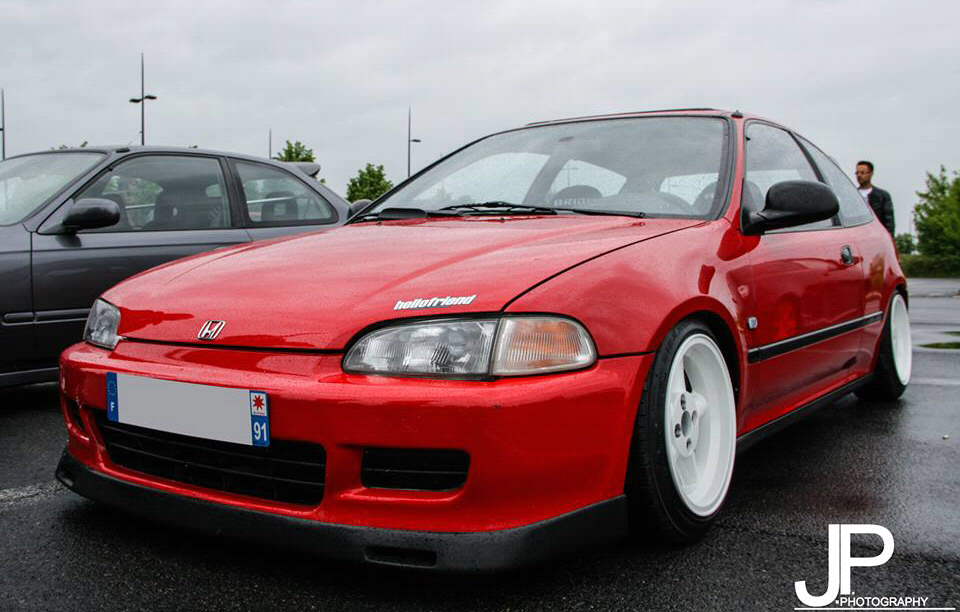

 rev5spk815whitecivic1 rev5spk815whitecivic2

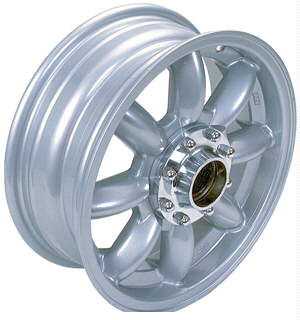

splinedcentrealloy

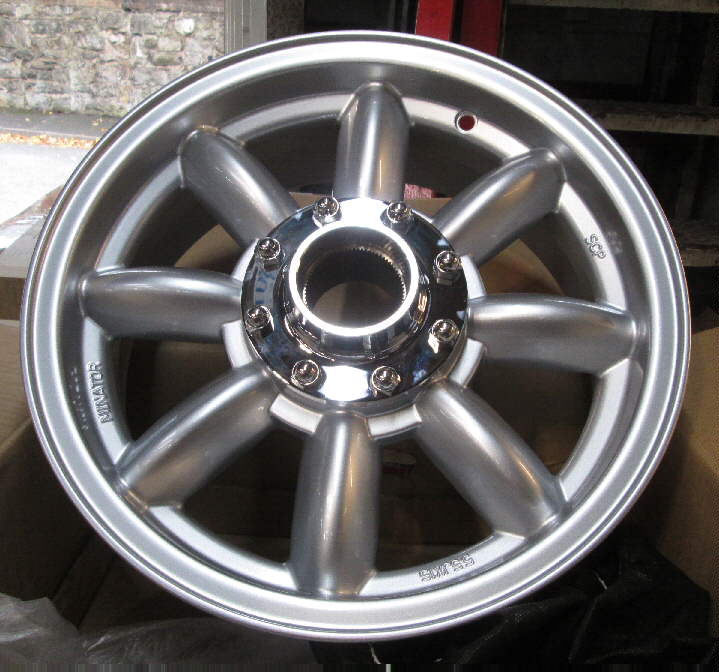

SPLINE CENTRE ALLOY

or MG, Triumph & Austin Healey



Size Approx. Weight (kgs) Price set of 4 (incl. vat)
5×13″
42mm spline
8kgs £680

to fit MG, Triumph, Sunbeam & Austin Healey

5½x14″
42mm  spline
9kgs £760

to fit MG, Triumph, Sunbeam & Austin Healey

5½x15″
42mm  spline
10kgs £800

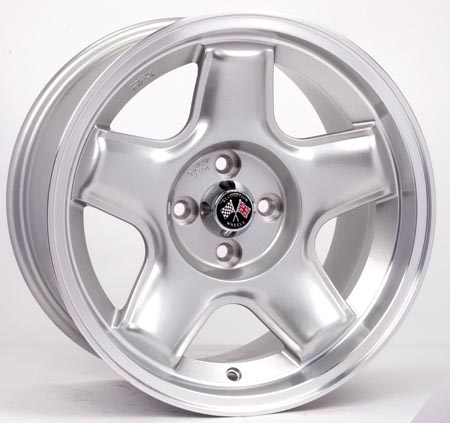

revo_rfx-1

RFX Rally Wheel

Fully painted white

Size PCD Offset
Range
mm
Backspace
mm
Approx.
Weight
kgs
Price set 4
(rally use)
(incl. vat)
5½x13″ 4×100
(Micra)
35 118 6.1 £460
5½x14″ 4 hole
3¾ > 4½
10 > 49 90 > 129 6.5/7.1 £480
5½x14″ 4×100
(Corsa)
49 129 6.5 £480
5½x14″ 4×108
(Peugeot)
15 95 7.1 £480
6×14″ 4 hole
3¾ > 4½
10 > 46 96 > 132 6.7/7.3 £490
6×14″ 4×100
(Corsa)
46 132 6.7 £490
6×14″ 4×108
(Peugeot)
15 132 7.3 £490

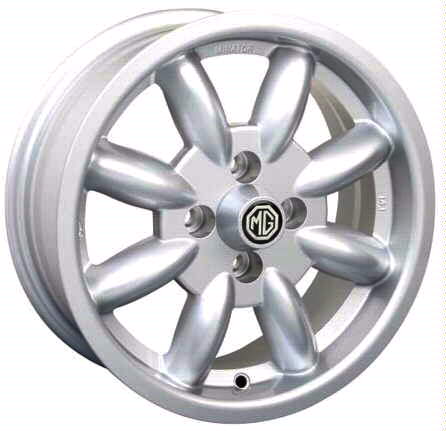

revo8spk

Classic 8-SPOKE Rally

Full Silver finish

Size PCD Offset
Range
mm
Backspace
mm
Approx.
Weight
kgs
Price set 4
(road use)
(incl. vat)
6×13″ 4×108
(Gp4 Escort)
+16 105 5.6 £410
7×13″ 4×108 00 101 6.7 £440
7×13″ 4×108
(Gp4 Escort)
00 101 6.9 £430
8×13″ 4×108 -06 107 7.4 £460
8×13″ 4×108
(Gp4 Escort)
-12 101 7.6 £450
9×13″ 4×108
(Gp4 Escort)
-12 114 8.1 £520
9×13″ 4×108
(Gp4 Escort)
-24 102 8.3 £510

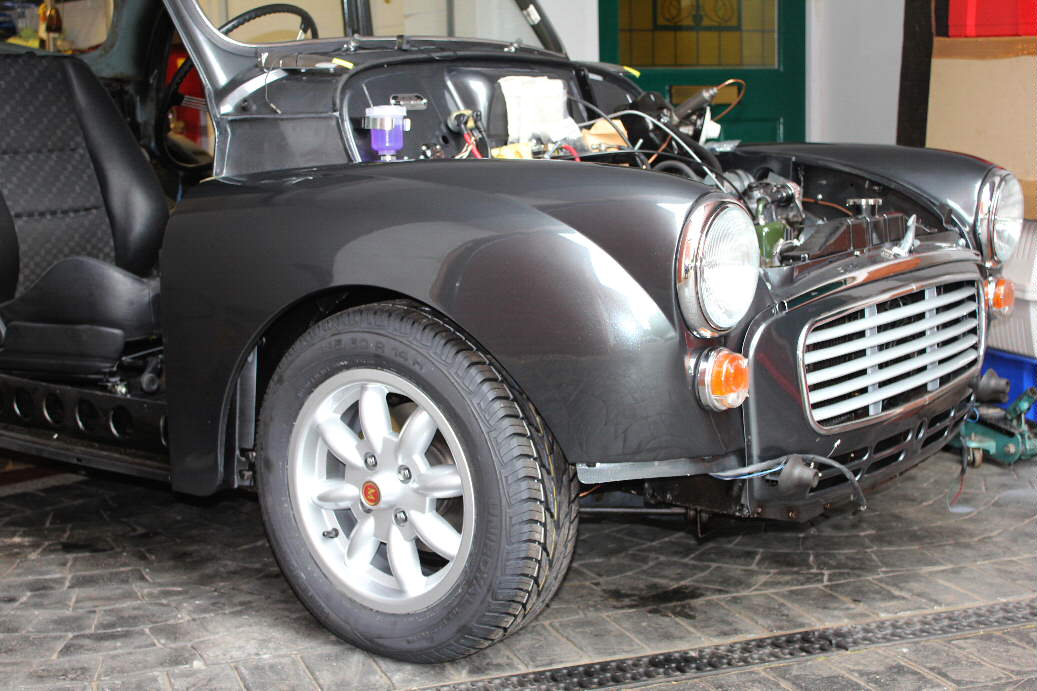

 scp8spoke14morris1000a-2 scp8spoke14morris1000b
PRICES
Prices include vat. Prices on this page are for set of 4 wheels delivered in the UK (please ask for export prices), including a set of new standard nuts or bolts. (Some specialist fixings such as sleeve nuts will be extra cost).
If you want less than 4 wheels please ask.
VEHICLE FITMENTS
The wheels shown are available in a variety of fitments to suit different vehicles – 4 or 5 hole stud patterns and different offsets.See my help page for technical details of PCD and offsets. Note that with NEGATIVE offsets the mounting hub of the wheel protrudes towards the back rim, with POSITIVE offsets the mounting hub is towards the outer face (as most modern cars)WHEN ORDERING please specify PCD, offset, centre bore, nut/bolt type and whether the wheel is required for Road or Race or Rally use.
