Classic Minilite Alloys made in the UK

Other wheels for Classic Cars > > | Revolution Alloys | Ferrari Replicas | Wheels for BMW E30

MINILITE Alloy Wheels are made to fit Classic Cars, Race Cars, Rally cars & other non-standard fitments:
examples – Austin Healey 3000, BMC Mini, BMW 2002, Caterham, Daihatsu Hi-Jet, Fiat 126, Fiat Panda, Fiat 500, Ford Cortina, Ford Escort Mk1&2, Jaguar E-type, Morris Minor, Marina, MG Midget, MGA, MGB, MG RV8, Opel Manta, Sunbeam Tiger, Rapier, Alpine, Hillman Imp, Rover P6, Triumph Dolomite, Spitfire, Herald, Triumph TR3, TR4, TR5, TR6, TR7, TR8, GT6, 2000, Stag, Reliant Scimitar, Westfield, Ginetta, Volvo Amazon, etc.

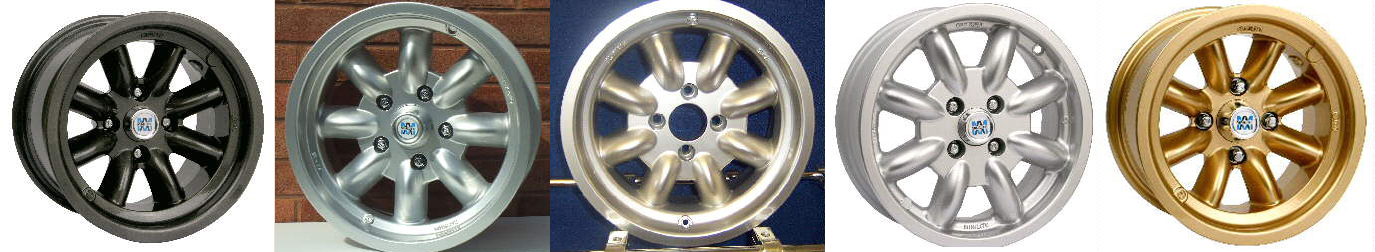

minlit1-wheels

If you want 5 wheels add 25% | If you want 6 wheels add 50% | If you want less than 4 wheels please ask.
All prices include centre caps & badges. Nuts or Bolts extra.
Minilite wheels are made from LM9 alloy and heat treated for strength.
All Minilite wheels are fitted with steel inserts to the bolt holes.

Wheel Size finished in Silver
Fitments / Offsets
Backspace
Price (set of 4) incl. delivery & VAT(UK mainland)
5 x 12″
ET15 (not Mini fitment)
91mm
£390
5 x 13″
ET00 to ET26
76 to 102mm
£470
5½ x 13″
ET06 to ET30
89 to 113mm
£490
6 x 13″
ET08 to ET28
97 to 117mm
£510
7 x 13″
ET00
102mm
£540
8 x 13″
ET-05 to ET00
109 to 114mm
£570
9 x 13″
ET-17 to ET00
110 to 127mm
£620
5½ x 14″
ET08 to ET33
91 to 116mm
£540
6 x 14″
ET08 to ET33
97 to 122mm
£570
5½ x 15″
ET02 to ET20
85 to 103mm
£600
6 x 15″
ET07 to ET26
96 to 117mm
£620
7 x 15″
ET-06 to ET16
99 to 118mm
£670
8 x 15″
ET-16 to ET15
98 to 129mm
£770
9 x 15″
ET-30 to ET04
97 to 131mm
£840
10 x 15″
ET-13 to ET05
127 to 145mm
£880

* NEW !! 16″ Minilite wheels ** Ideal for Classic Porsche and American Muscle Cars

7 x 16″
ET-06 to 16
96 to 118mm
£880
8 x 16″
ET-16 to 00
98 to 114mm
£950
9 x 16″
ET-30 to 04
97 to 131mm
£970



Minilite wheels in popular sizes, fitments & standard colours are available off the shelf for next day delivery.
Other wheels or non-standard colours are usually in stock as “blanks”:  they need to be drilled and painted – delivery time usually 7 to 21 days.

Optional extras below (set of 4)

16 standard Nuts or Bolts
Extra cost if wanted
£20
20 standard Nuts or Bolts
Extra cost if wanted
£25
Special Colours
Gloss Black, Satin Black, White, Gold, Anthracite, Red, Yellow, Blue, Orange
£70
Diamond Cut Hilite Rim (not laquered) no warranty on this finish
High Maintenance – not recommended * Hilited rim edges require weekly polishing with Alusol or similar to keep the shine
£50
Group 4 Rally Wheels (see images below)
Steel inserts to Group 4 specification
16 nuts to Group 4 specification
£60
£50
Peg Drive (13″ and 14″ only)
Lotus Elan only
£140
Spline Centre Hub 42mm diameter
Austin, MG, Morgan, Triumph Sunbeam, Ford, Aston Martin
£550
Spline Centre Hub 52mm diameter
Jaguar, Daimler, Volvo
£550
New Hub Spinners
Plain Centre (no logo)
£180

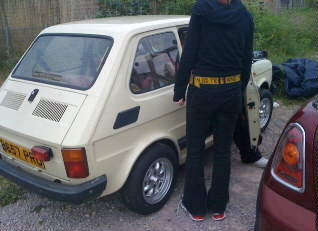

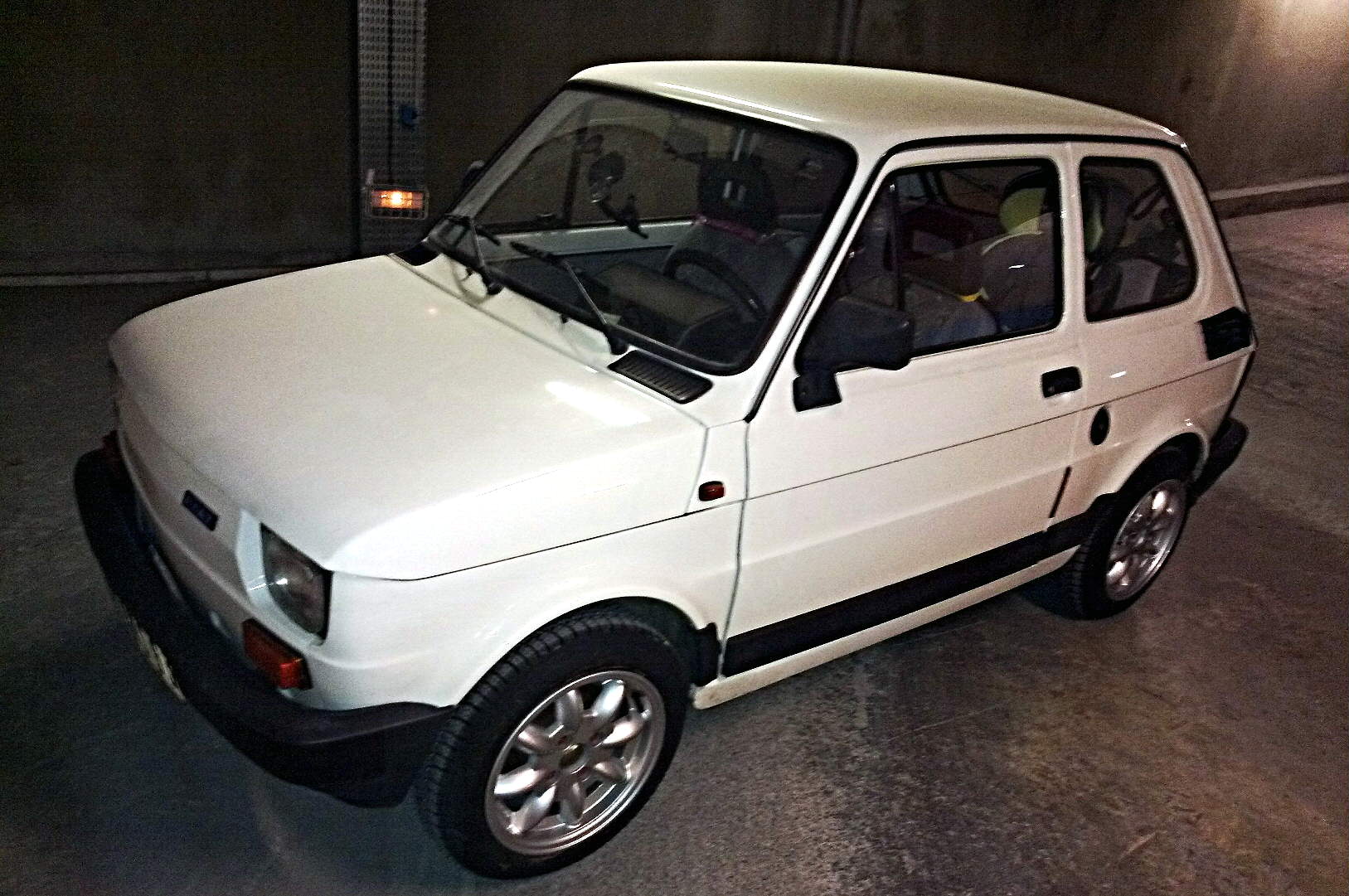

Fiat 126 Air Cooled 5x12" Minilites + 155/70R12 tyres
Fiat 126 Air Cooled 5x12" Minilites + 155/70R12 tyres

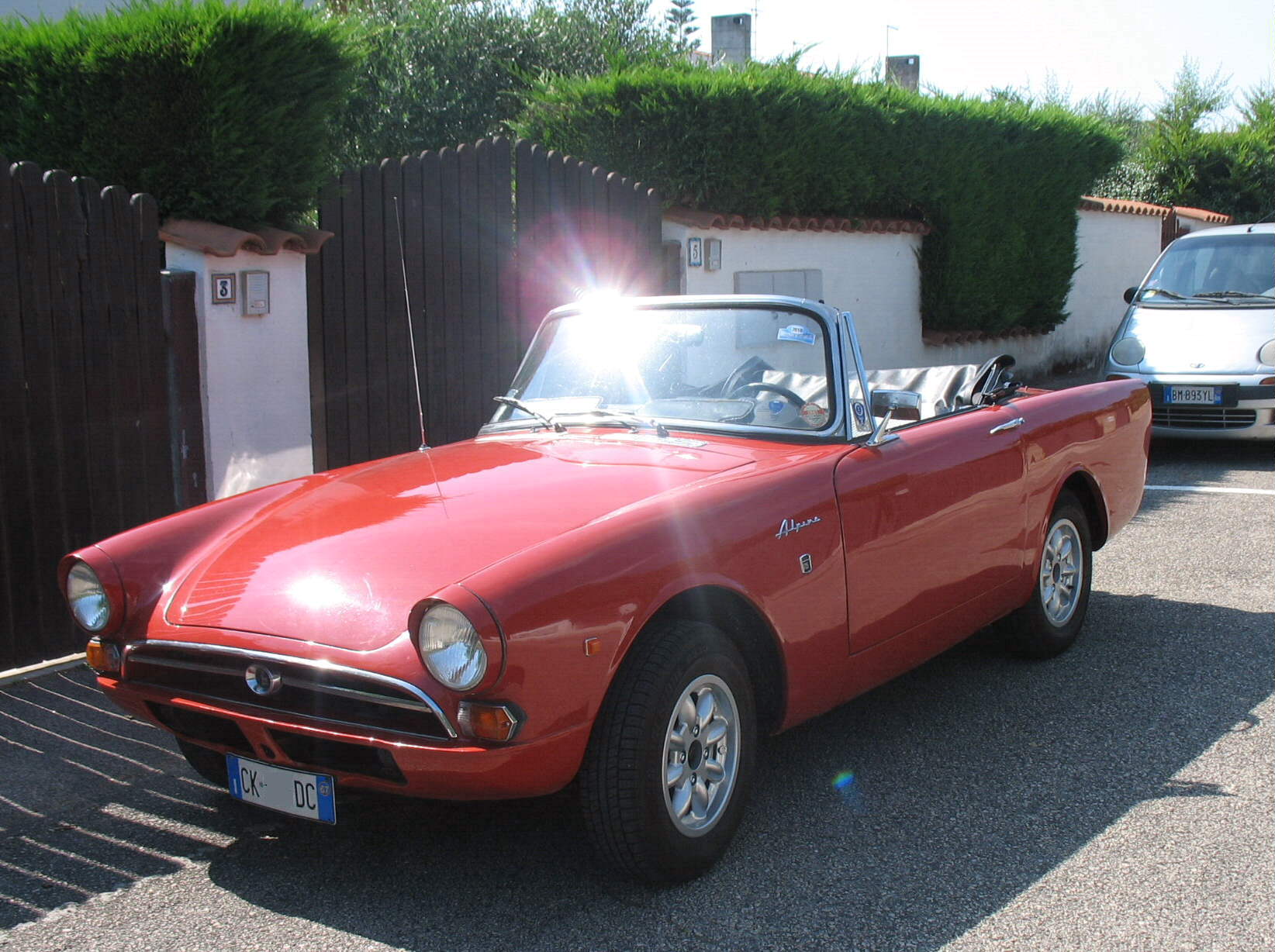

5x13" MInilite Sunbeam Alpine [Italy]
14" Minilite VW T25

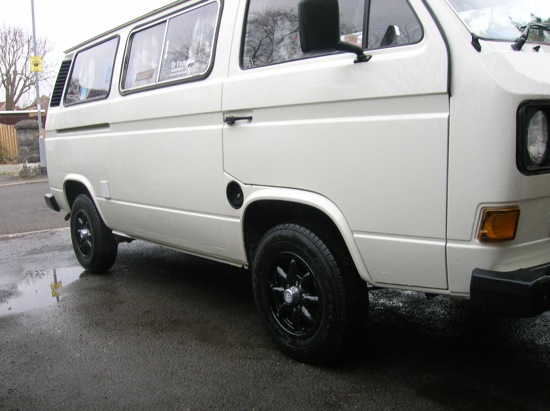

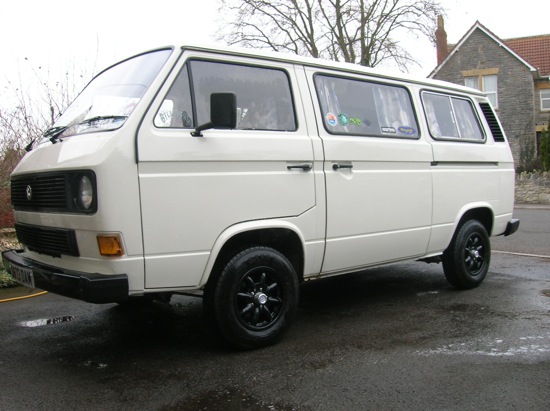

14" Minilite Black VW T25

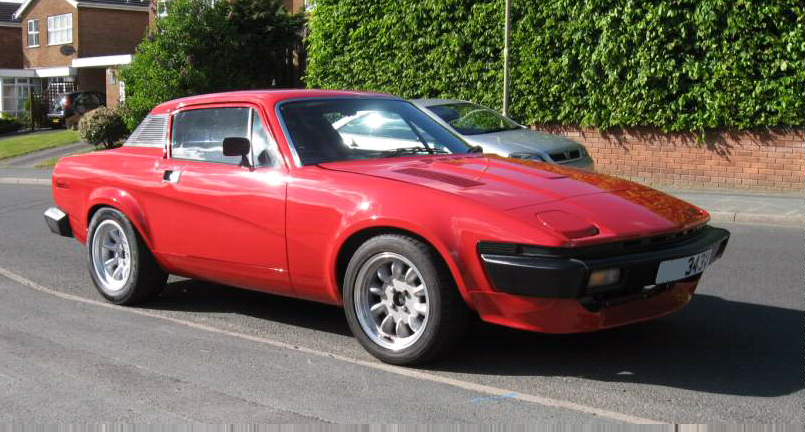

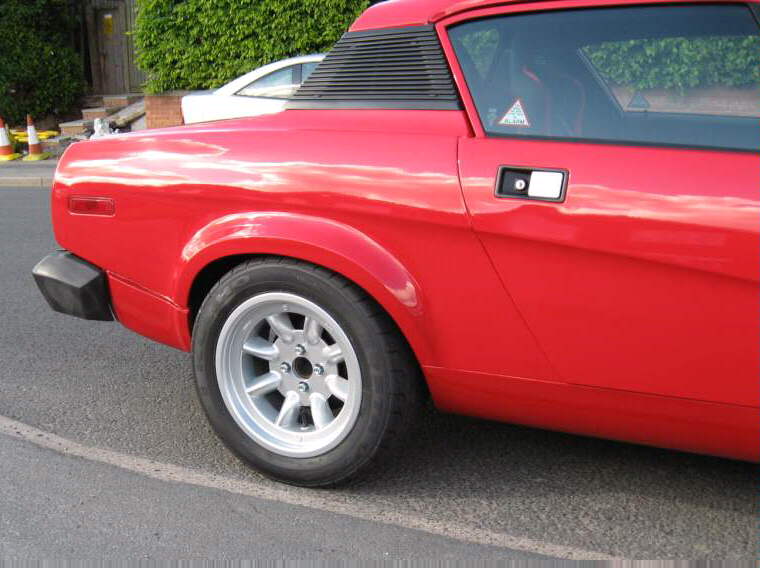

8x15" rear TR8
TR8 7x15" Front 8x15" Rear

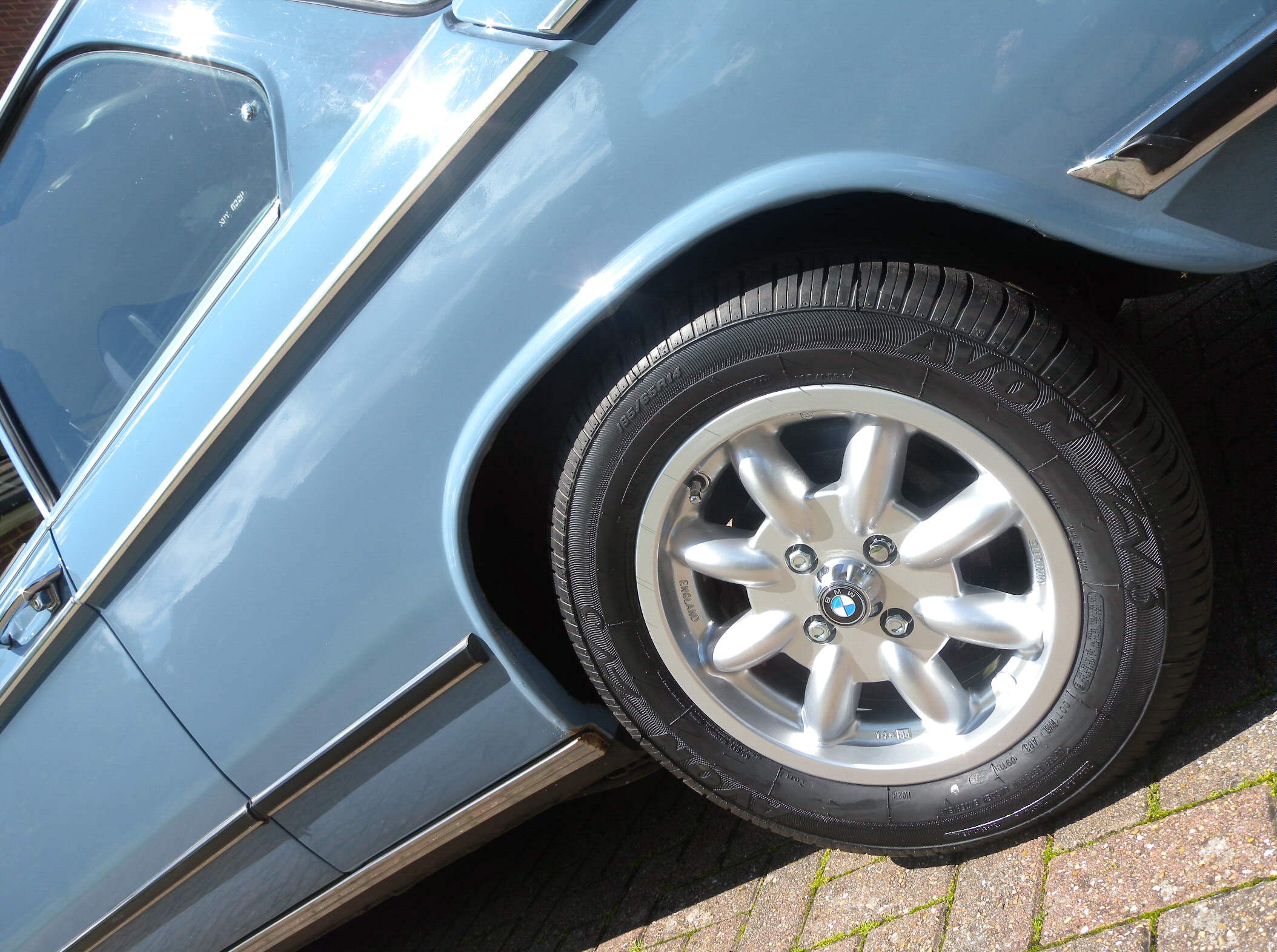

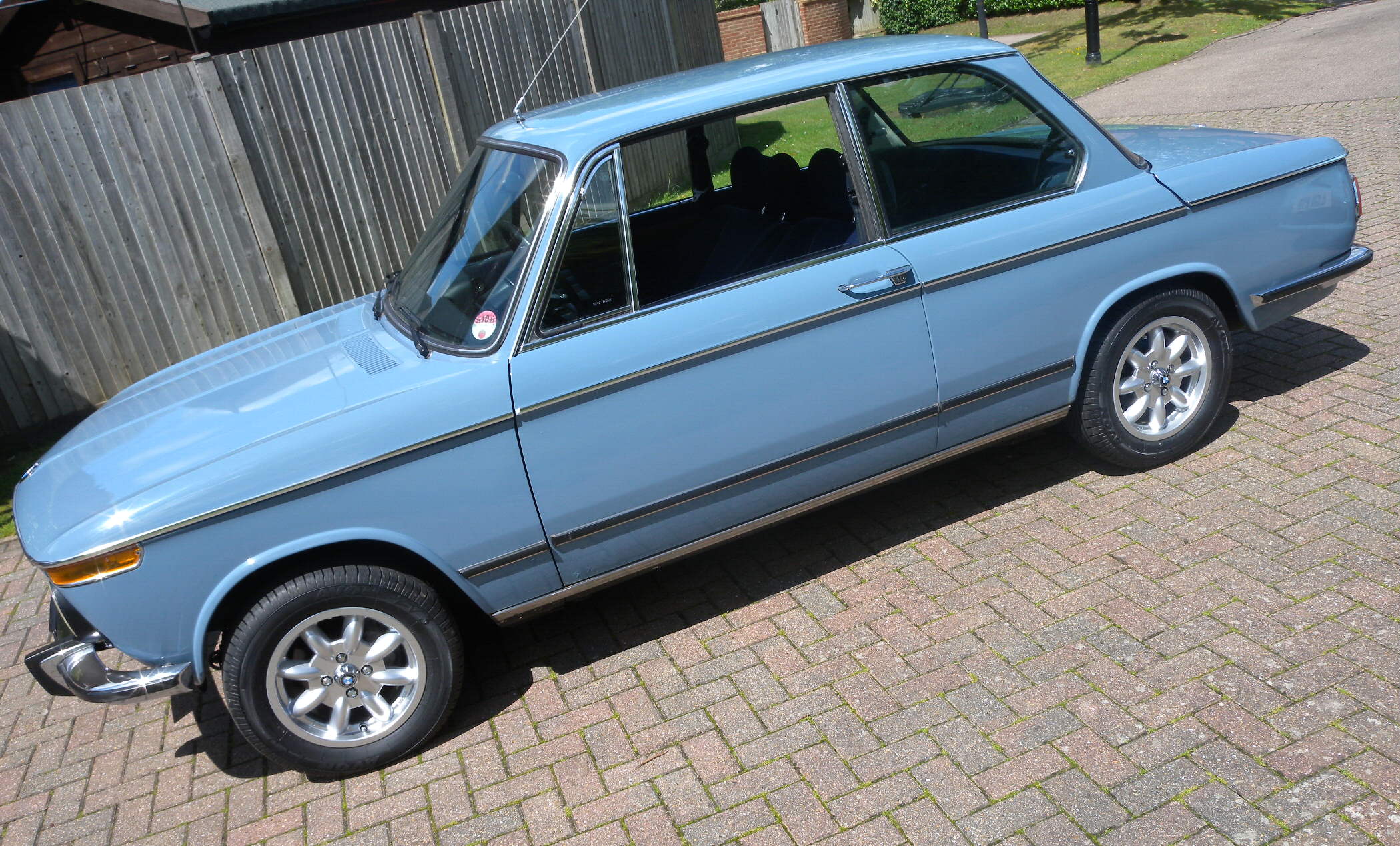

5½x14" BMW 2002ti 185/65R14 Avon
5½x14" BMW 2002ti 185/65R14 Avon

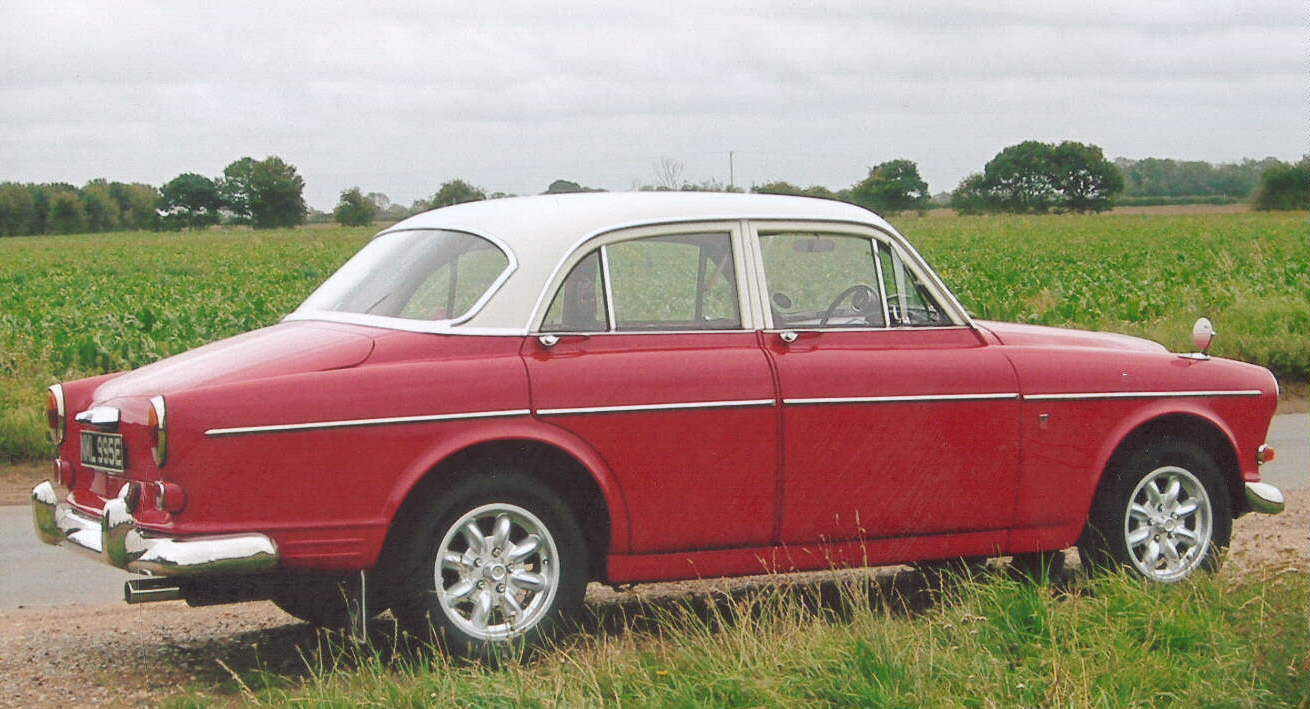

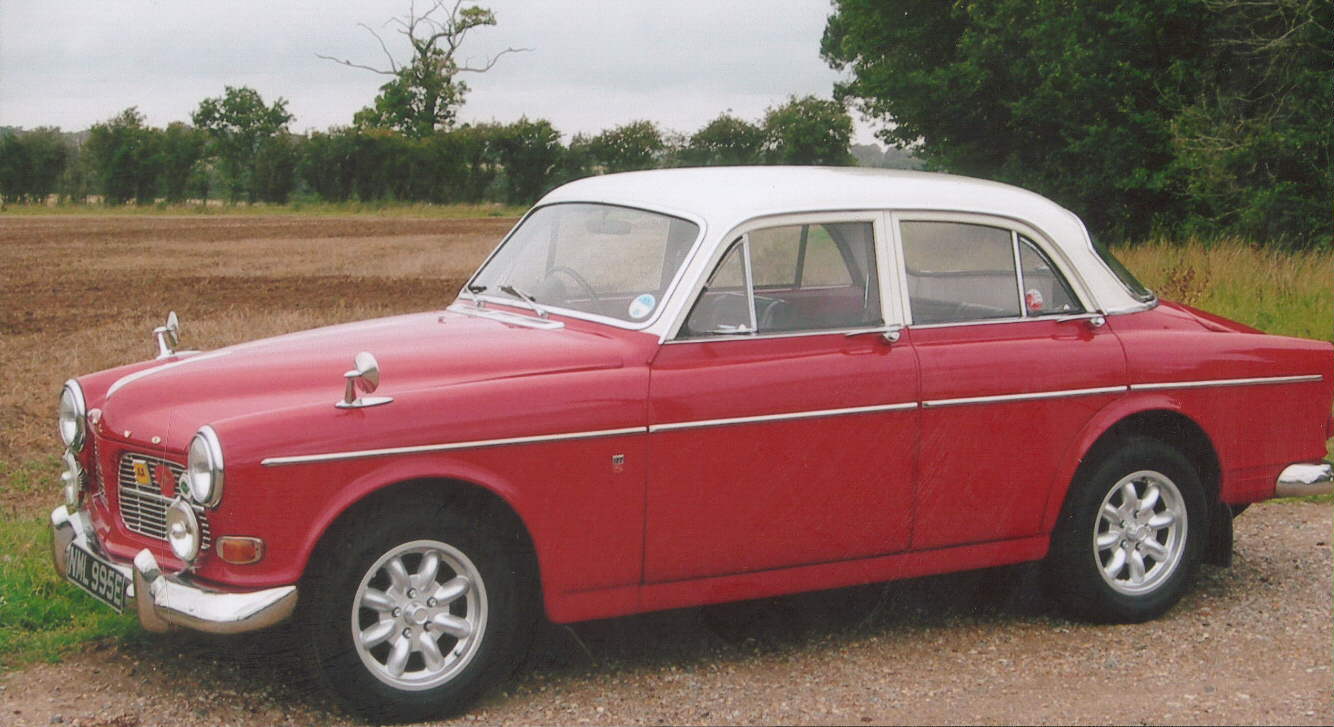

5½x15" Volvo Amazon
5½x15" Volvo Amazon

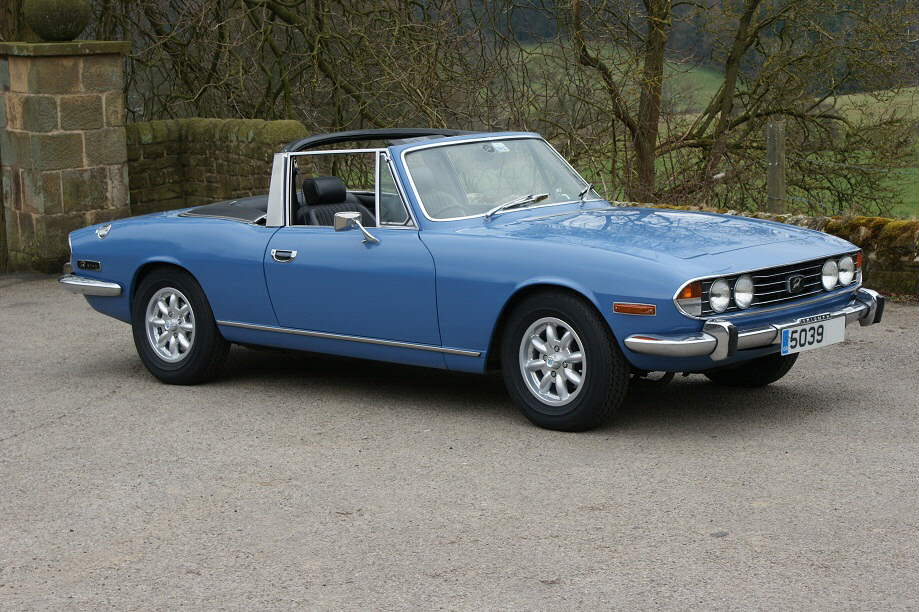

5½x14" Triumph Stag + 185HR14 Vredestein

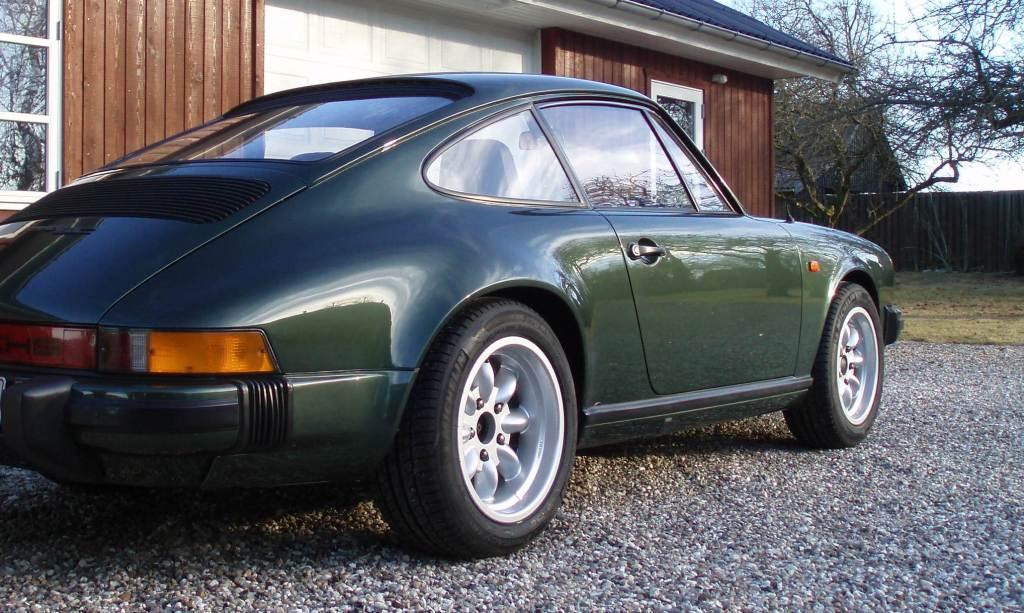

7x16" Front 8x16" Rear Porsche 911

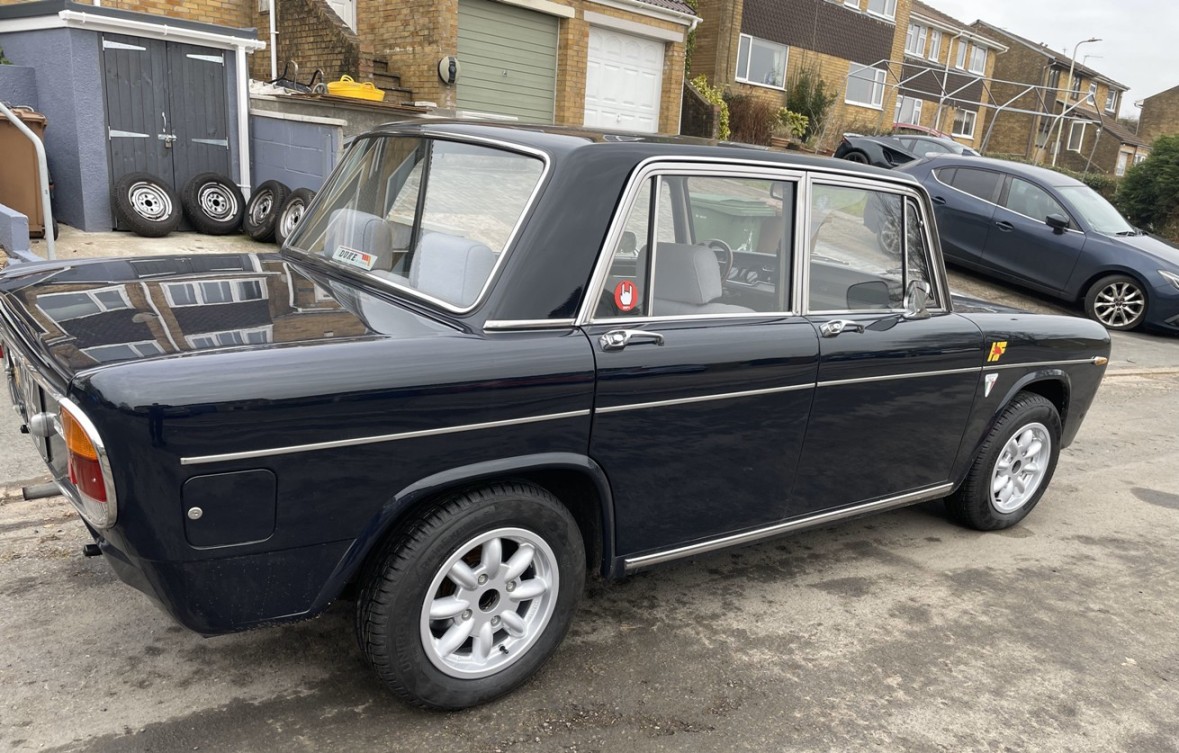

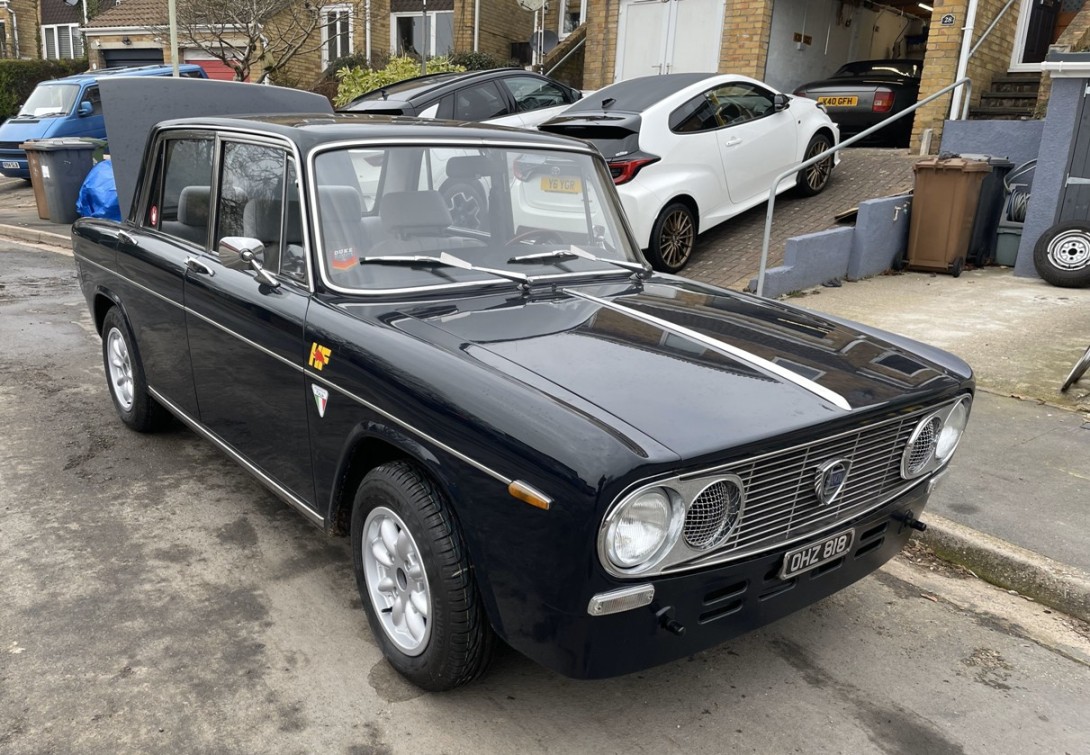

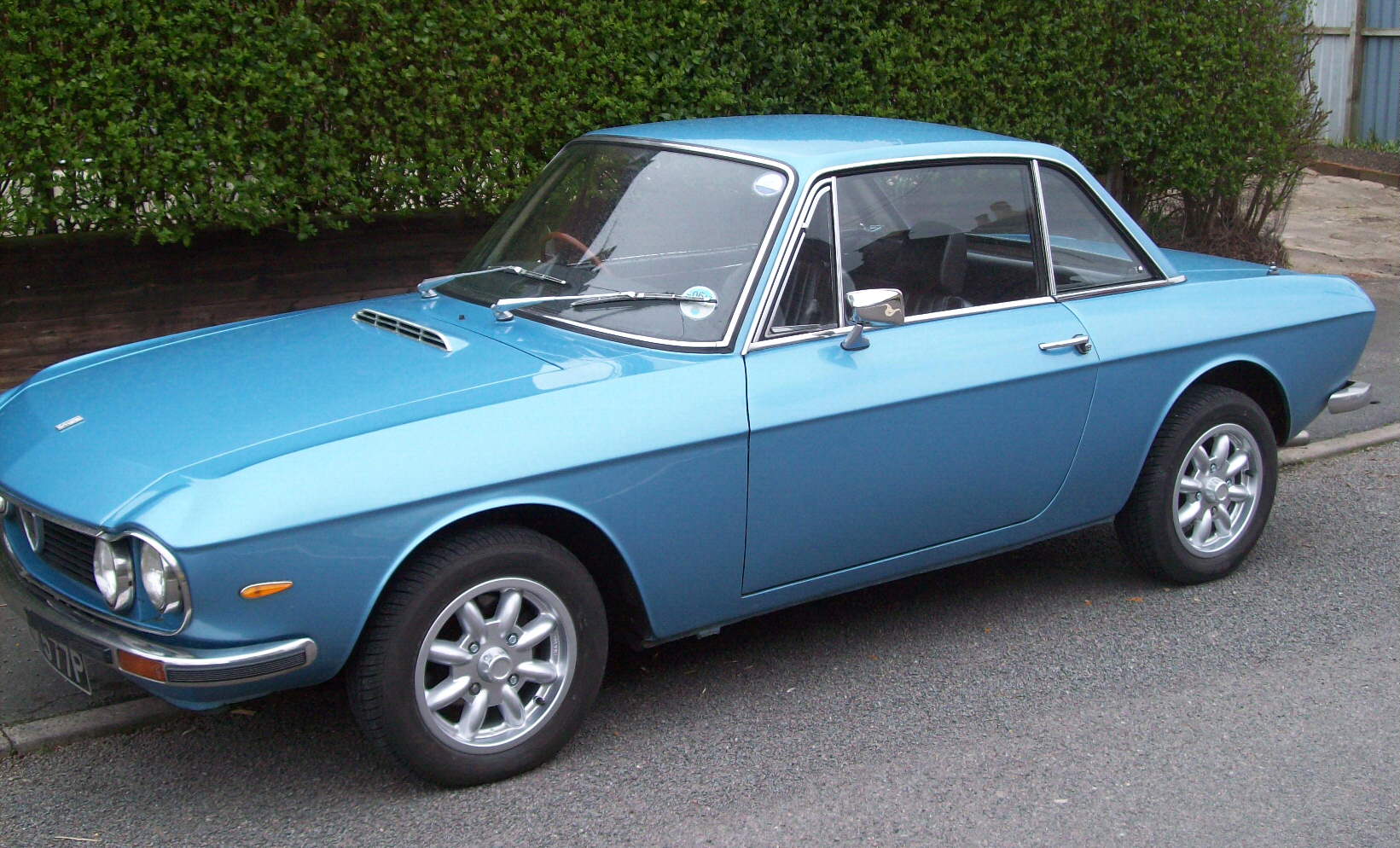

5½x14" Lancia Fulvia [Italy]

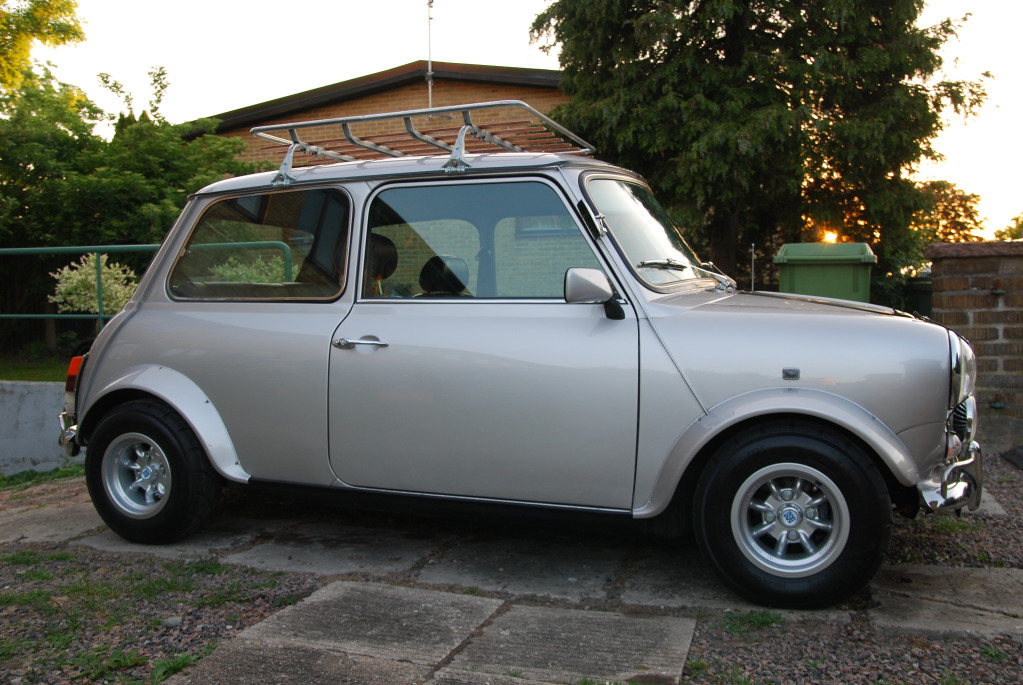

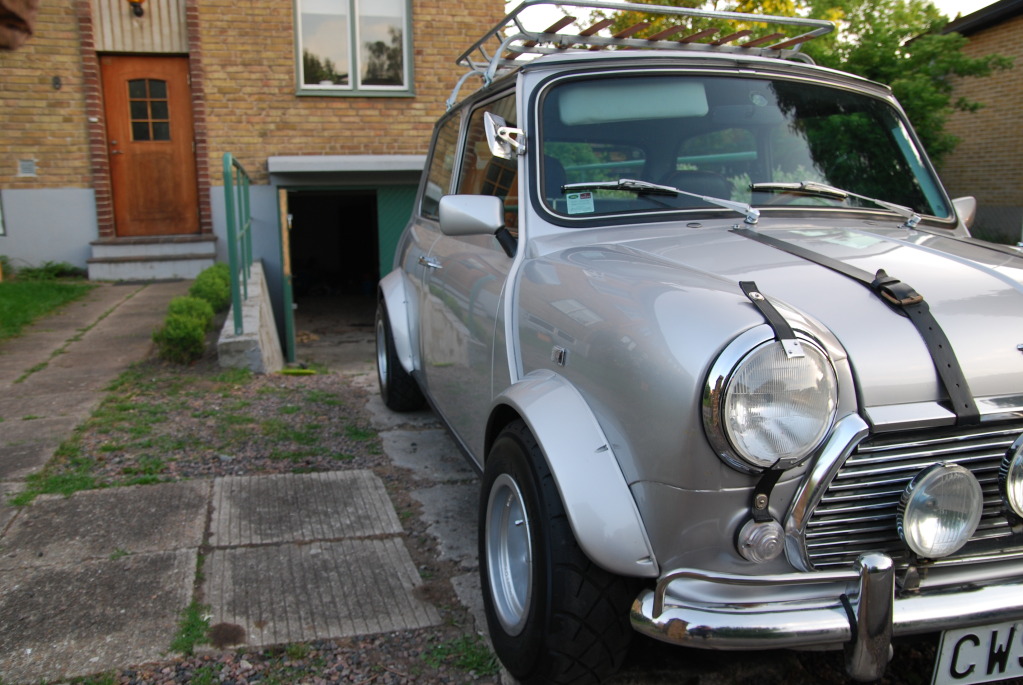

6x10" Deep Dish on Mini {Sweden]
6x10" Minilite Deep Dish [Sweden]

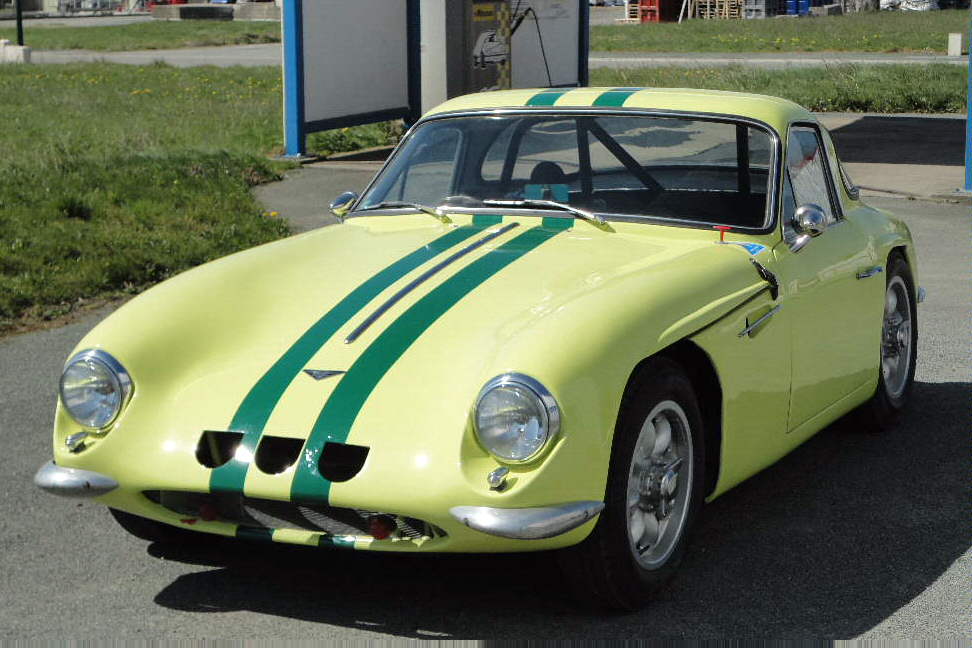

5½x15" Splien Centre TVR [France]

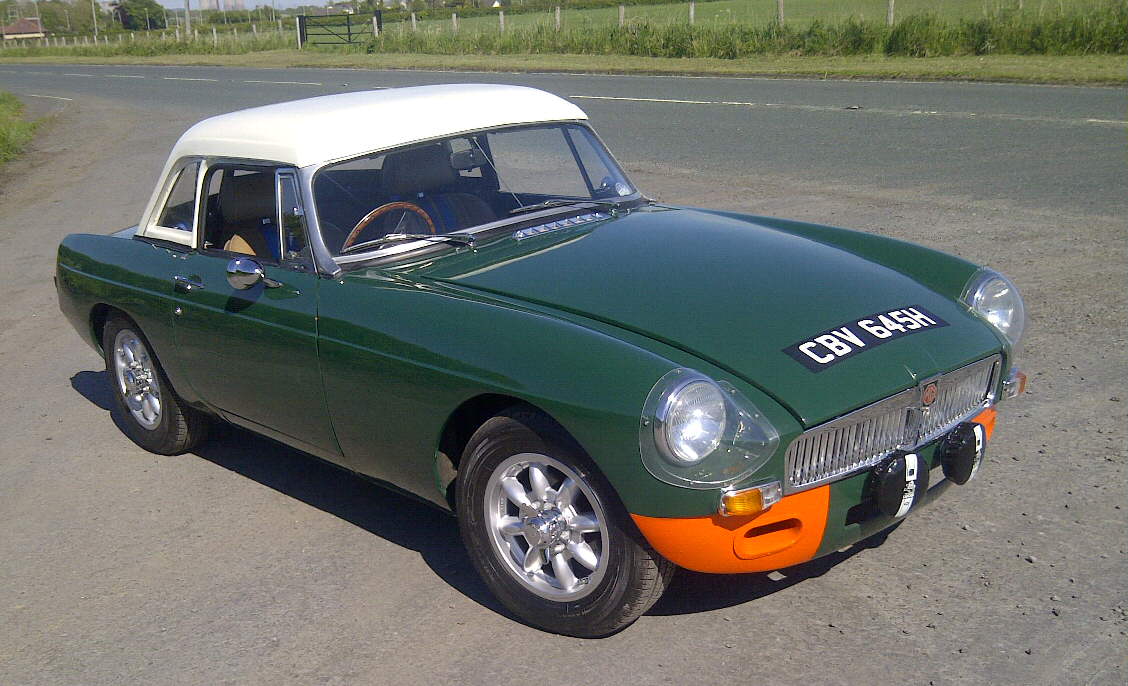

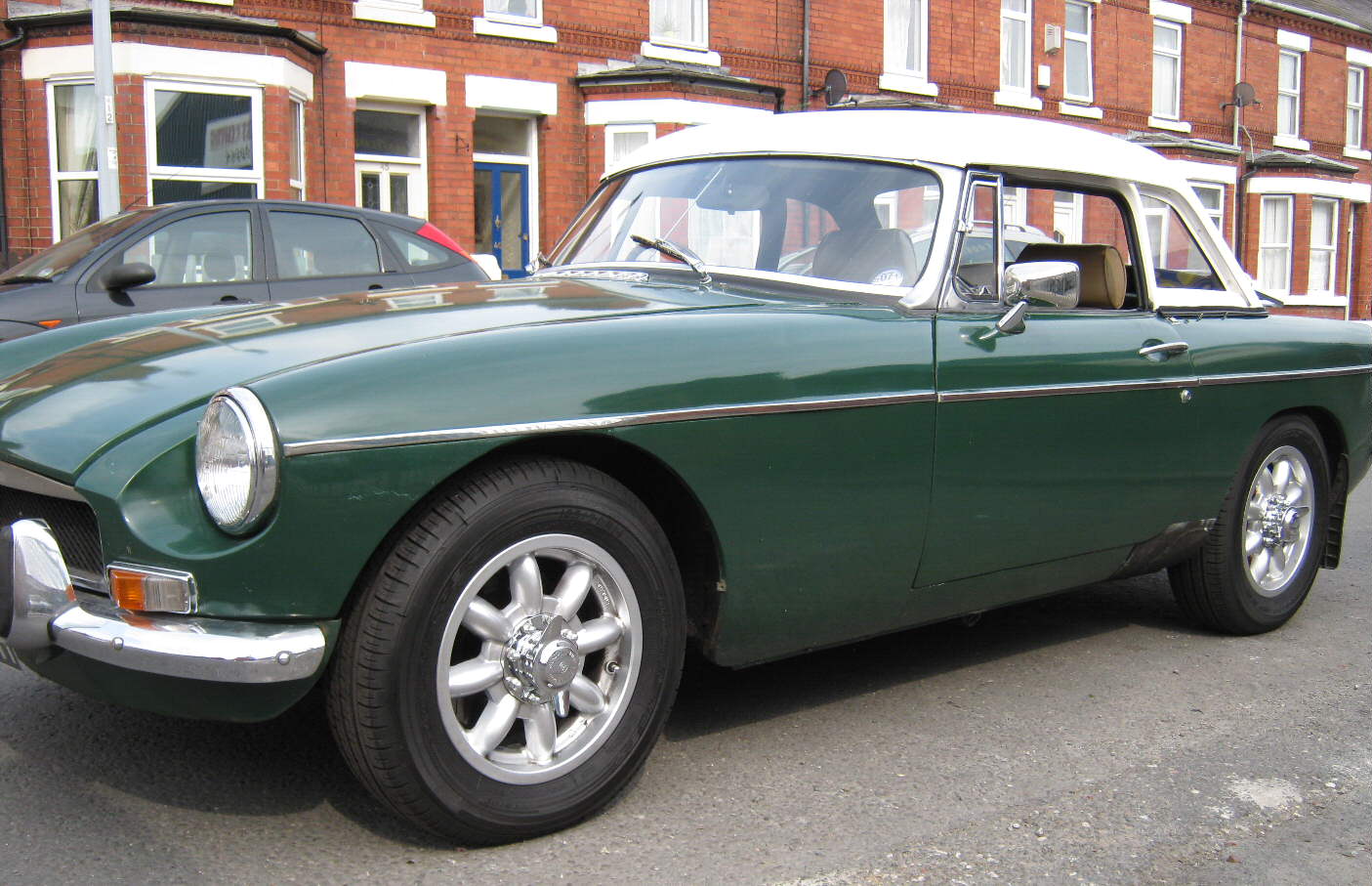

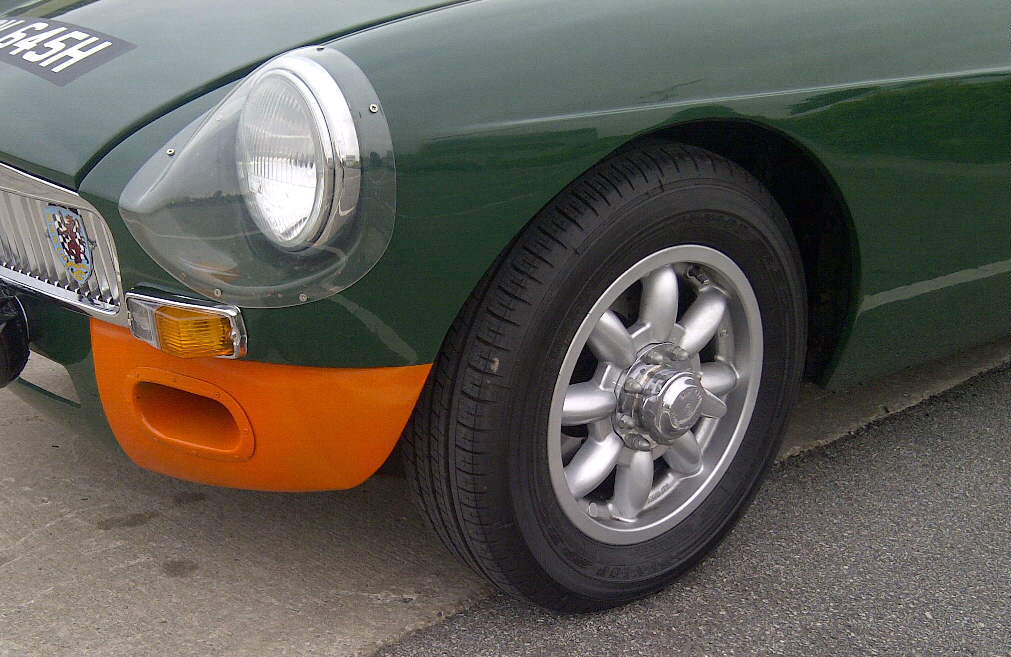

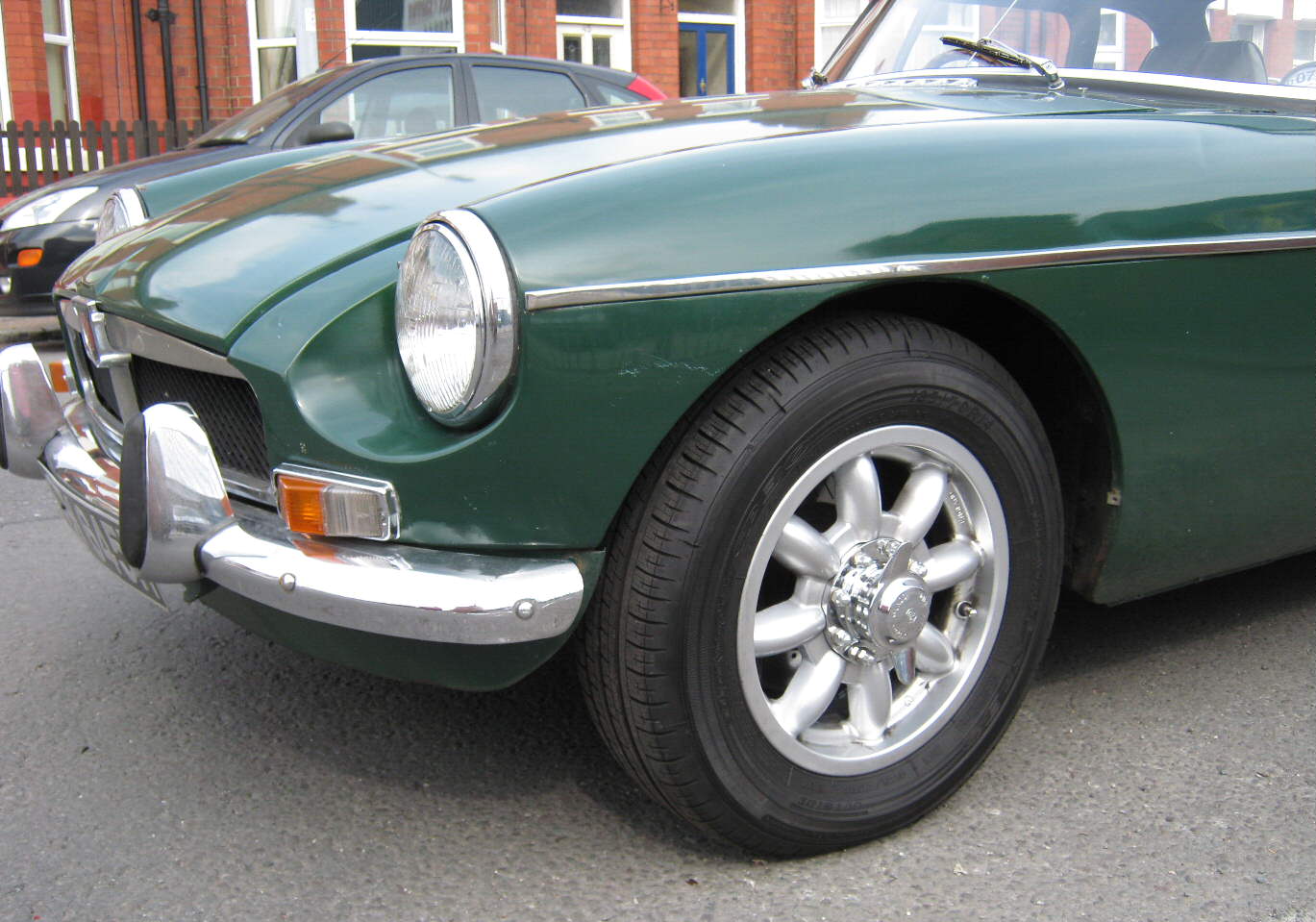

5½x14" Spline Centre Minilites on MGB
minilite14splinemgbb
5½x14" Miniltie Spline Centre Alloys on MGB
5½x14" Minilite Spline Centre Alloys on MGB

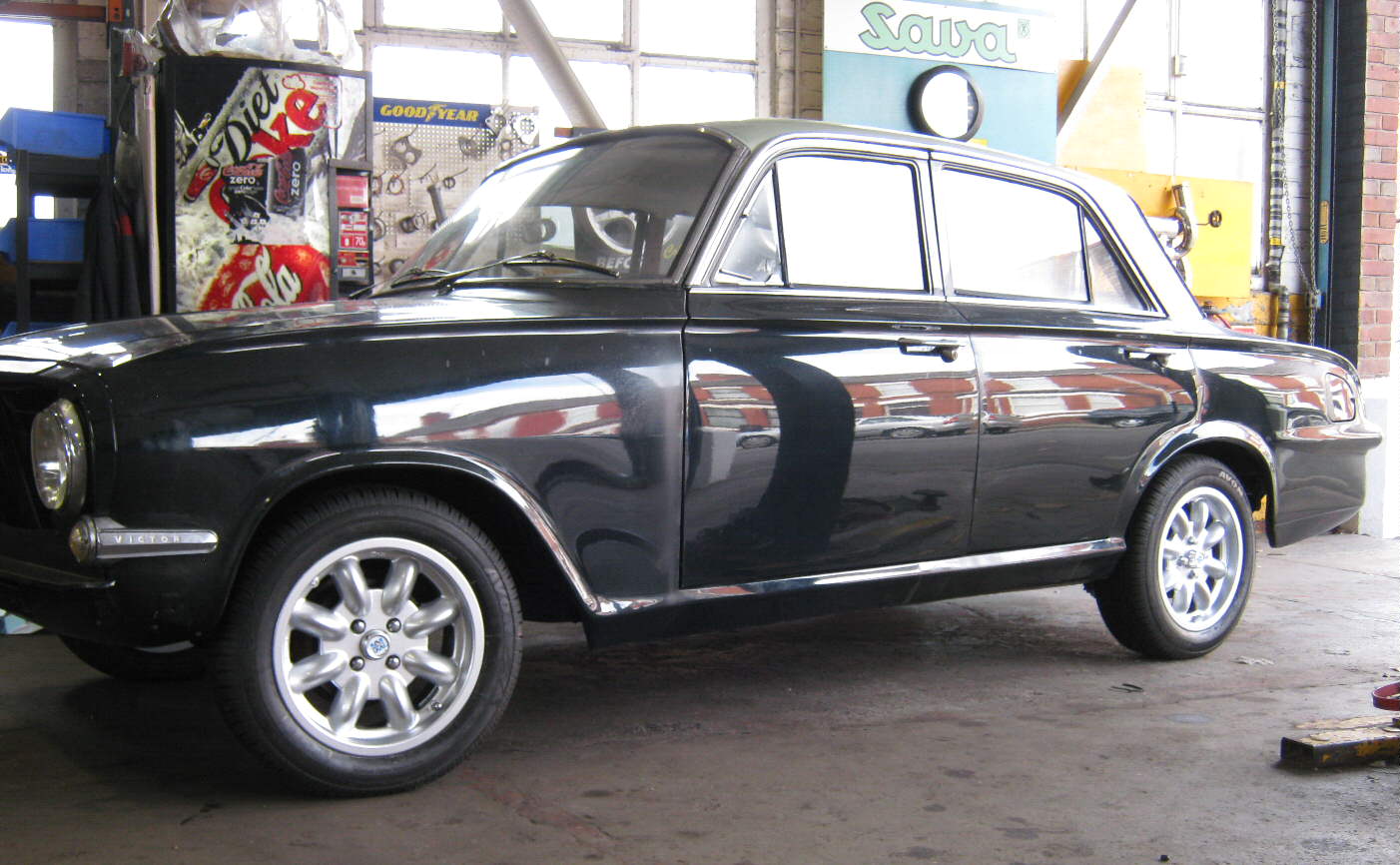

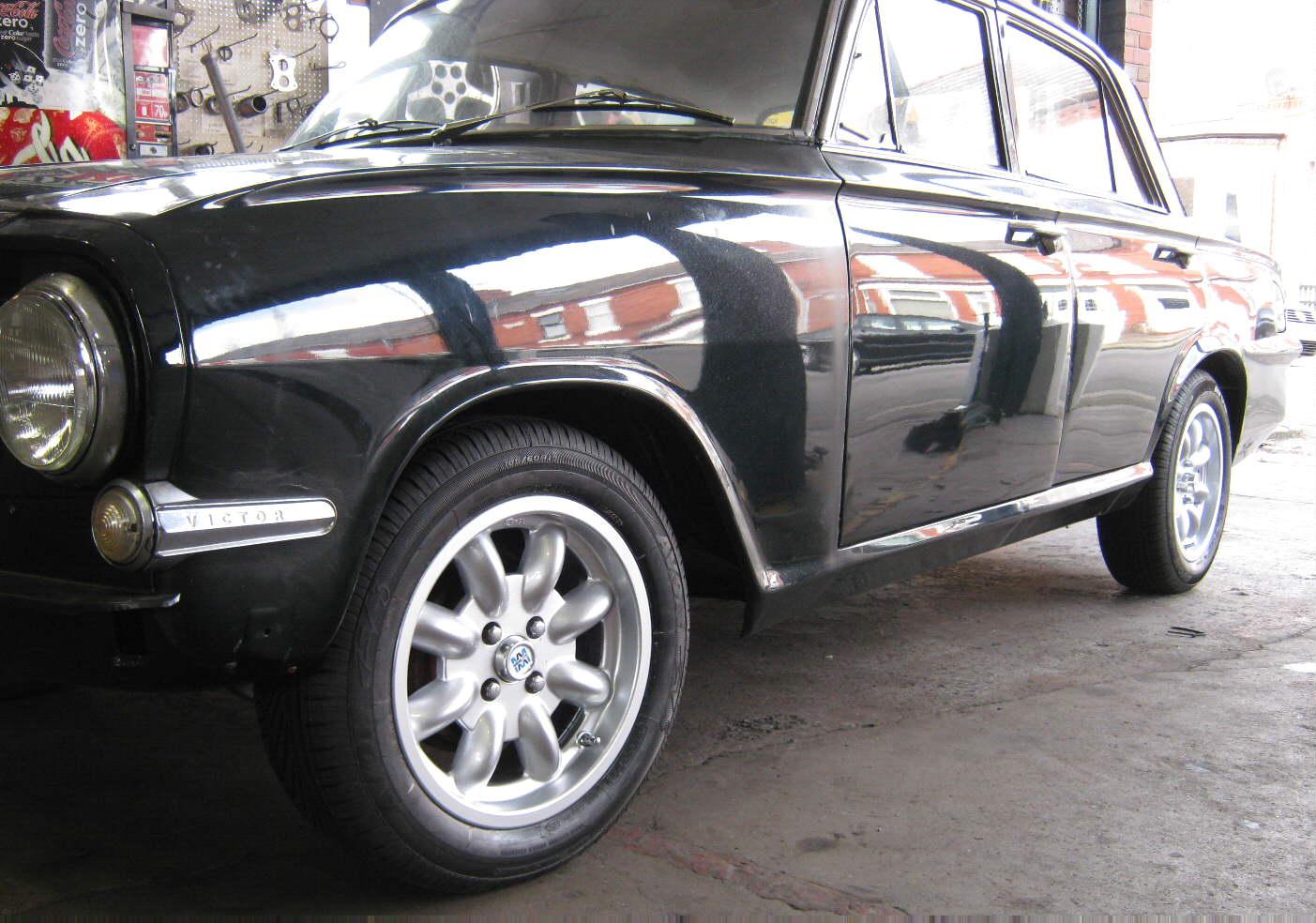

6x15" Minilites Vauxhall Victor ET13F ET25R + 185/60R15 Avon tyres
6x15" Minilites Vauxhall Victor ET13F ET25R + 185/60R15 Avon tyres
5½x14" Minilite on 1949 Morris Minor [Australia]

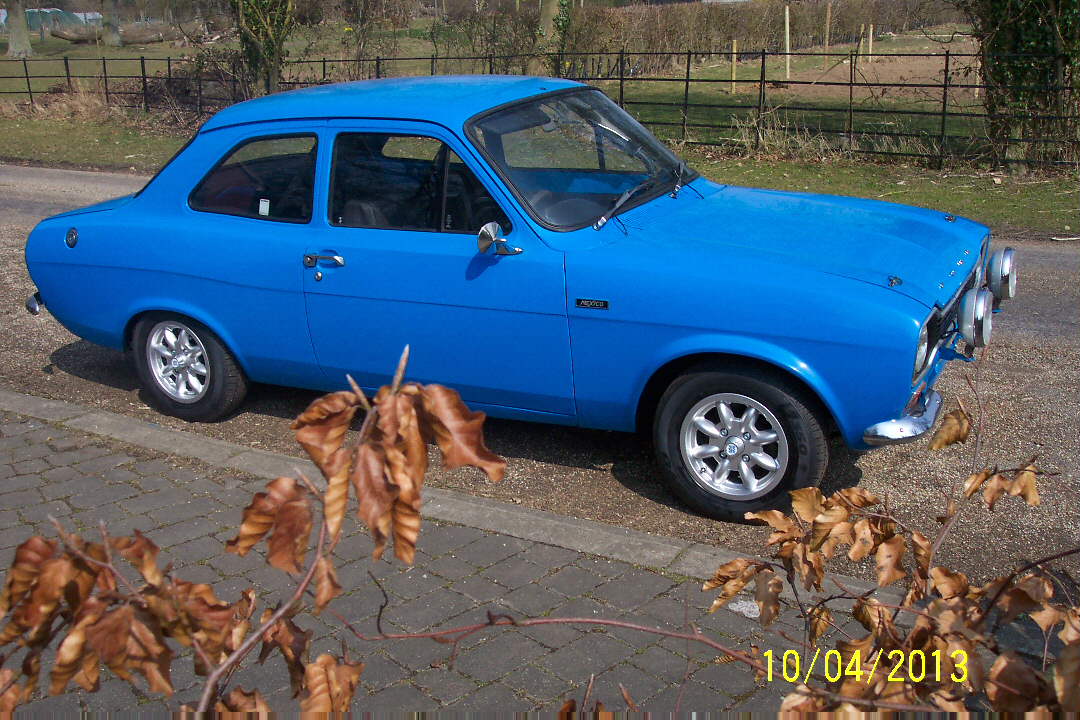

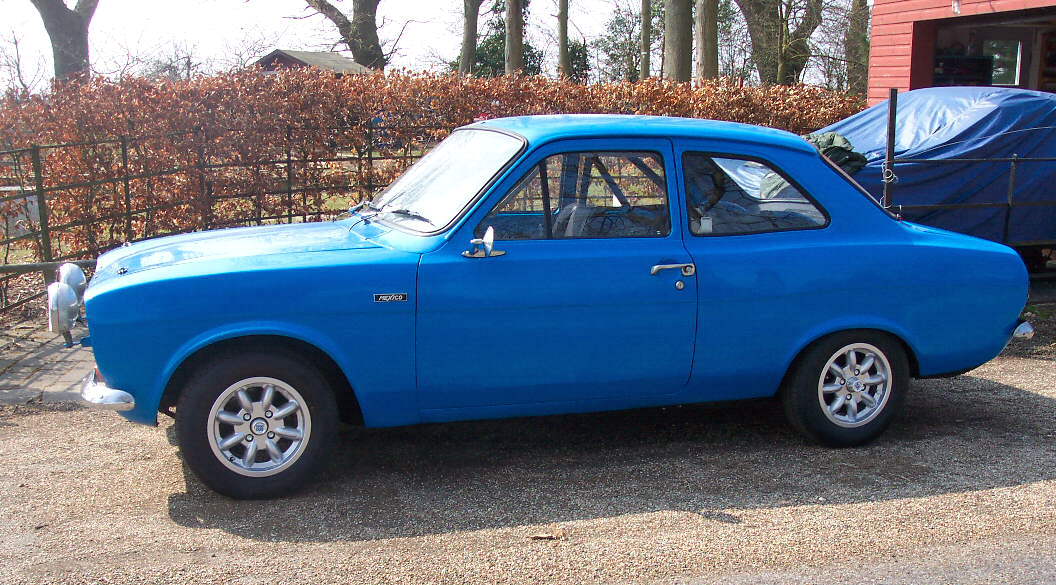

5½x13" Minilites Ford Escort Mexico + 175/70R13 Toyo
5½x13" Minilites Ford Escort Mexico + 175/70R13 Toyo2

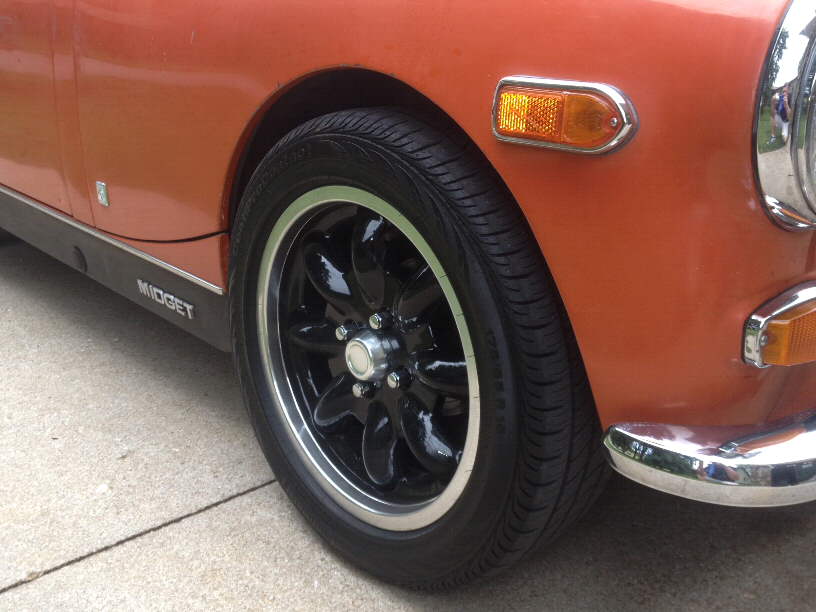

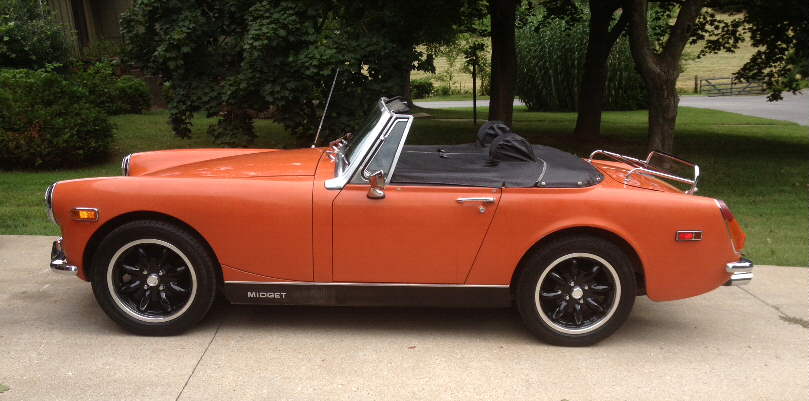

5½x15" Minilites MG Midget + 175//55R15 tyres [USA]
5½x15" Minilites MG Midget + 175//55R15 tyres [USA]

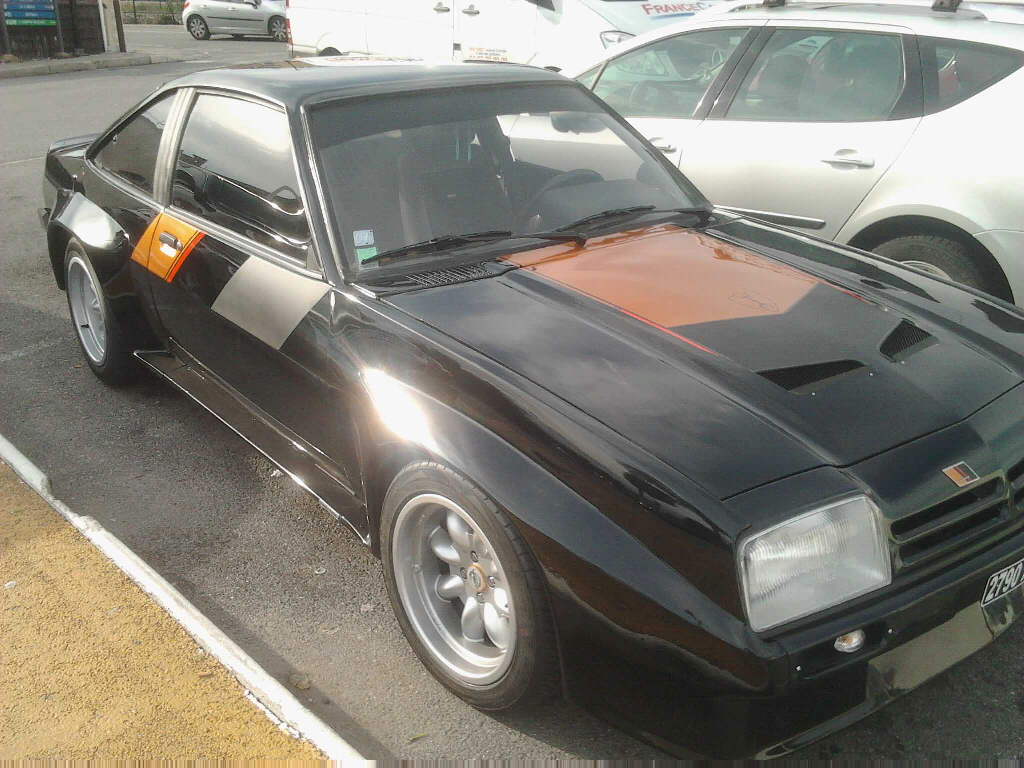

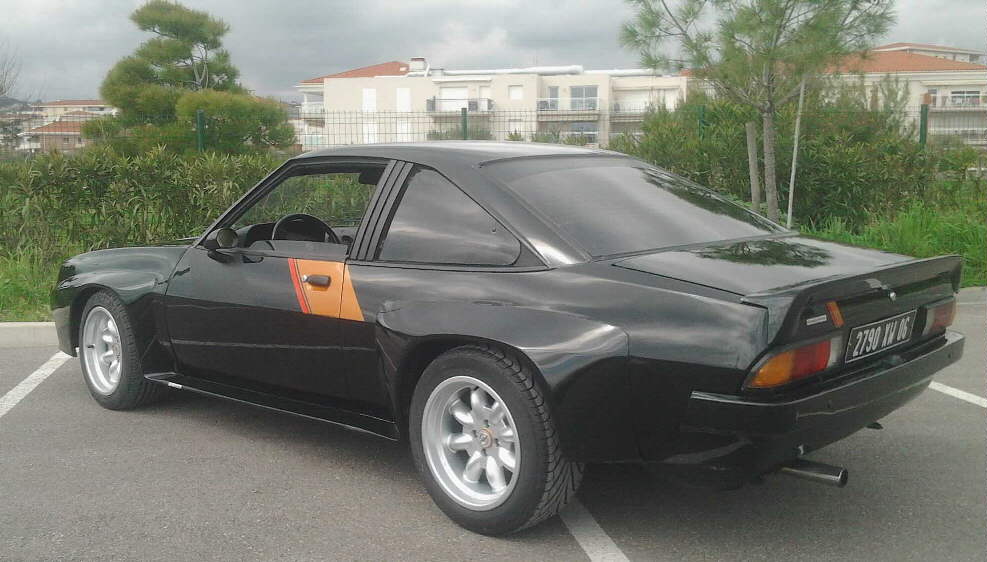

8x16" ET06 F 9x16 ET-12 R Minilite Opel Manta Replica [France]
8x16" ET06 F 9x16 ET-12 R Minilite Opel Manta Replica [France]

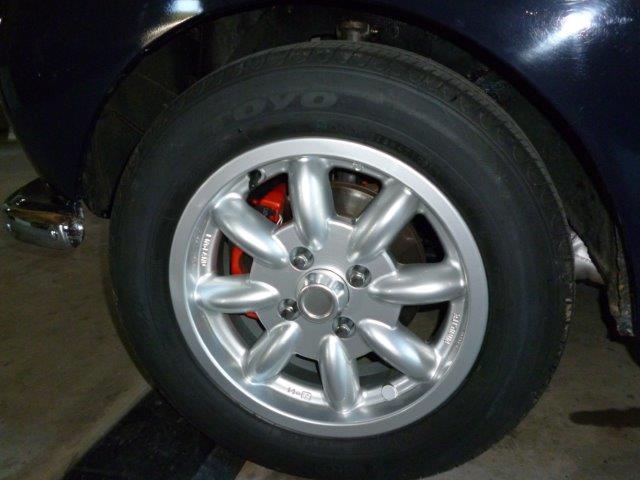

6x14" Minilite Morris Minor [Australia]
minilite14morrisb

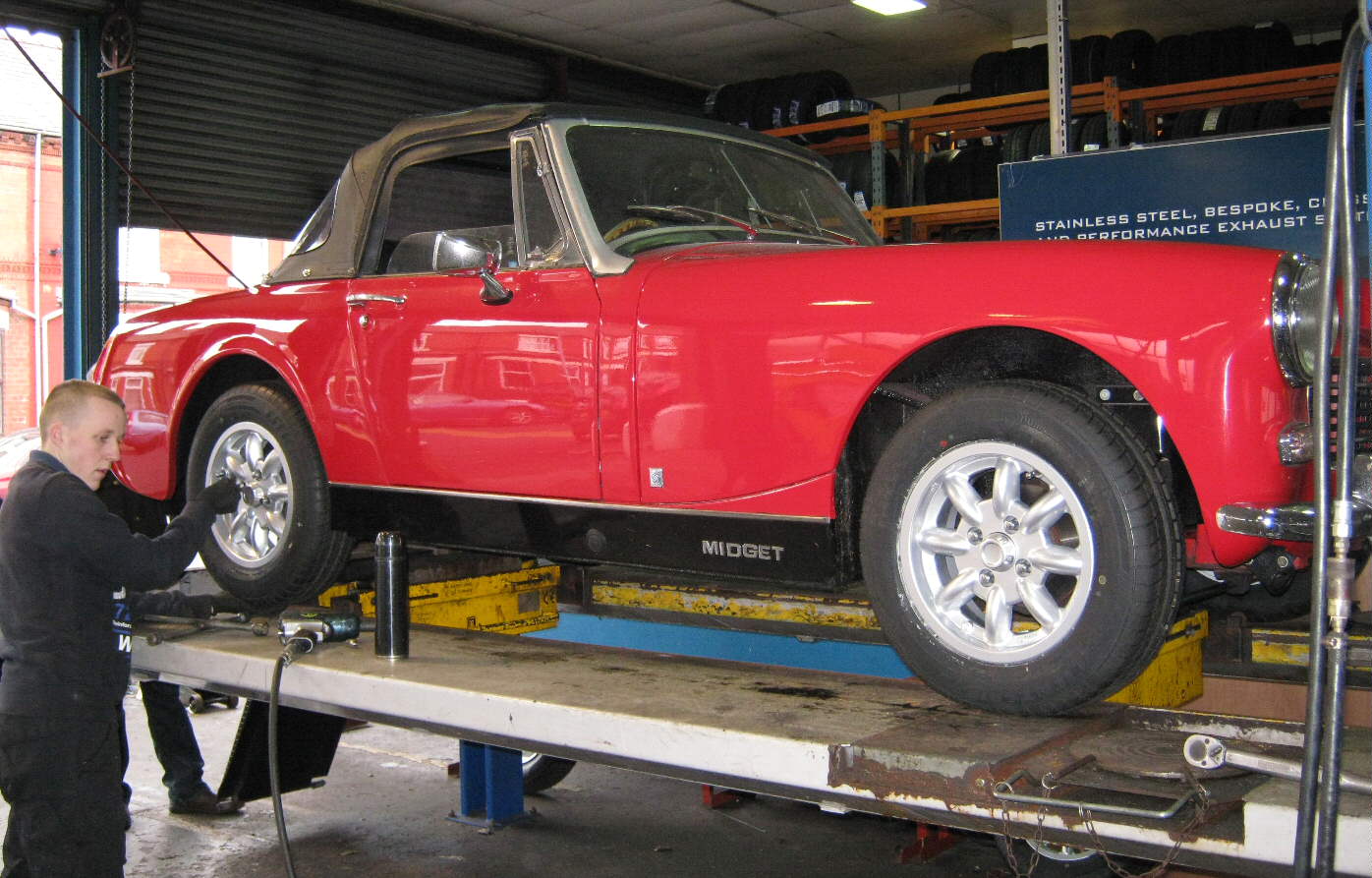

5x13" Minilite + 165/70R13 tyres MG Midget

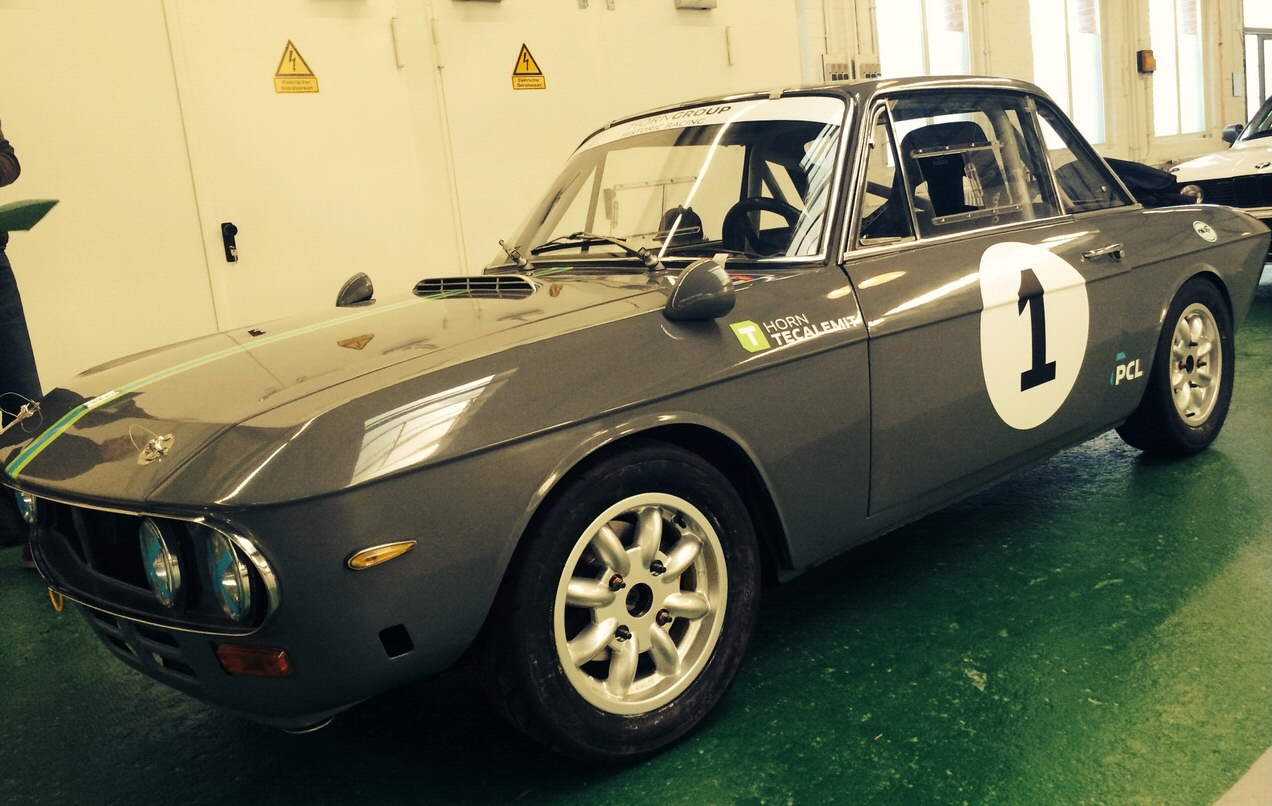

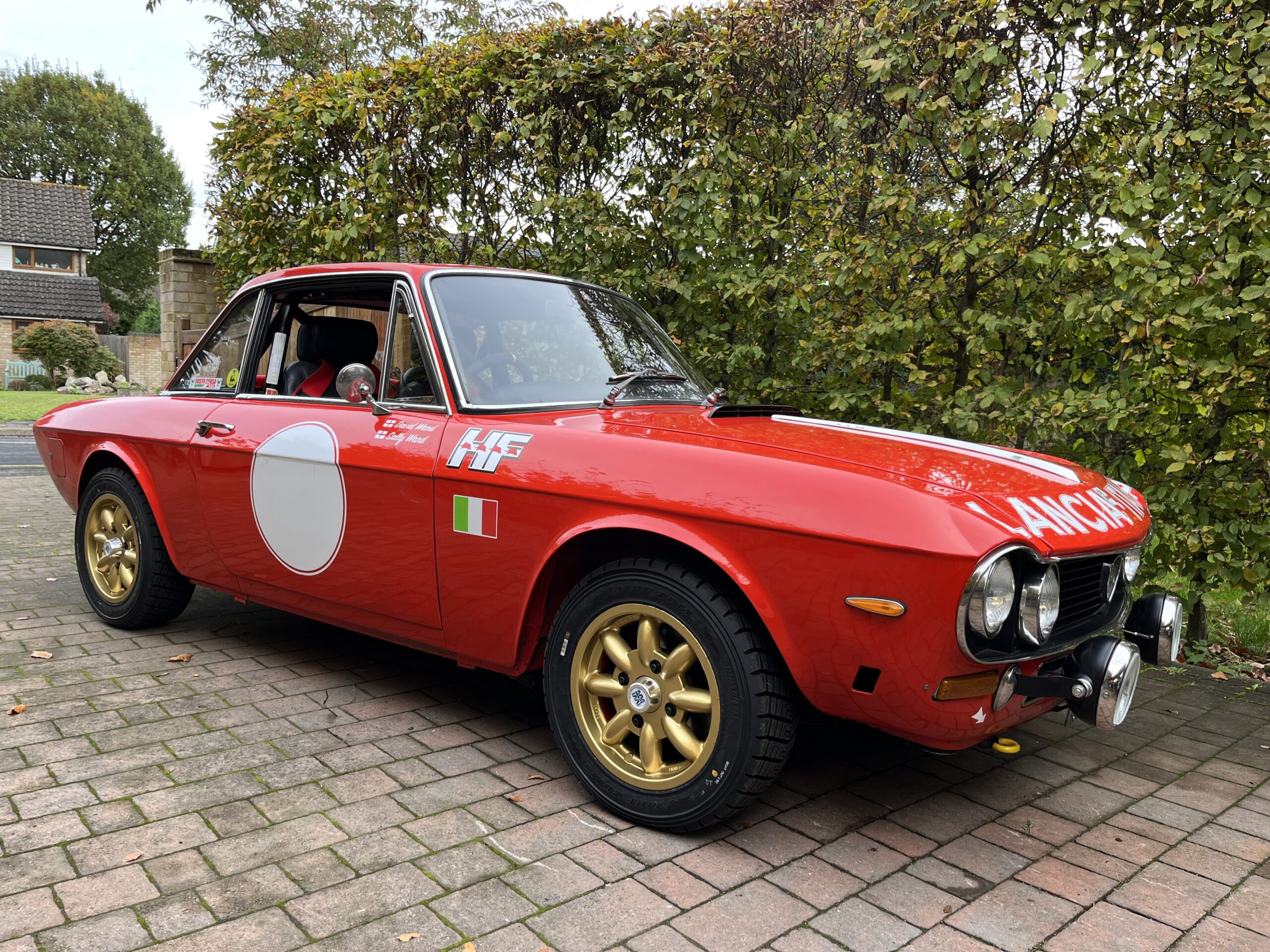

5½x14" Minilite Lancia Fulvia for racing [Germany] 4x130 ET33

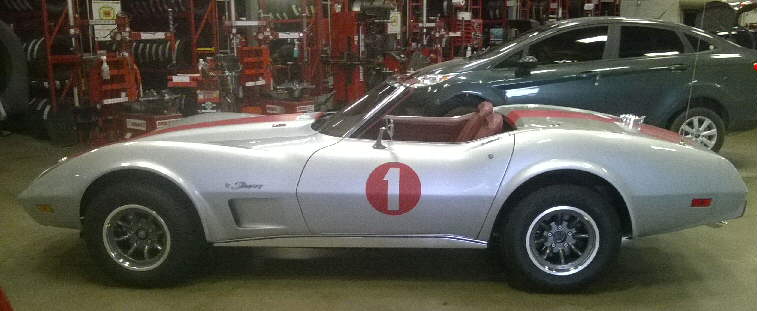

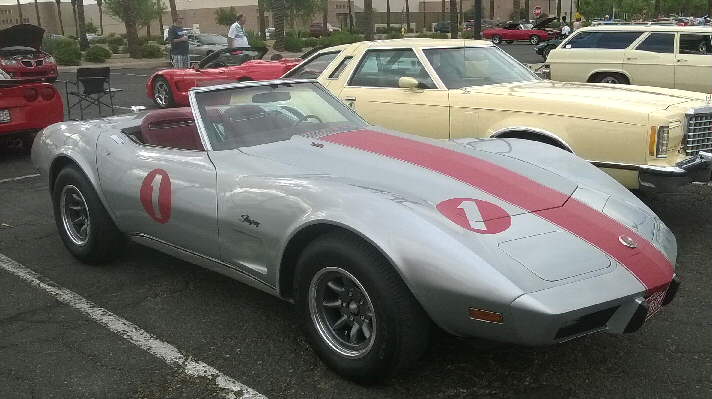

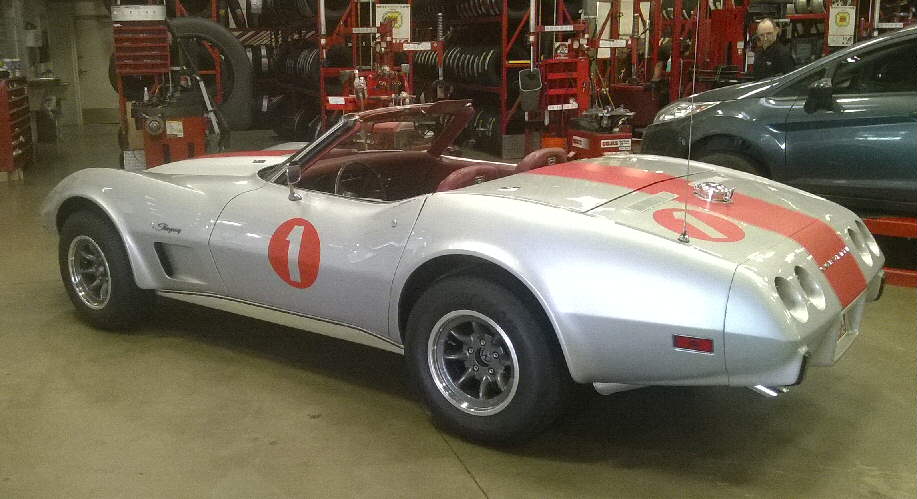

8x15" 5x121 ET-13 Minilite Corvette [USA]
8x15" 5x121 ET-13 Minilite Corvette [USA]
8x15" 5x121 ET-13 Minilite Corvette [USA]

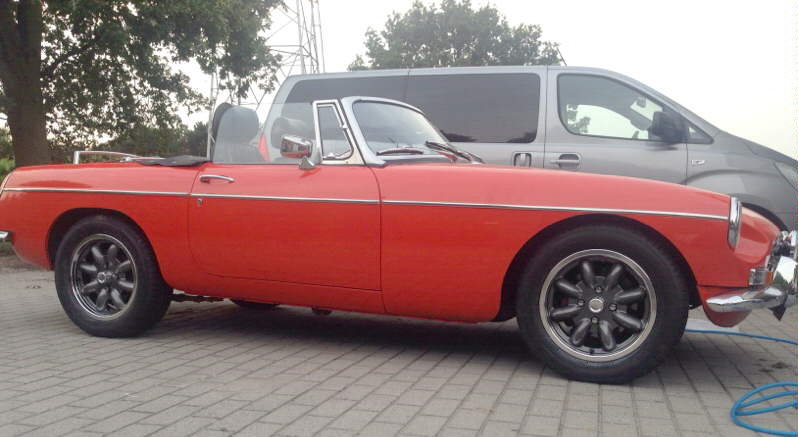

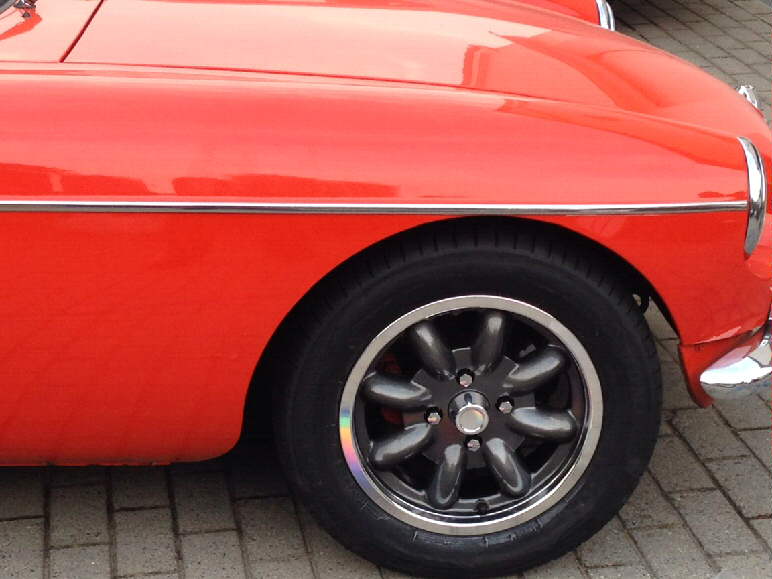

5½x15" MGB Minilites Anthracite+Hilite [Belgium]
5½x15" Minilite MGB Anthracite+Hilite [Belgium]
5x13" Triumph Vitesse + 165.13 tyres

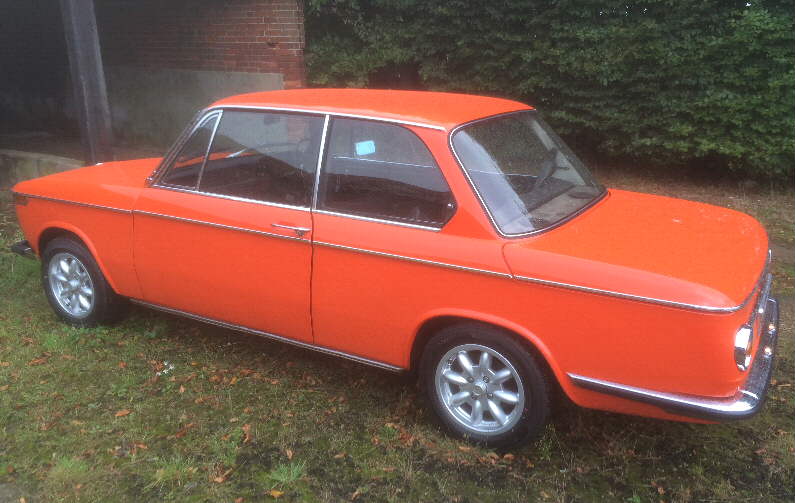

6x14" Minilite ET24 BMW 2002

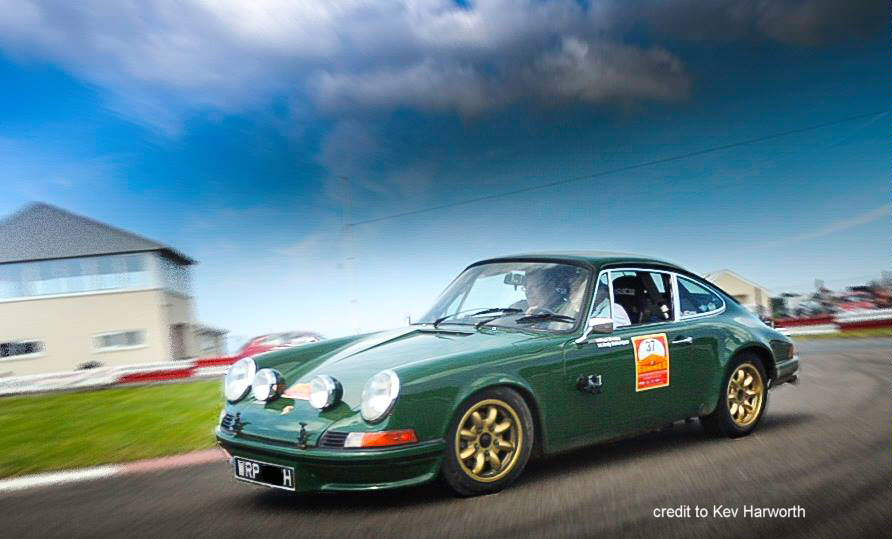

6x15" Minilites on Racing Porsche

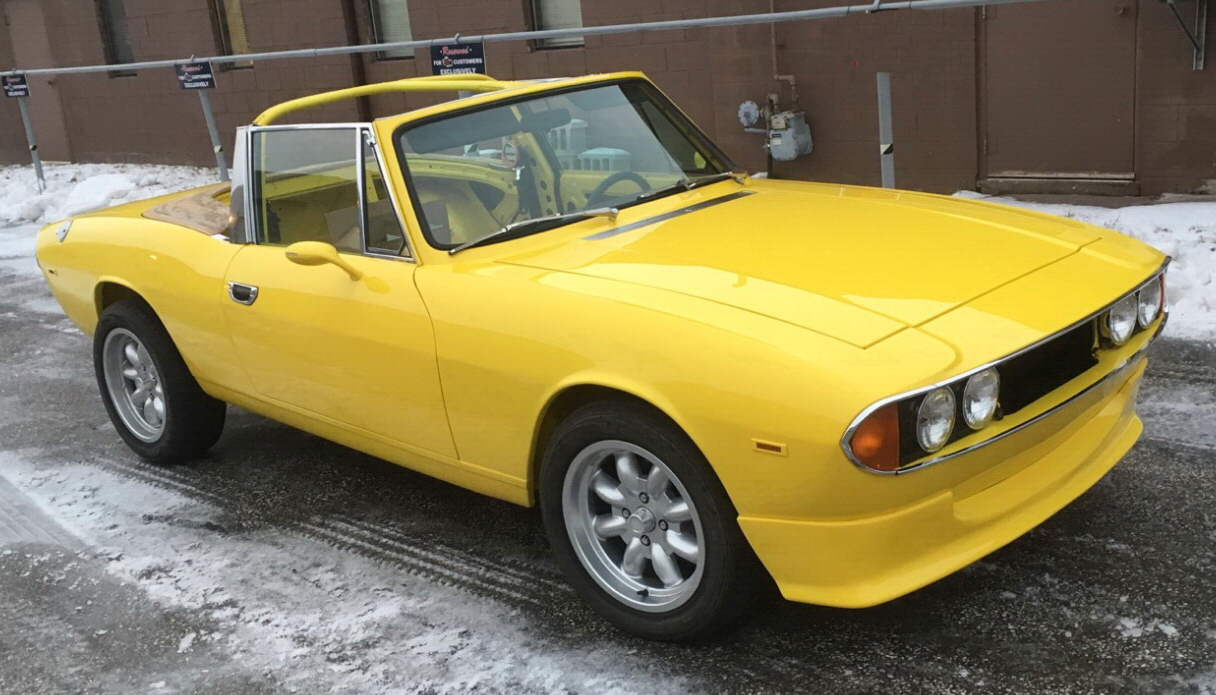

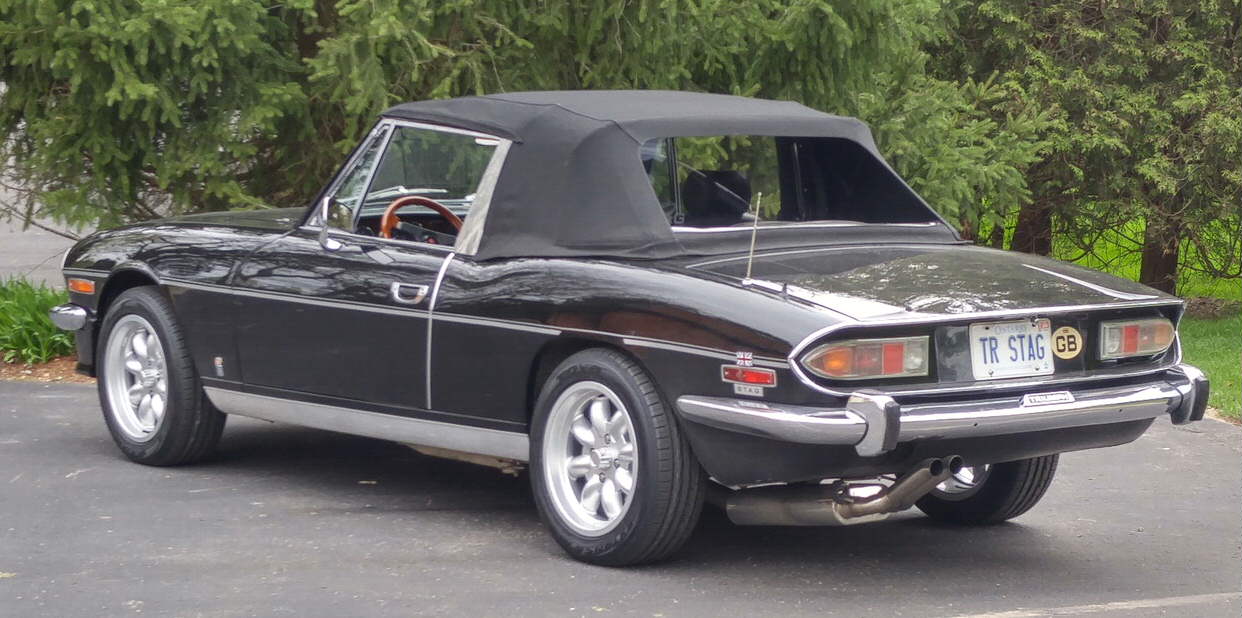

Triumph Stag 1971 7x16" Minilite alloys ET06 in Canada

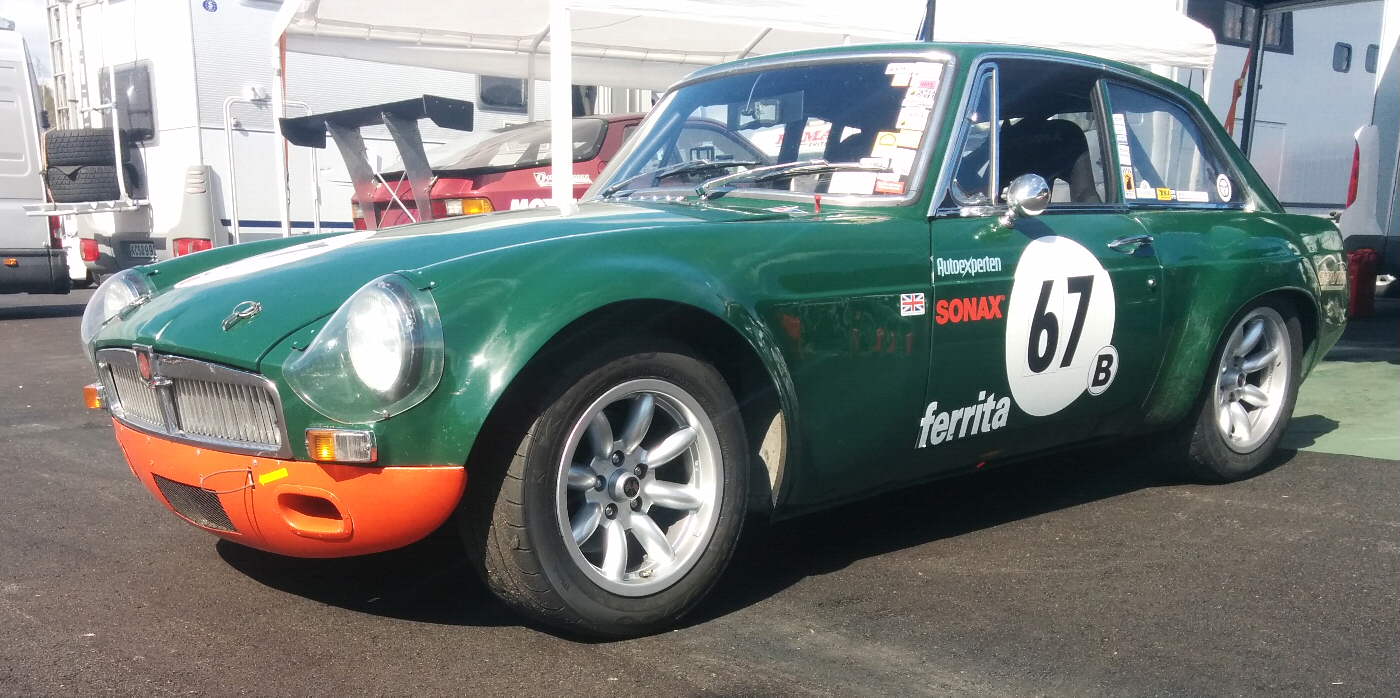

8x15" Minators MGB ET-05 and Volvo axles in Sweden

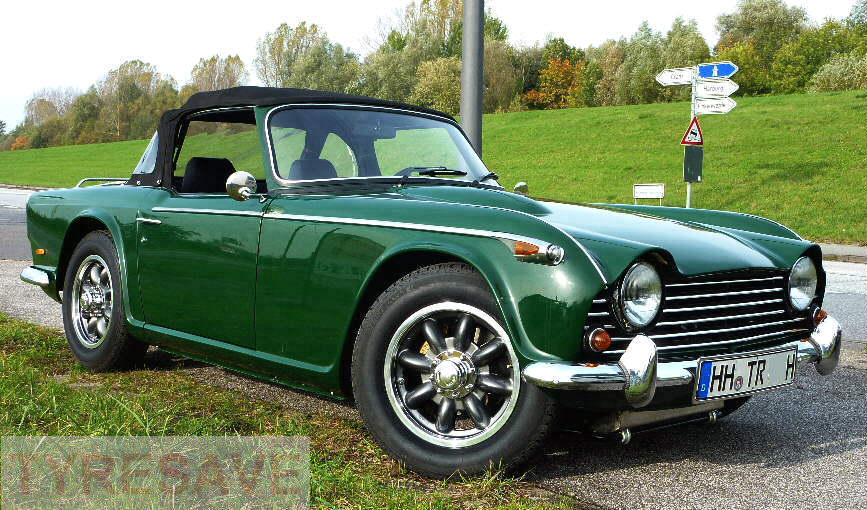

5½x15" Minilites Spline Centre Alloys Anthracite+Polished finish on TR5 [Germany]

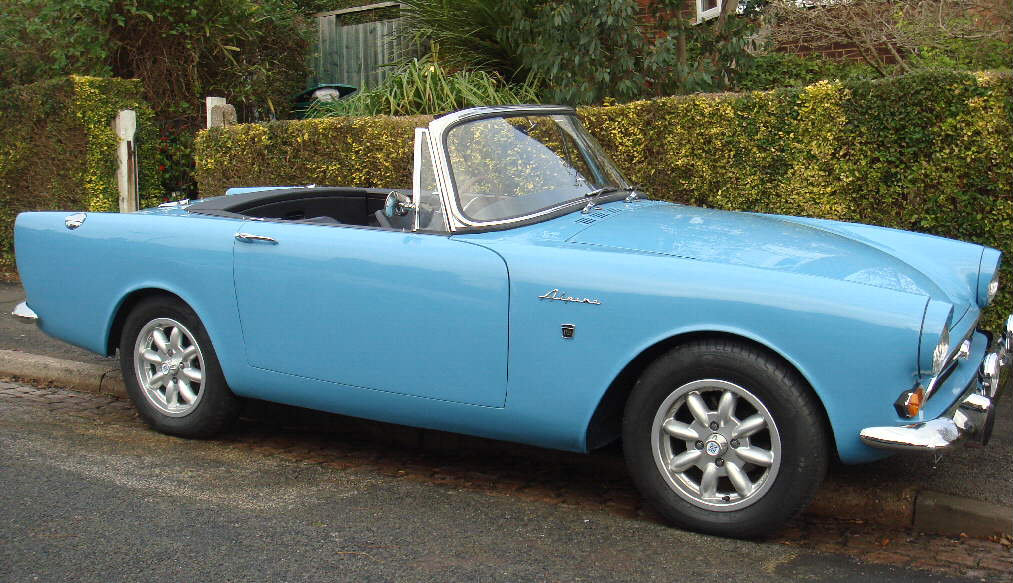

5½x14" Minilite on Sunbeam Alpine + 175/70R14

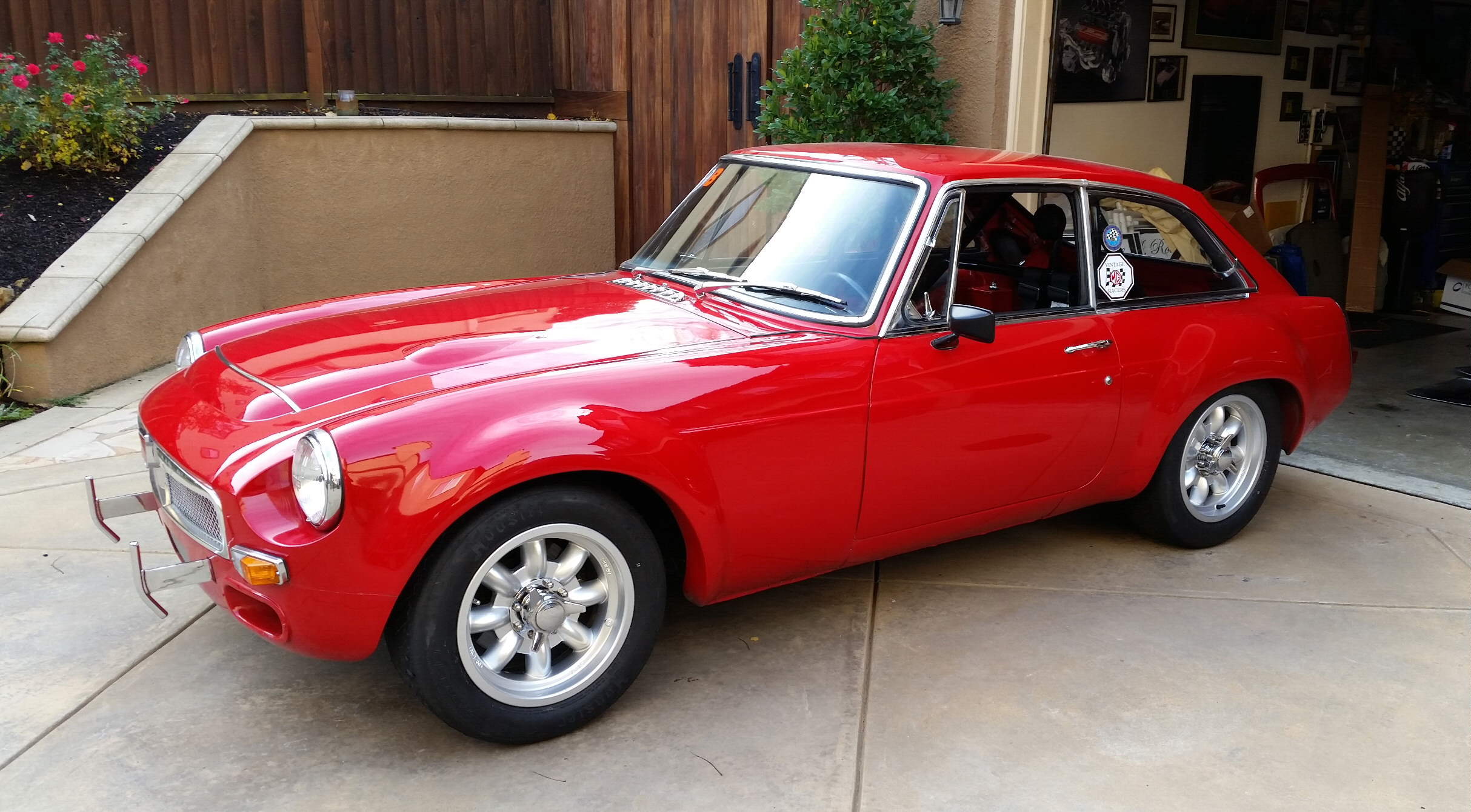

7x15" Minilite Spline Centre Alloys MGC [USA]

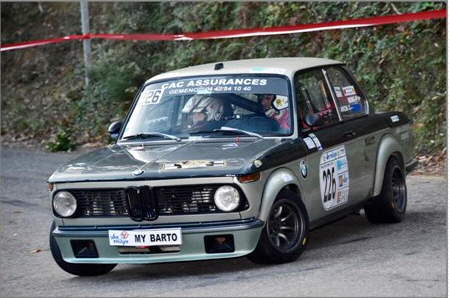

8x13" Minilites ET00 BMW 2002 France

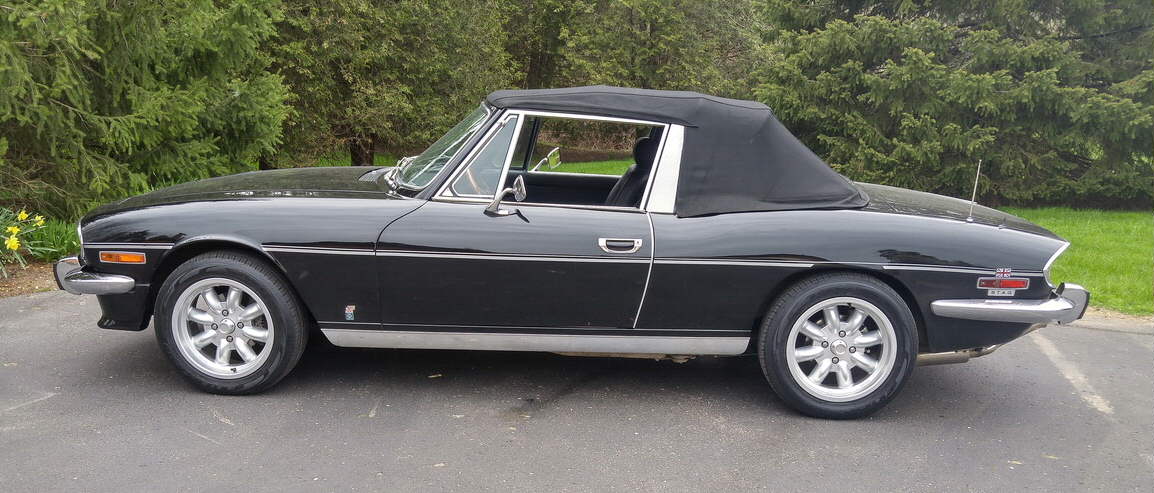

7x16" Minilite ET06 Triumph Stag [Canada]
7x16" Minilites ET06 Triumph Stag [Canada]
5½x15" ET22 Minilites in Black on TR7
5½x15" ET22 Minilites in Black on TR7
5½x14" Peg Drive Lotus Elan + 185/60R14 Nankang
5½x14" Peg DRive Lotus Elan + 185/60R14 Nankang
5½x14" Peg DRive Lotus Elan + 185/60R14 Nankang

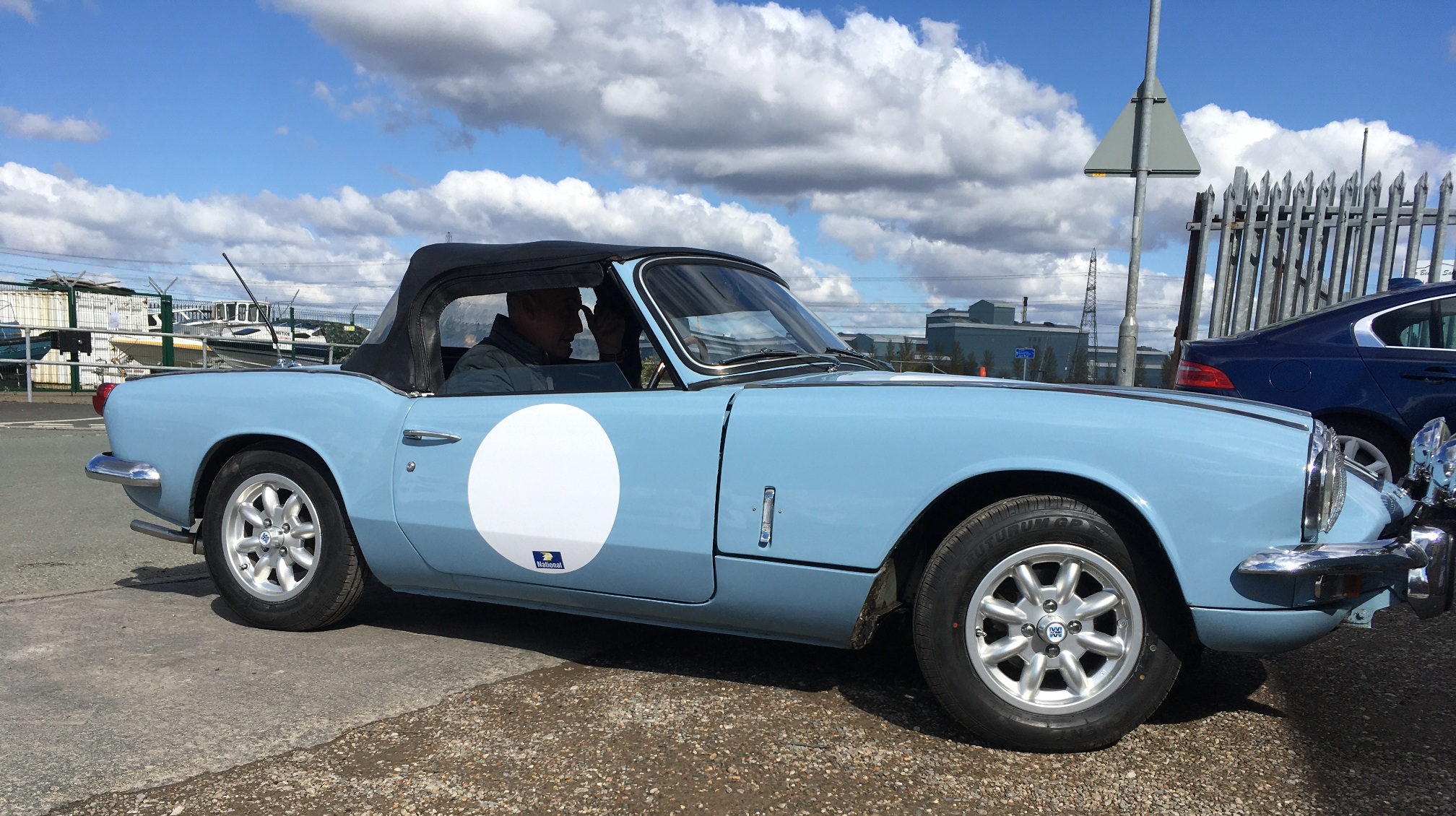

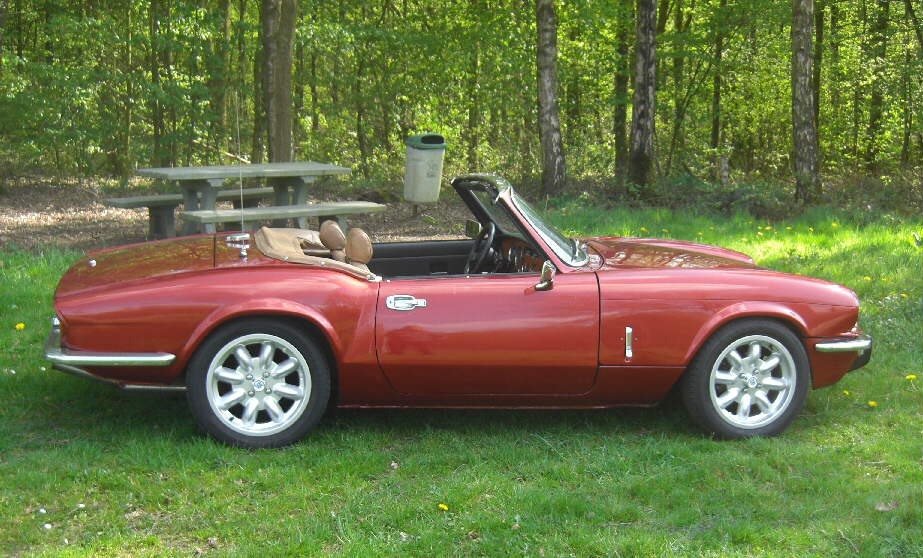

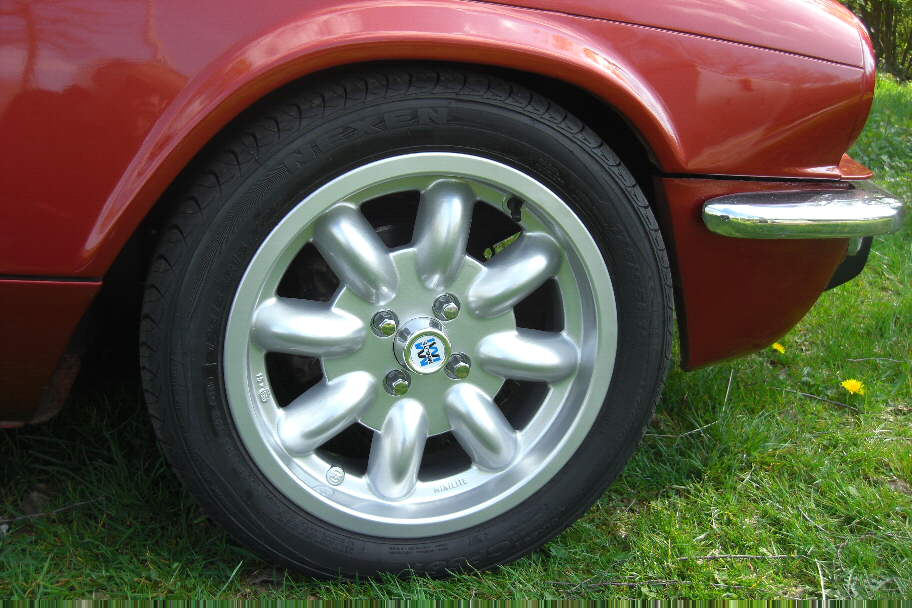

5½x15" Minilite on Triumph Spitfire
5½x15" MInilite on Triumph Spitfire

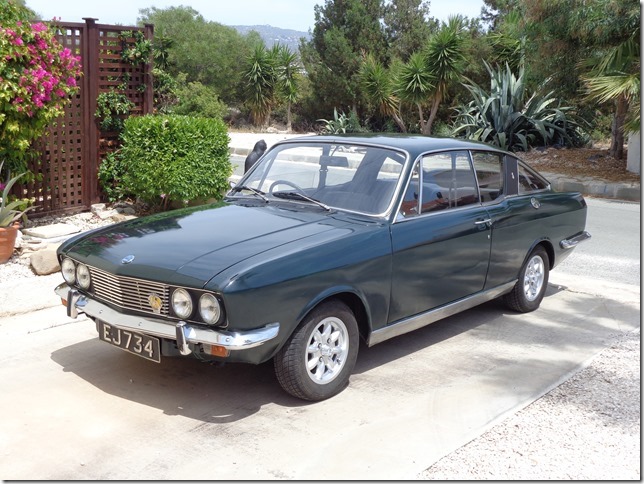

Minilite 5x13" Alloy on Sunbeam Rapier [Cyprus]

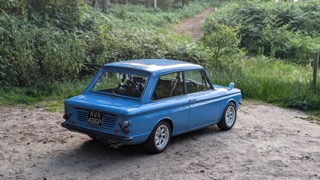

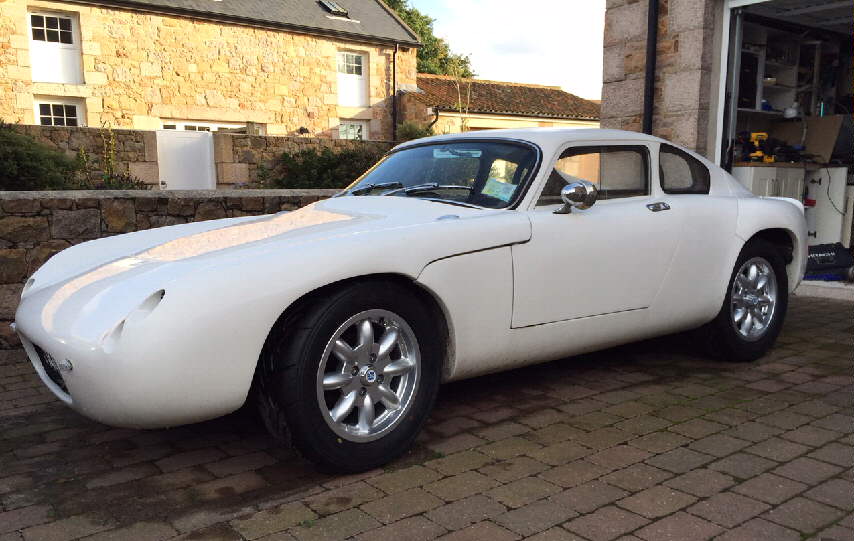

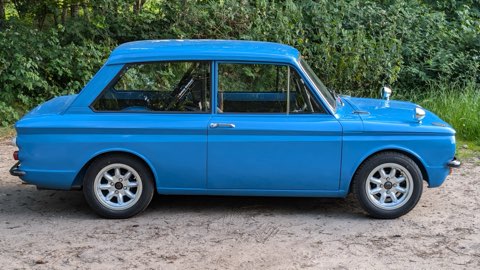

Davrian with 6x14 Minilites (Hillman Imp chassis)

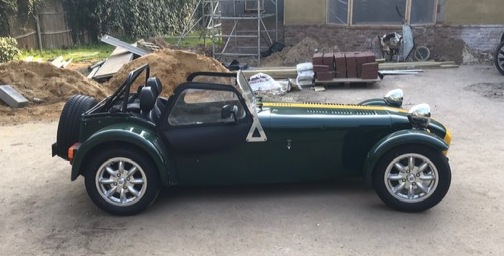

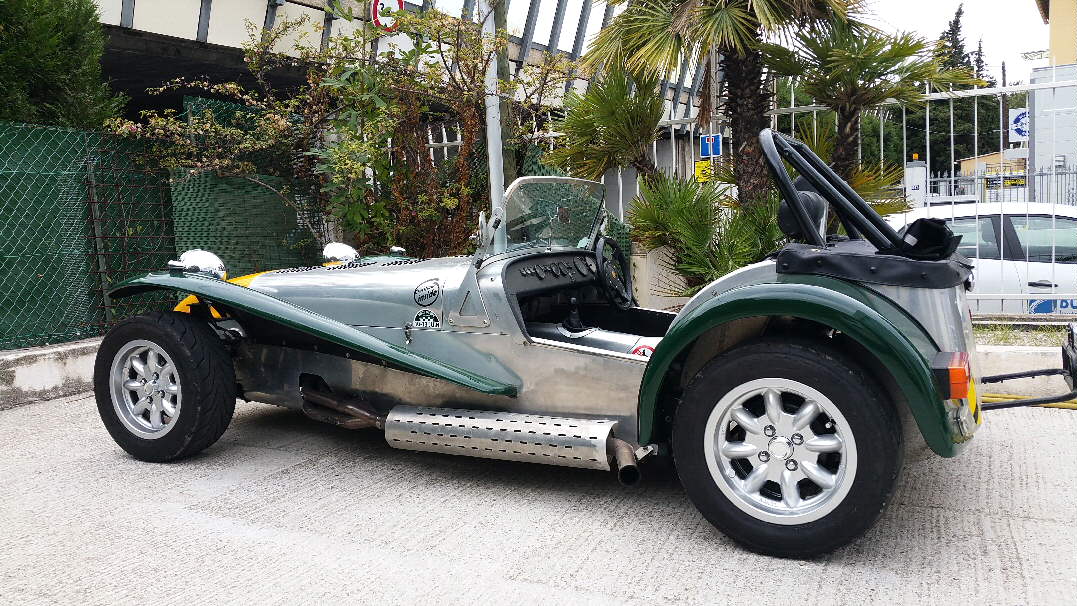

Caterham with 6x13" Minilite {France]

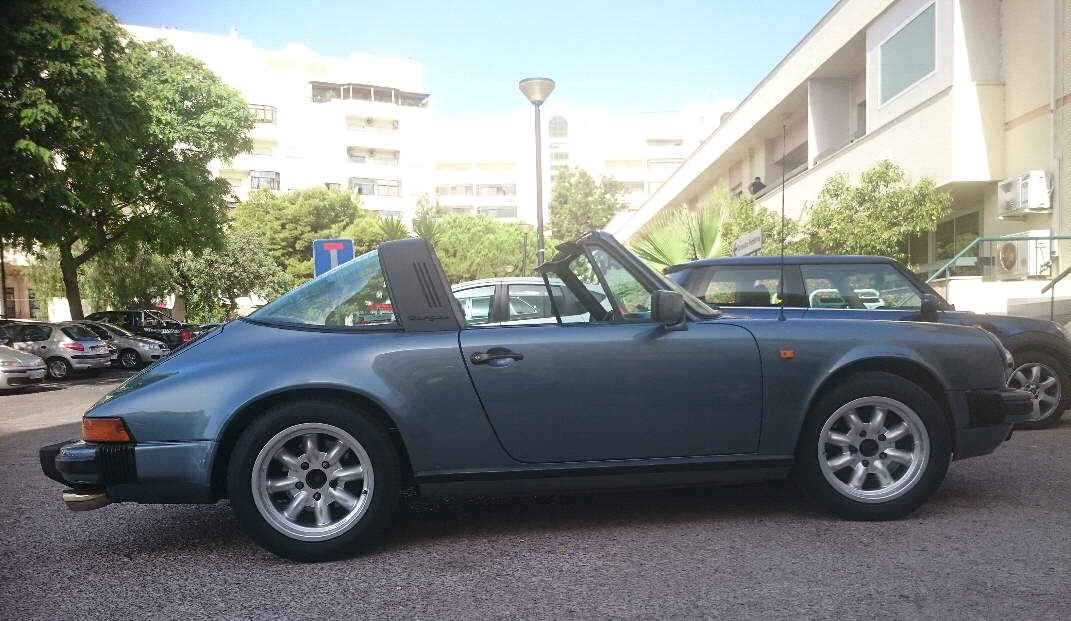

Minilite Alloys on Porsche 911 7x16" front 8x16" rear (in Portugal)

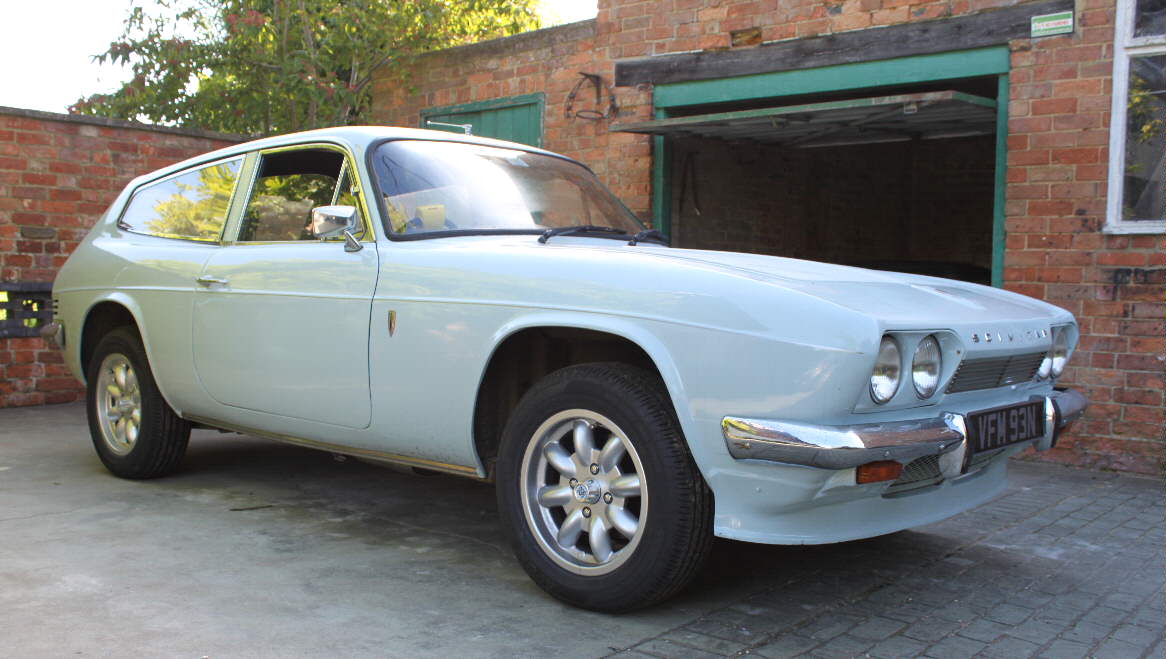

15" genuine Minilite alloys Reliant Scimitar with 195/65R15 Avon tyres

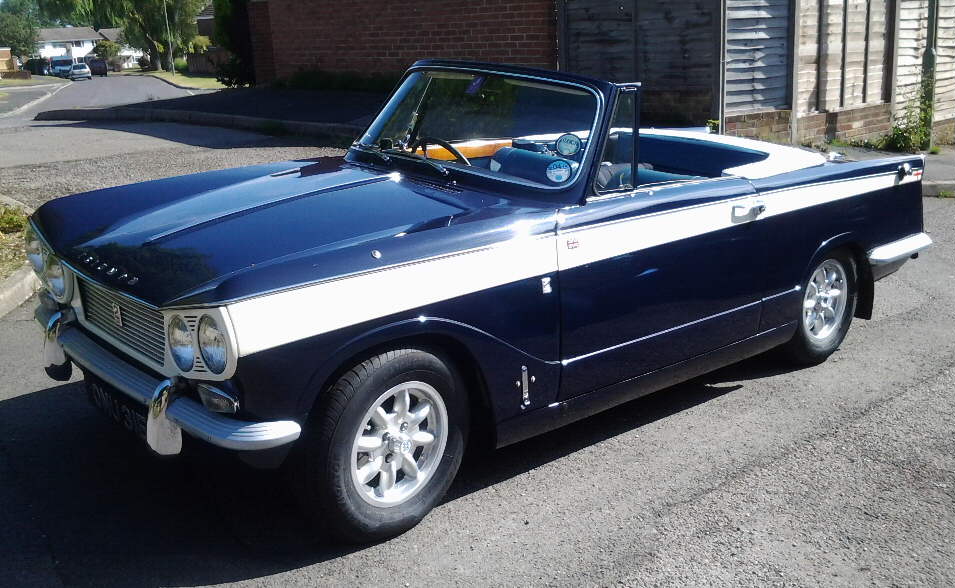

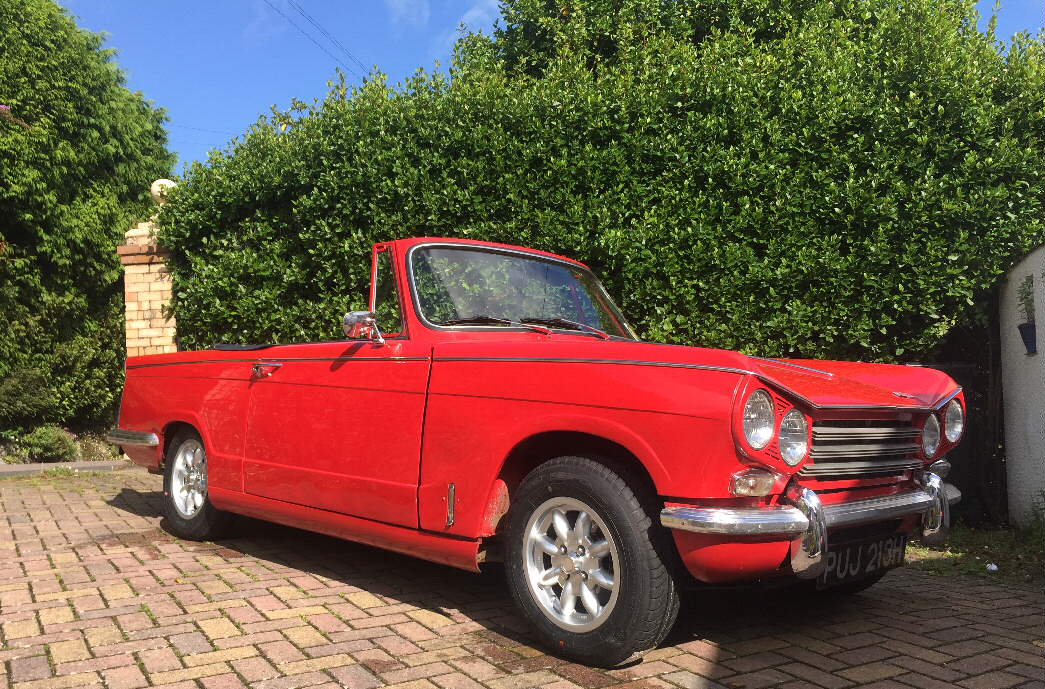

13" Minilite Alloys and 155.13 Dunlop tyres Triumph Vitesse

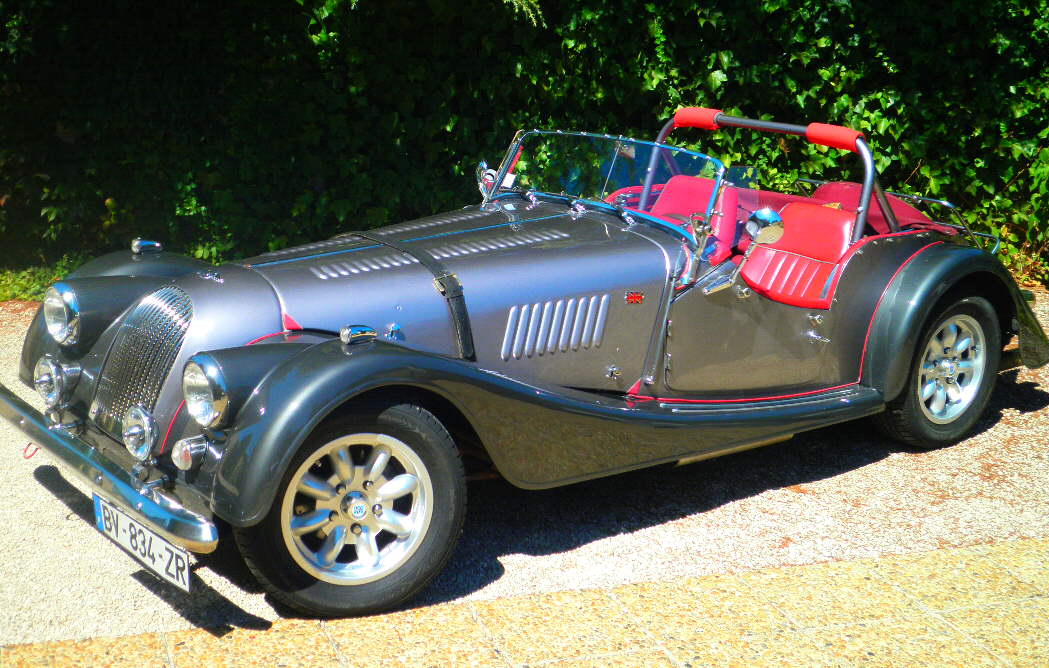

6x15" Minilites on Morgan Plus 8 in France

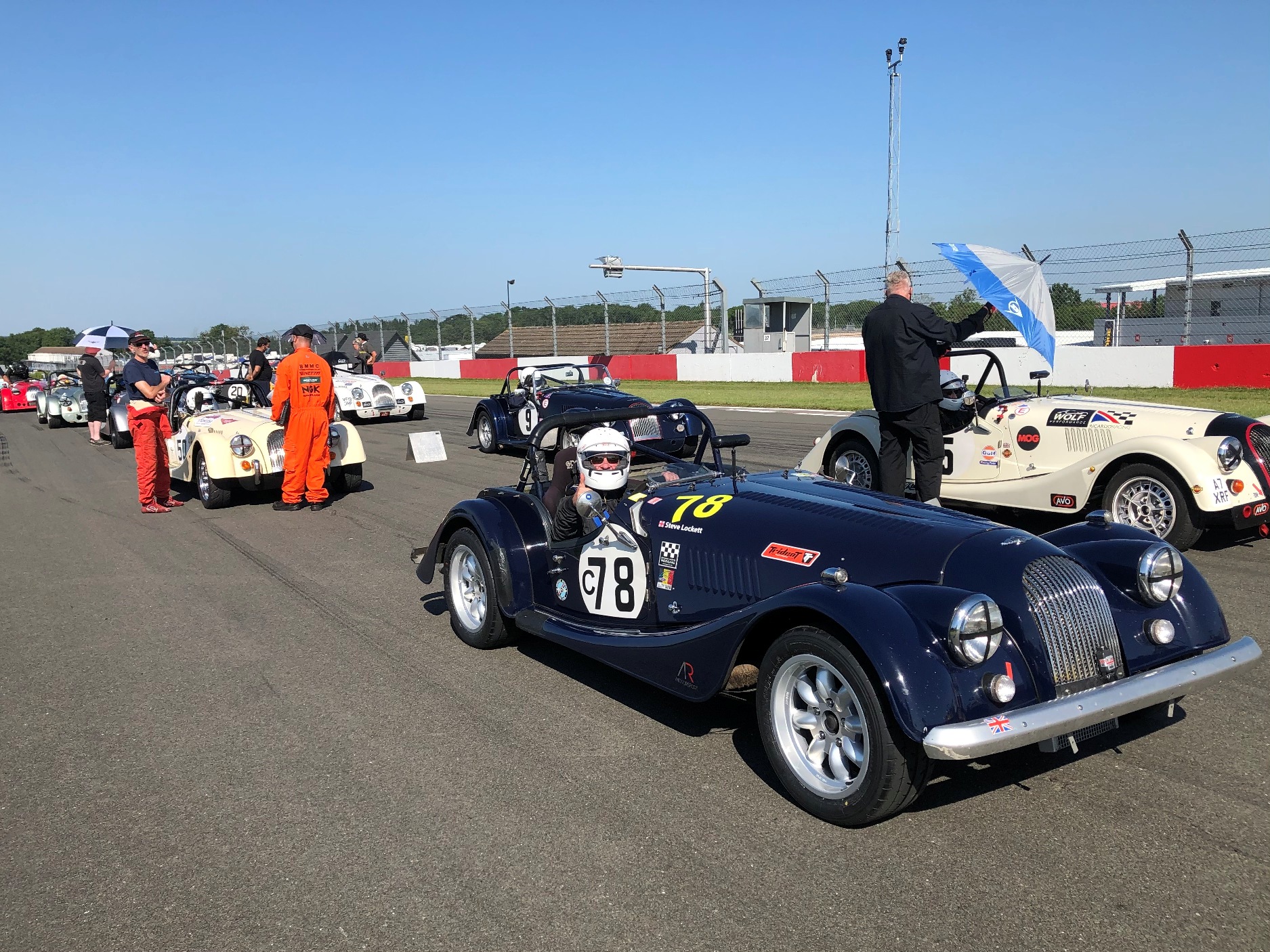

Minilite 6x15" Gloss Black Alloys on Morgan Plus with 195/65R15 Dunlop Blue Response tyres
**

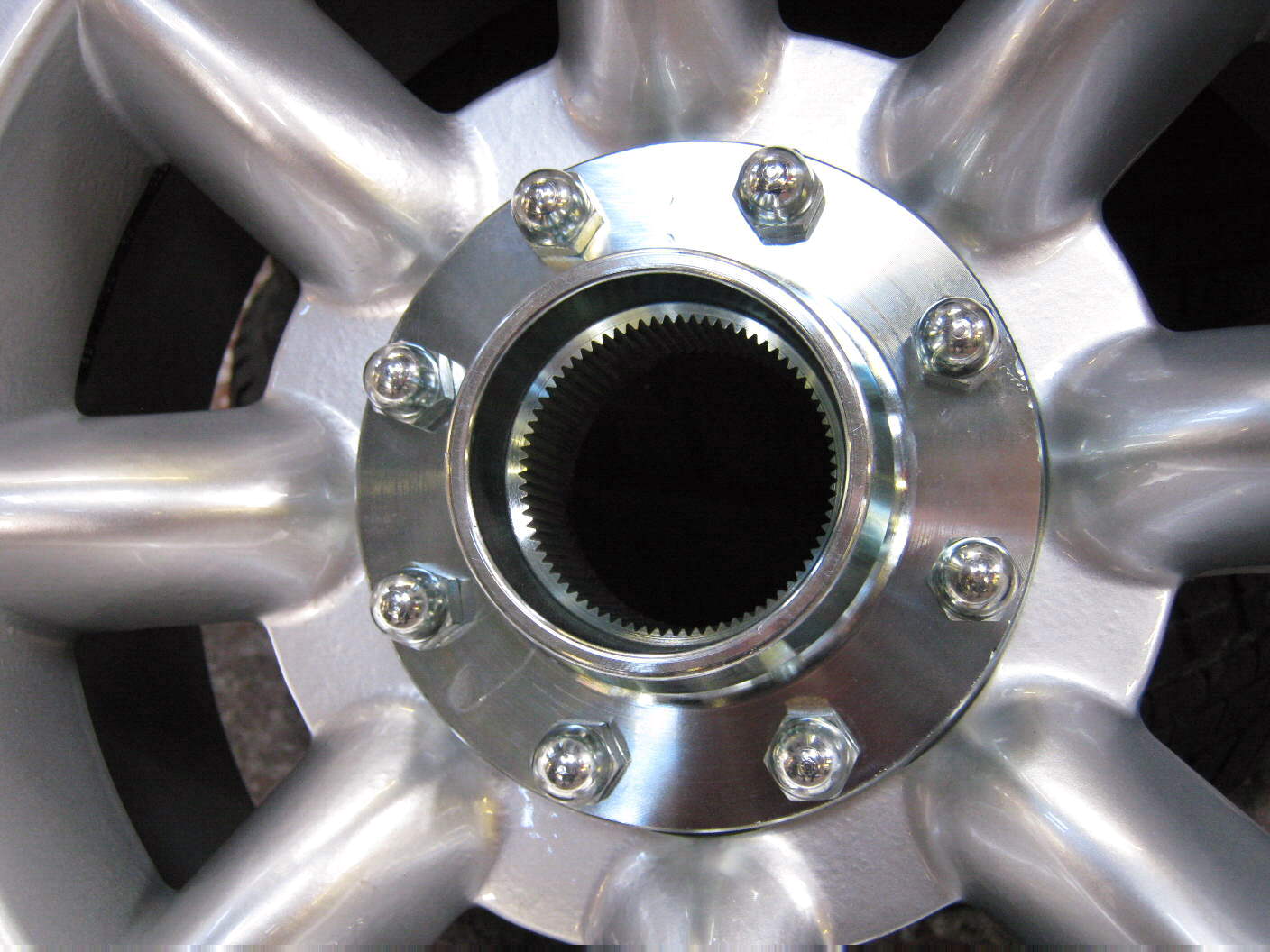

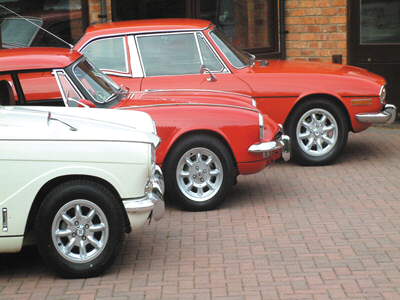

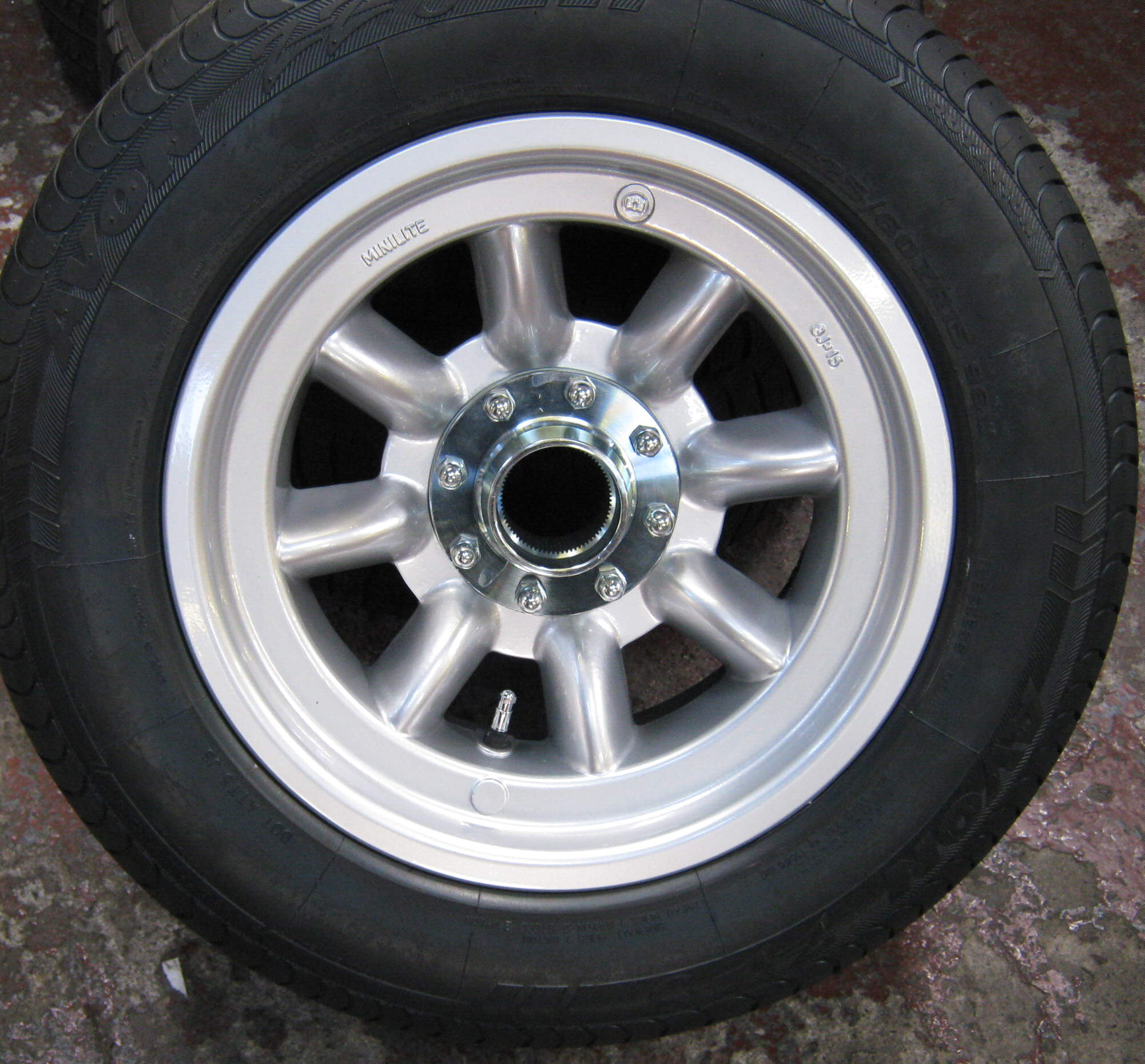

triumph miniliteknockon minilite8x15ko

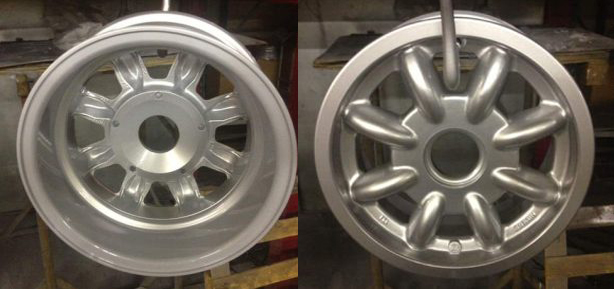

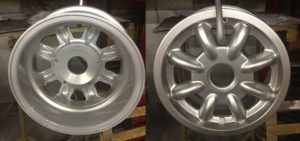

Rear and Front faces of 13″ Peg Drive Alloys for Lotus Elan

minilitec

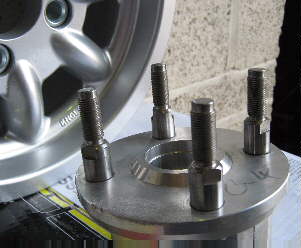

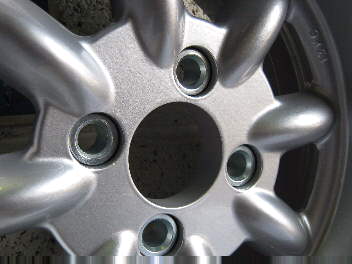

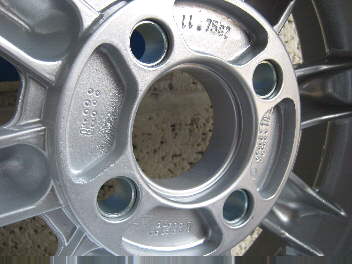

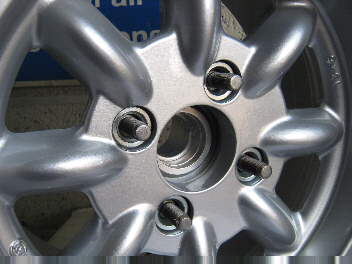

Minilite wheels can be made to Group 4 Rally specification
(See photos below)

miniliteb3 miniliteb4 miniliteb5 miniliteb6

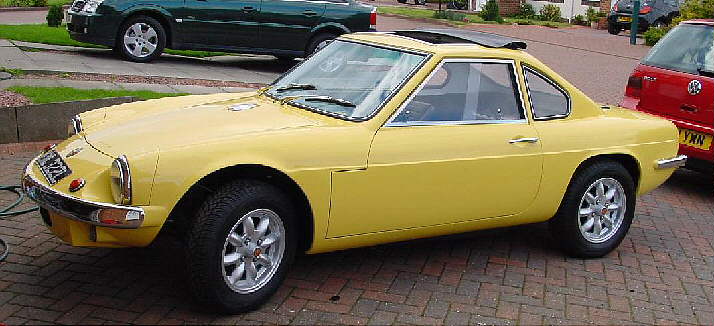

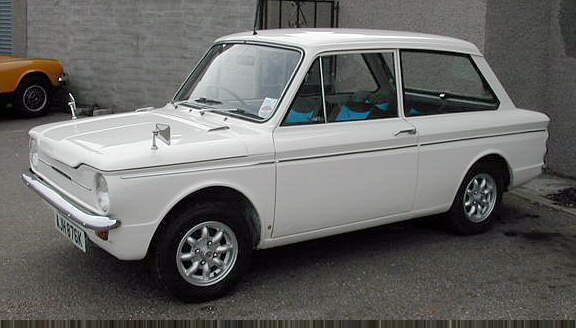

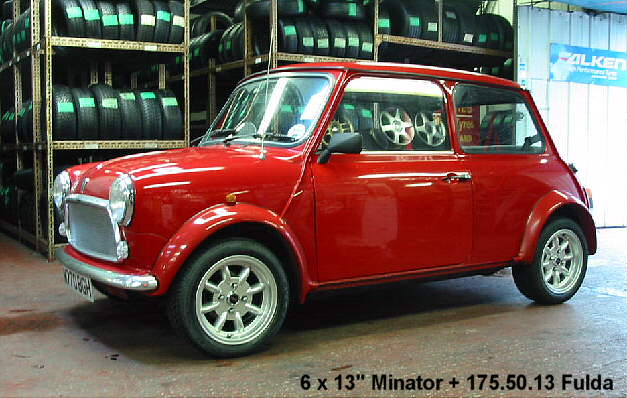

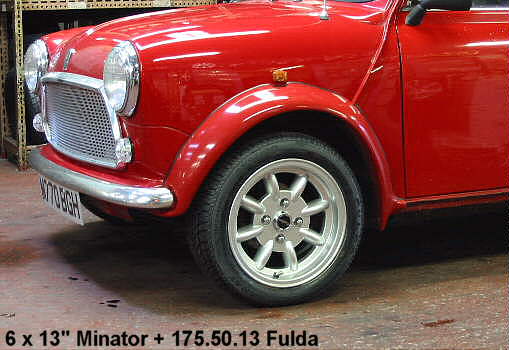

minacar1 minacar2 minacar3 minacar4

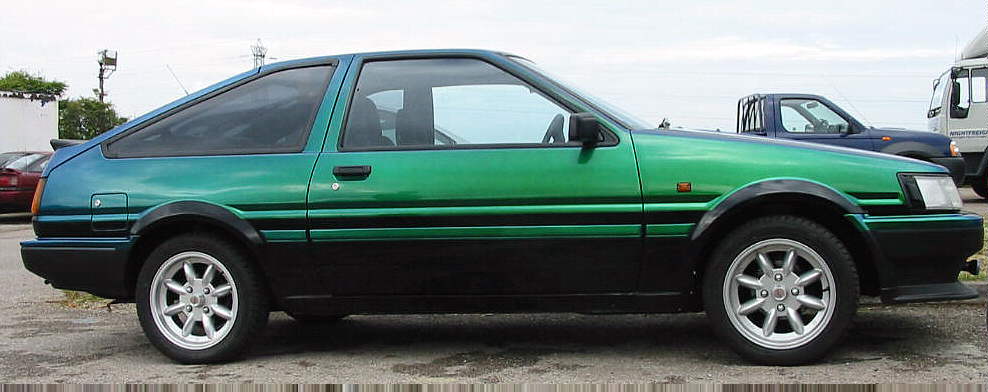

minacar5 minacar6 minacar7 minacar8

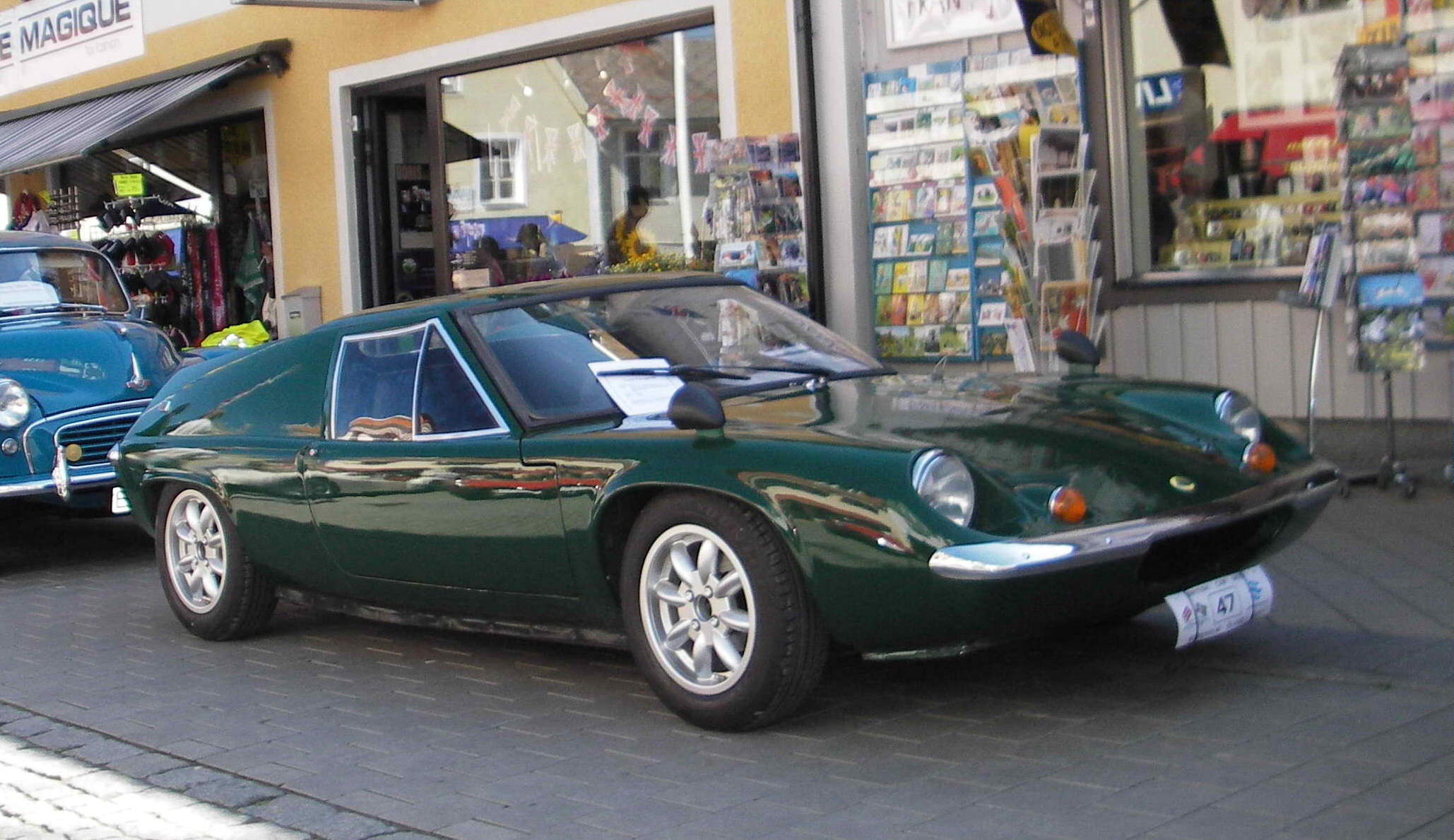

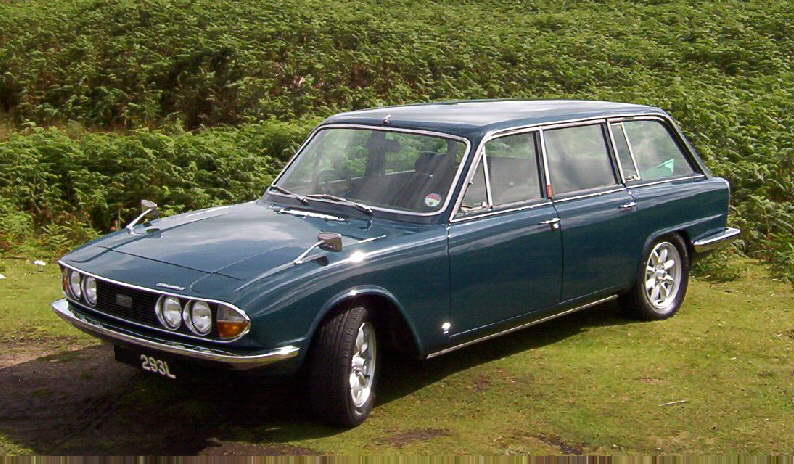

minacr09 minacr11 minacr12 minacr13

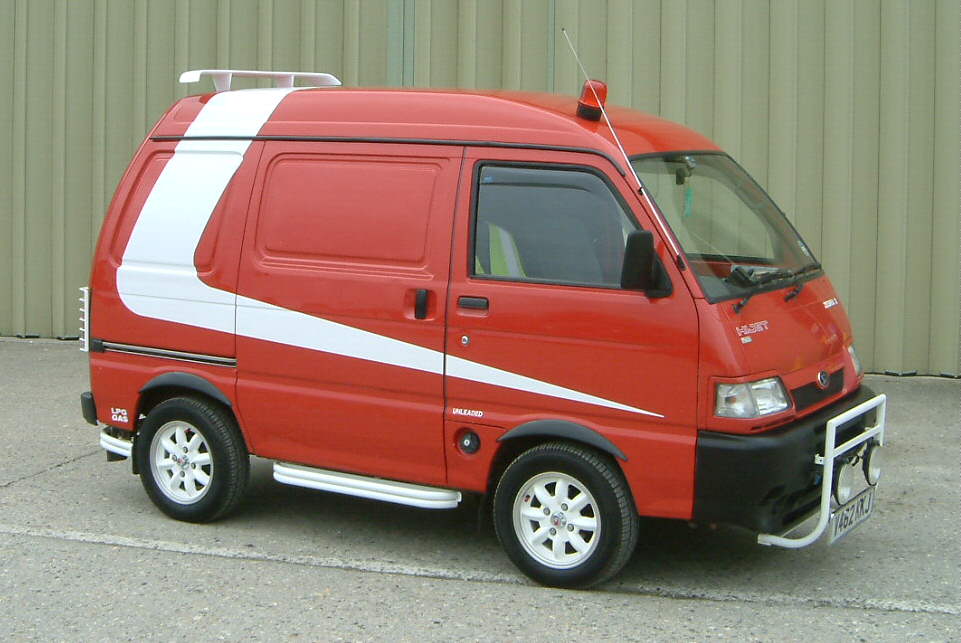

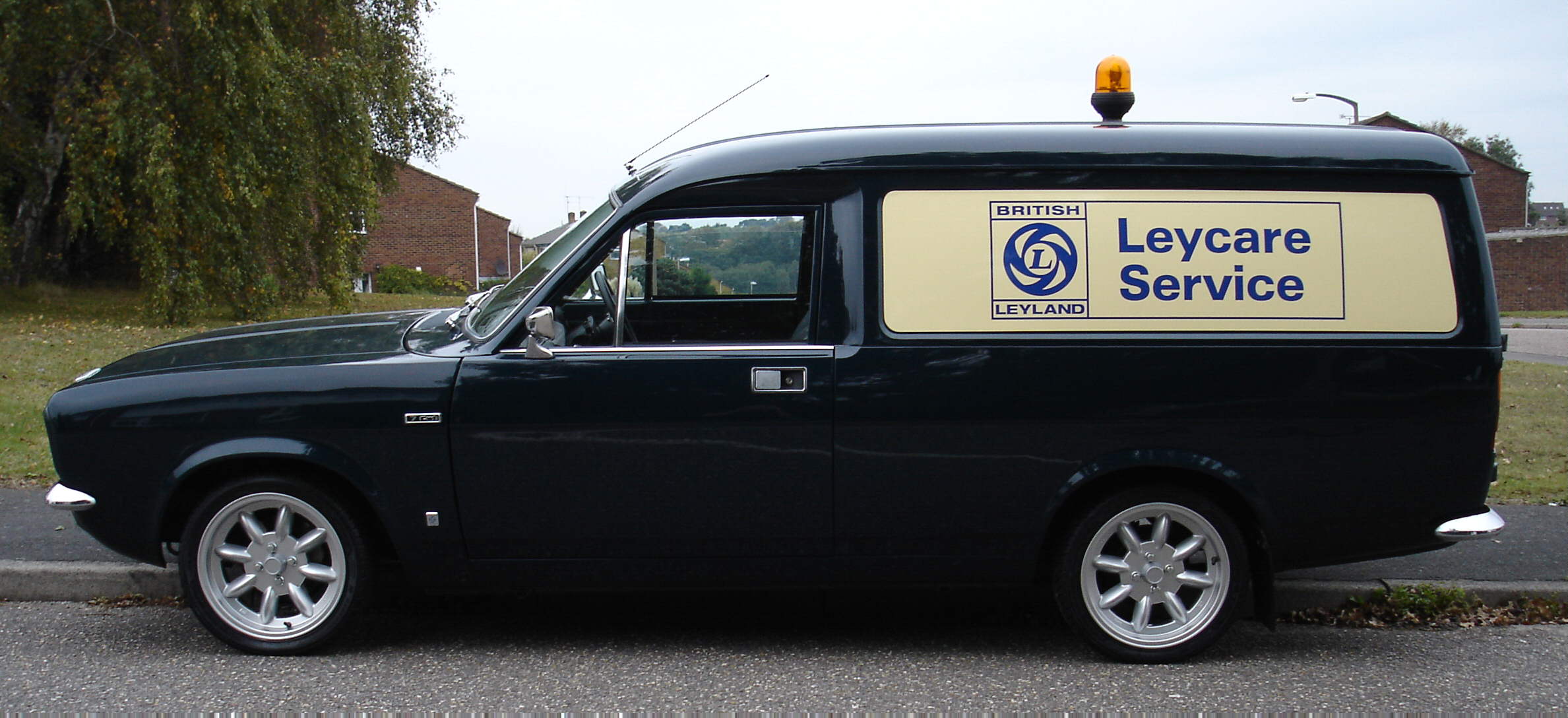

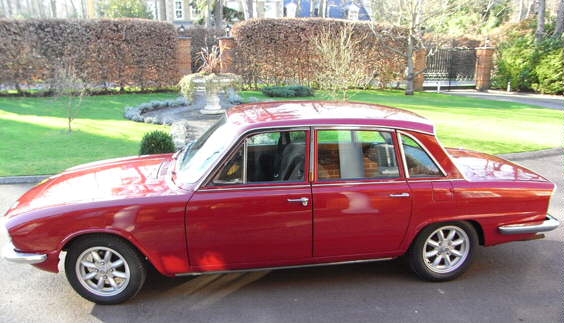

minacr14 minacr15 minacr16 minacr17
minacr18 minacr19
